The V3CS-UK is a silver motorised pop-up socket for kitchen worktops, islands, offices and meeting spaces. A single touch raises or retracts the unit, keeping two UK sockets, USB charging and wireless charging close at hand.

  • 2 × UK sockets, 1 × USB-A and 1 × USB-C
  • USB-A: 5V/2A; USB-C: 5V/3A
  • Wireless charging up to 10W
  • 95mm installation opening (±3mm)
  • IP54 only when fully closed; IP20 when open
  • 1.8m lead with fitted UK plug

Read the supplied instructions before installation and use. Keep liquids away from exposed sockets and USB ports, and do not exceed the 13A / 3,000W total rating.

V3CS-UK

View full details

V3CS at a glance

Motorised power that retracts into a clean, uncluttered surface.

The V3CS-UK is a silver top ring, silver body and black sockets motorised pop-up socket with two UK sockets, USB-A, USB-C and wireless charging.

Features

Single-touch motorised lift

Touch the top control to raise or retract the socket.

Power and USB

Two UK sockets, one USB-A port and one USB-C port.

Wireless charging

Charge compatible devices on the top surface at up to 10W.

Installation planning

Plan the installation opening

Plan the installation opening, surface thickness and below-counter space together for this exact regional model.

Allow clear space below

Leave clear space for the full moving body, locking hardware, lead and plug.

Fitted UK plug

Supplied with a 1.8m lead and fitted UK plug. No hardwiring is required for normal installation.

Important: IP54 applies only when the unit is fully closed; it is IP20 when open. Keep liquids away from exposed sockets and USB ports. Do not exceed 13A / 3,000W total.

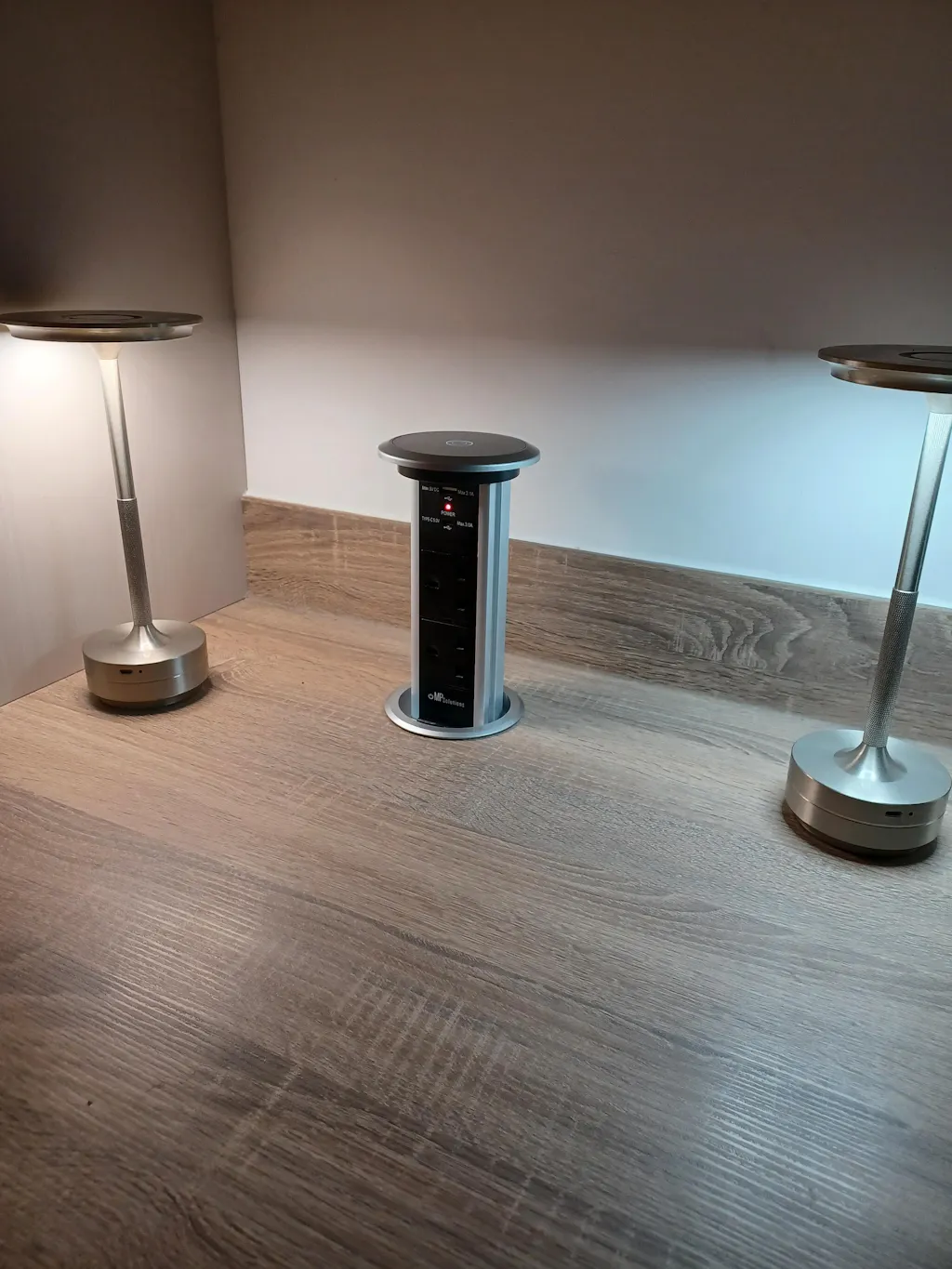

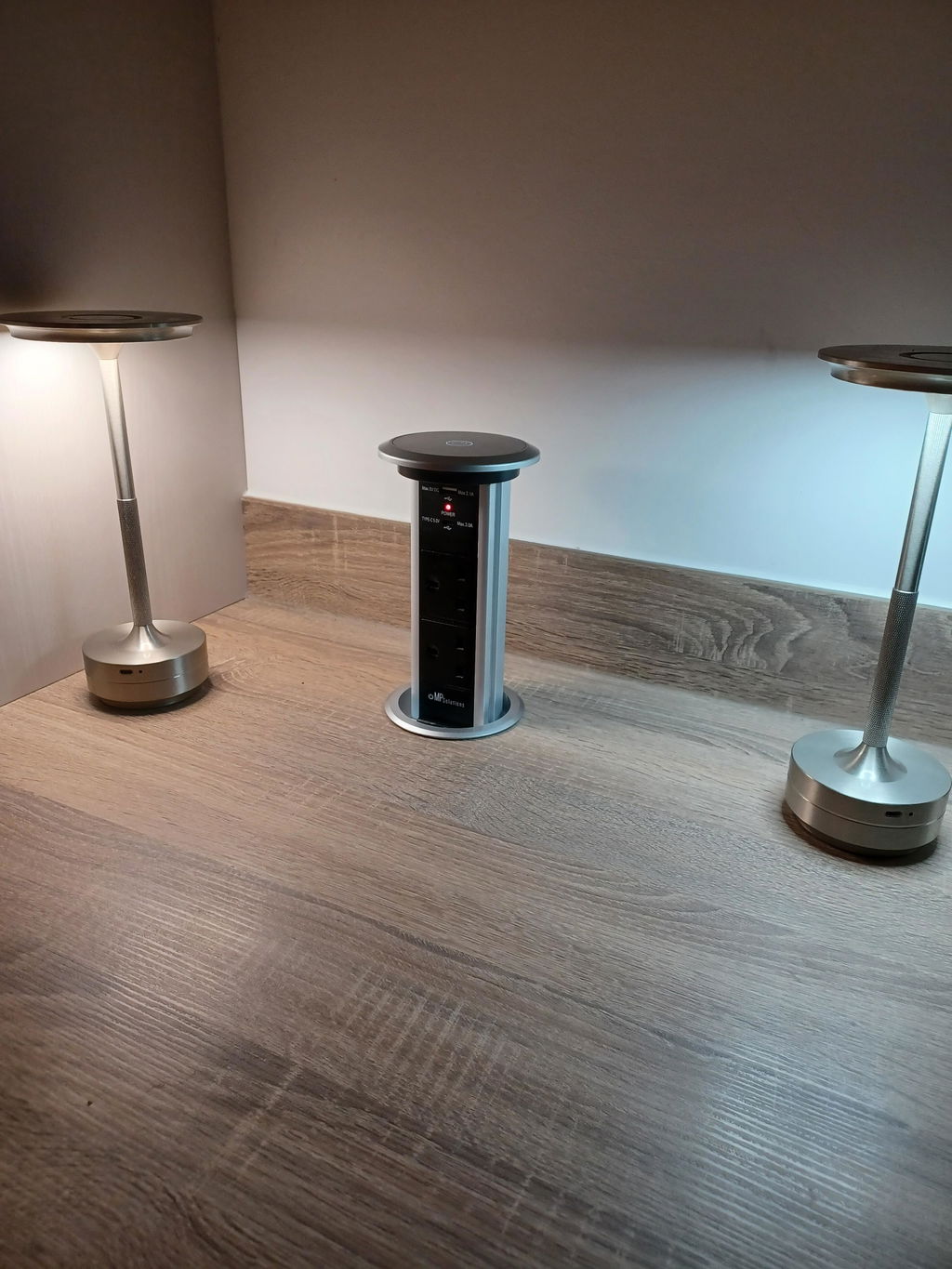

Silver Pop Up Socket UK Kitchen Counter

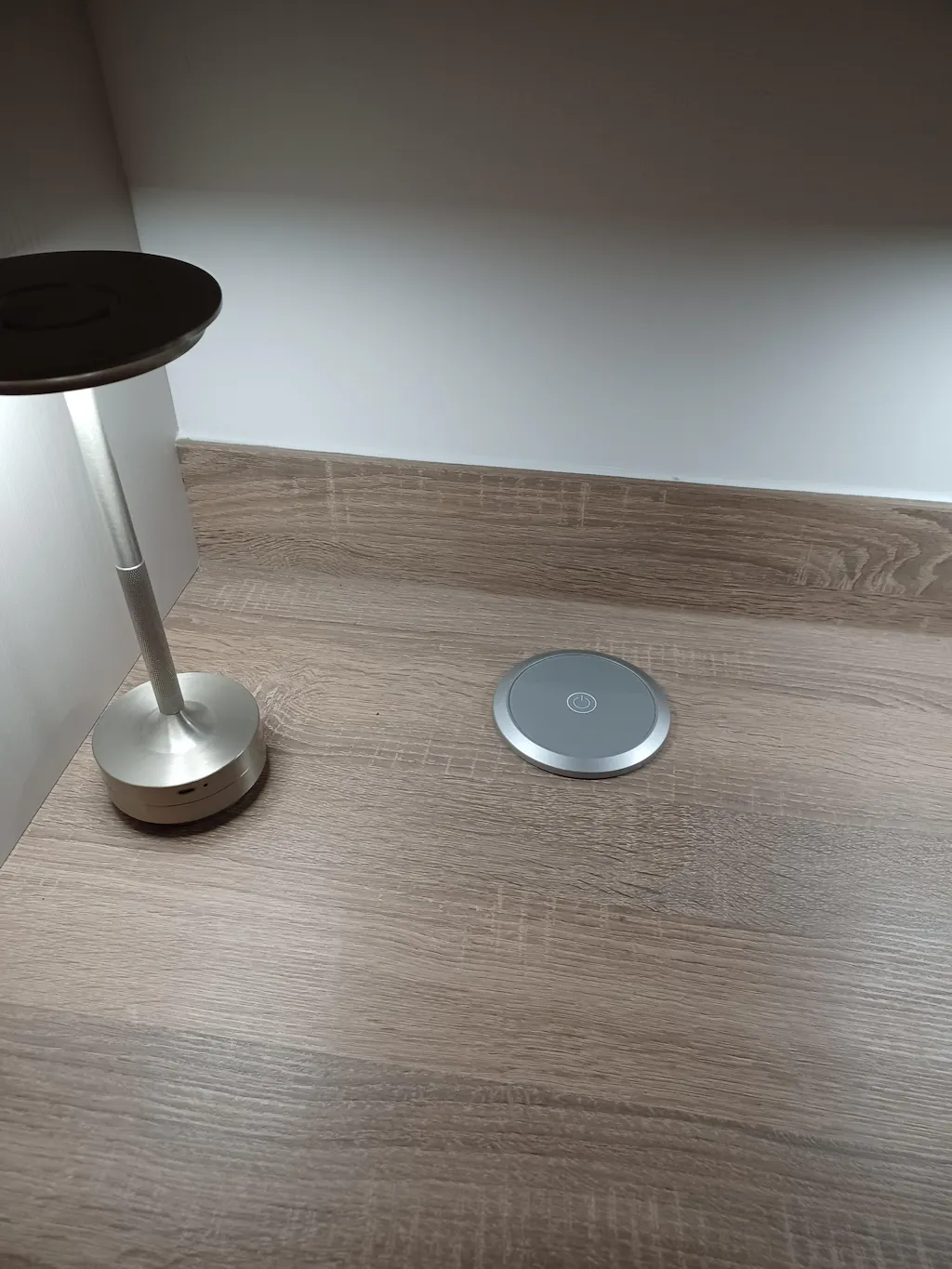

Countertop Flush Seamless Pop Up Socket
Front View Pop Up Socket

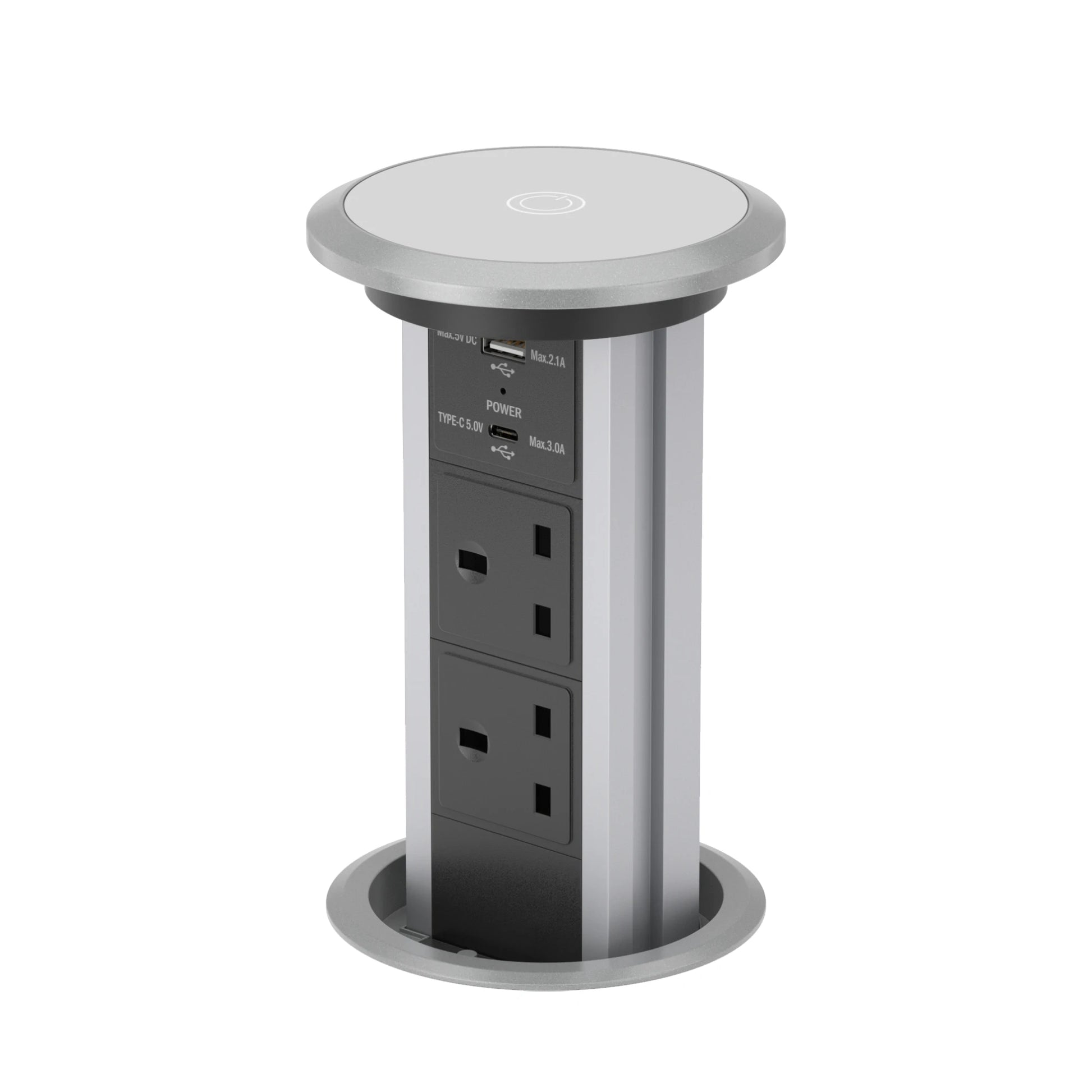

V3CS Primary View Product

The difference between ordinary and extraordinary is that little extra

Pop Up Power Outlet Hole Diagram

95mm installation opening

Fits a 95mm opening (±3mm).

V3CS Spill Sealed Lid Pop Up Socket Waterproof for Kitchens

IP54 when fully closed

Rated IP54 only when fully closed and IP20 when open. Keep liquids away from exposed sockets and USB ports.

V3CS Pop Up Socket Wireless Charging

Wireless charging

Place your mobile phone on the top to charge it.

V3CS Pop Up Electrical Socket

Power and charging

Two UK sockets, one USB-C port (5V/3A), one USB-A port (5V/2A) and wireless charging up to 10W.

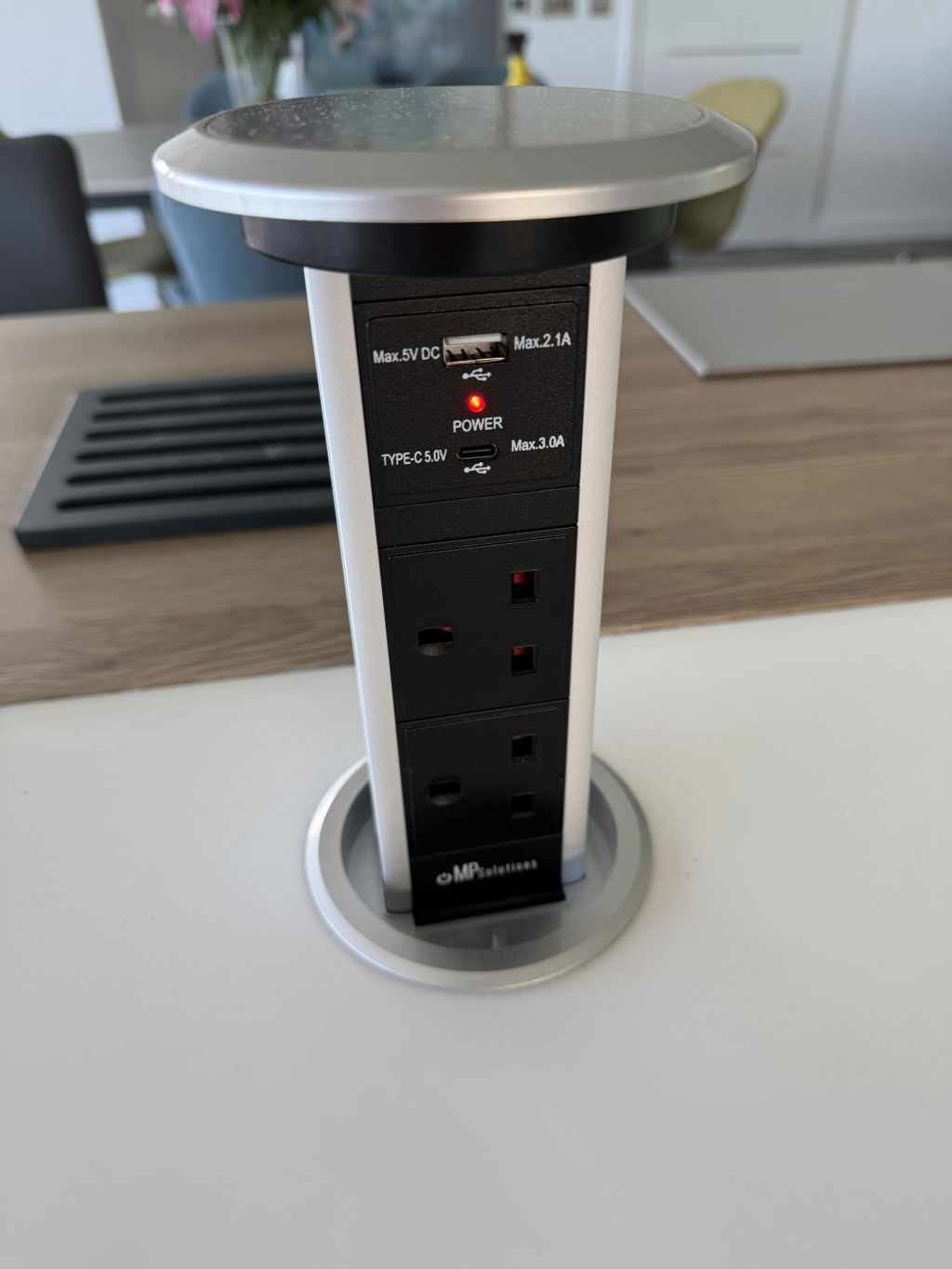

Pop Up Socket with Plug

Plug and play

A single cable plugs into a UK wall socket.

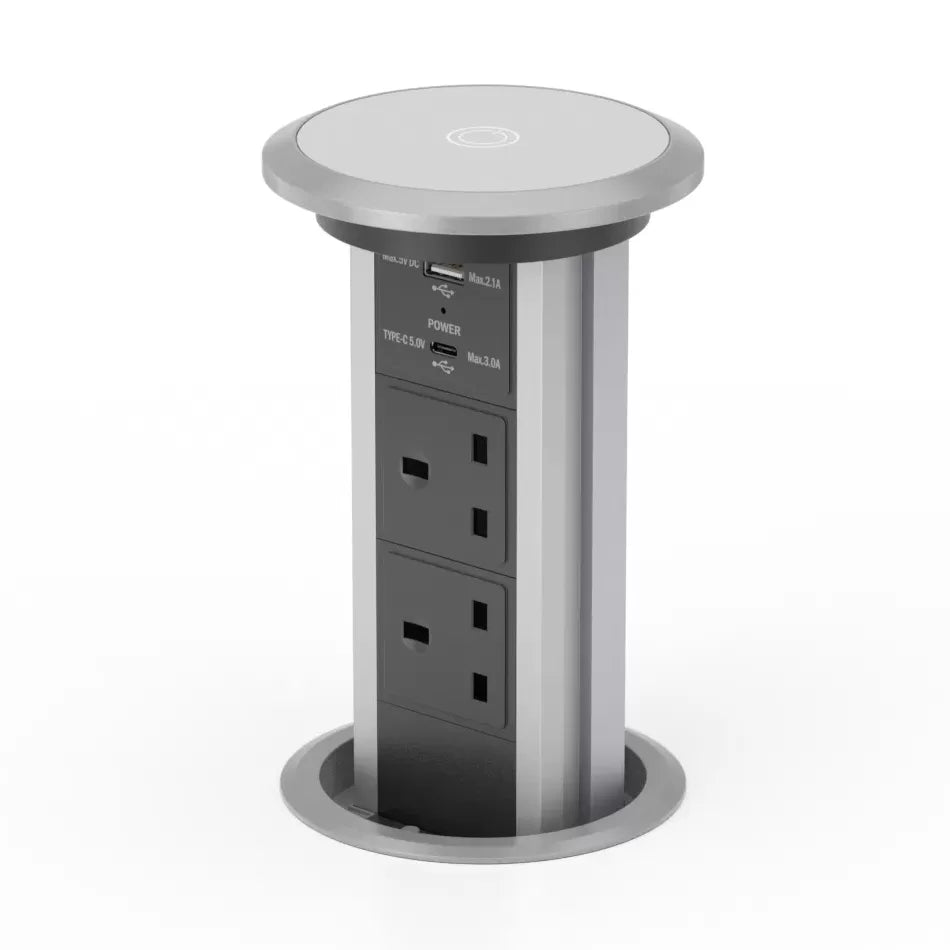

V3CS-UK Primary Pop Up Socket View

Elegant design, high quality build

Constructed with an extruded aluminium body and hardened-glass top.

Safety First EOI Icon

Use as specified

Read the supplied instructions before installation and use. Do not exceed the stated total load or use the unit in an unsupported configuration.

Download File EOI

Technical sheet

Download the current technical sheet and installation information.

Download

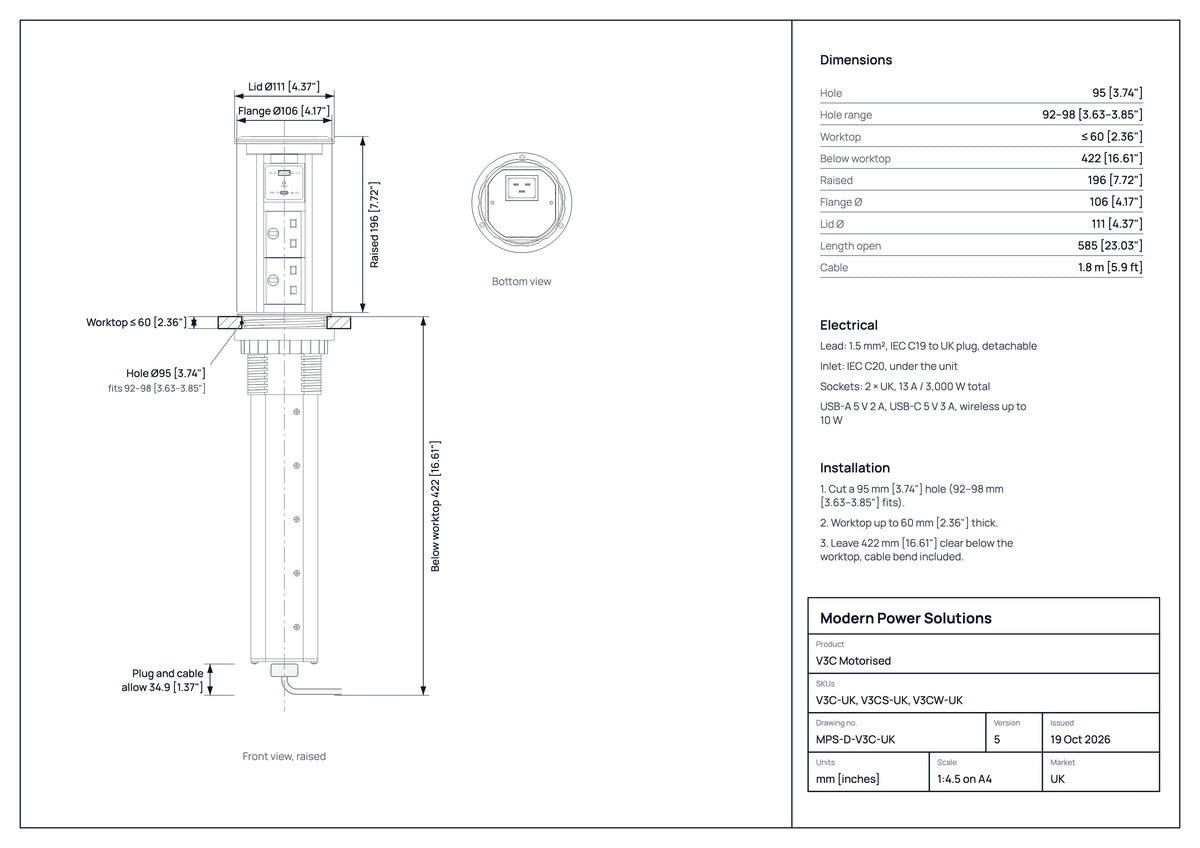

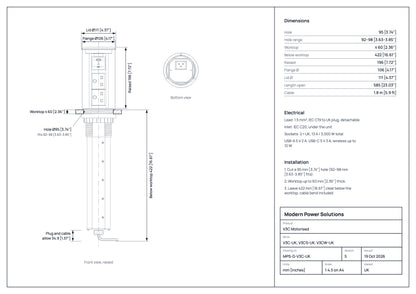

Pop Up Socket Dimensions

Dimensions and details

Specifications, support and common questions.

Electrical, installation, delivery and support information is consolidated here so it is easier to scan.

Specifications

Electrical

230V AC nominal, 50Hz; 13A and 3,000W total maximum. Class I.

Charging

USB-A: 5V/2A. USB-C: 5V/3A. Wireless charging: up to 10W.

Construction

Silver top ring, silver body and black sockets; polyamide, ABS and anodised aluminium. IP54 closed / IP20 open. 24-month warranty.

Delivery, warranty and support

Frequently asked questions

Is it waterproof?

No. The unit is rated IP54 only when fully closed and IP20 when open. Keep liquids away from exposed sockets and USB ports.

What opening is required?

Compare the existing opening, surface thickness and clear space below with the dimensions for this exact regional model.

Does it need hardwiring?

No hardwiring is required for normal plug-and-play installation. Use an appropriate trade professional for worktop cutting or any electrical alteration.
