Power and data
Four UK sockets and two RJ45 pass-through connections.
V14B at a glance
Four-sided access, organised around installation and connection planning.

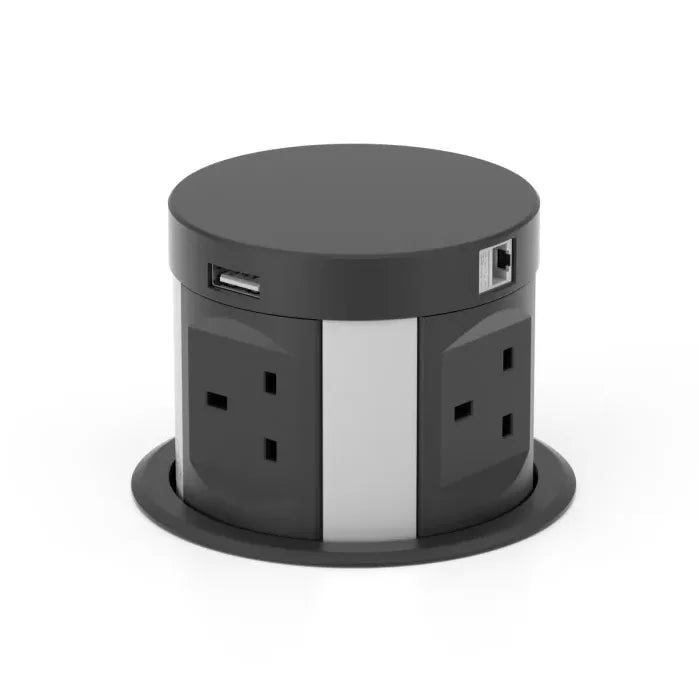

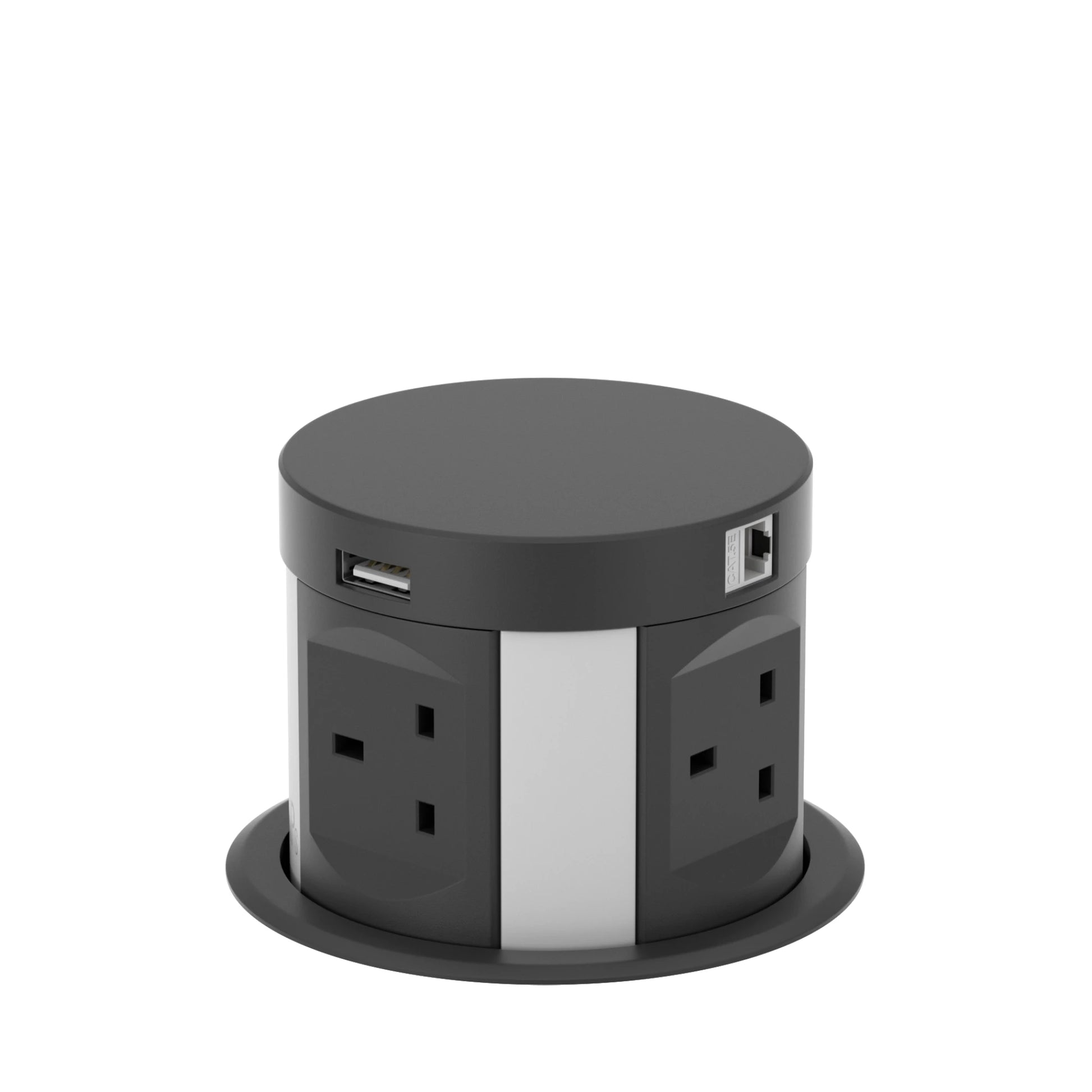

A quad-sided pop-up socket with four UK sockets, USB charging, two RJ45 pass-throughs and wireless charging.
Features
USB charging
One USB-A and one USB-C port provide 15.5W combined.
Wireless charging
Charge compatible devices on the top surface at up to 5W.
Installation planning
120mm opening
The installation opening is 120mm. Do not use the former 120–135mm wording.
180mm clearance
Allow 180mm below the top surface for the unit.
Fitted UK plug
Supplied with a 1.8m lead and fitted UK plug. No hardwiring is required for normal installation.
Important: The unit is IP20. Each socket is protected by a 5A fuse; the input rating is 13A. Follow the supplied instructions and do not exceed the product rating.
It’s the finer details that set the best homes apart
Power when you need it, hidden when you don't. Choose a pop up socket.
Cable-free charging
Charging your mobile device wirelessly on top is just the beginning
120mm installation opening
Requires a 120mm opening.
The whole is greater than the sum of its parts
The V14 range has it all. Always be ready to connect or power any device when you need.
Use as specified
Read the supplied instructions before installation and use. Each socket is protected by a 5A fuse and the total connected load must remain within the product rating.
Power and connectivity
Four UK sockets, one USB-A port, one USB-C port, two RJ45 pass-through connections and 5W wireless charging. The USB ports provide 15.5W combined.
Fitted UK plug
Supplied with a 1.8m lead and fitted UK plug, so hardwiring is not normally required. Use a qualified electrician for any electrical alteration.
Flexible orientation
The V14 may be installed upright, sideways or inverted only when the supplied installation instructions and site conditions are followed.
Electrical rating
13A input. Each individual socket is protected by a 5A fuse. USB output is 15.5W combined and wireless charging is up to 5W.
Dimensions and details
Specifications, support and common questions.
Electrical, installation, delivery and support information is consolidated here so it is easier to scan.
Specifications
Electrical
230V AC nominal, 50Hz; 13A input. Each socket is protected by a 5A fuse. IP20.
Connections
4 × UK sockets, 1 × USB-A, 1 × USB-C and 2 × RJ45 pass-throughs.
Charging
USB: 5V/3.1A, 15.5W combined. Wireless charging: up to 5W.
Delivery, warranty and support
Technical sheet
Current dimensions, ratings and installation information for V14B-UK.
Shipping information
View current United Kingdom delivery options and estimated timeframes.
Frequently asked questions
What opening is required?
A 120mm opening is required.
Can every socket supply 13A?
No. Each individual socket is protected by a 5A fuse; 13A is the input rating for the unit.
Can it be installed sideways or inverted?
The current technical sheet permits upright, sideways or inverted installation. Follow the supplied instructions and confirm the site is suitable.
