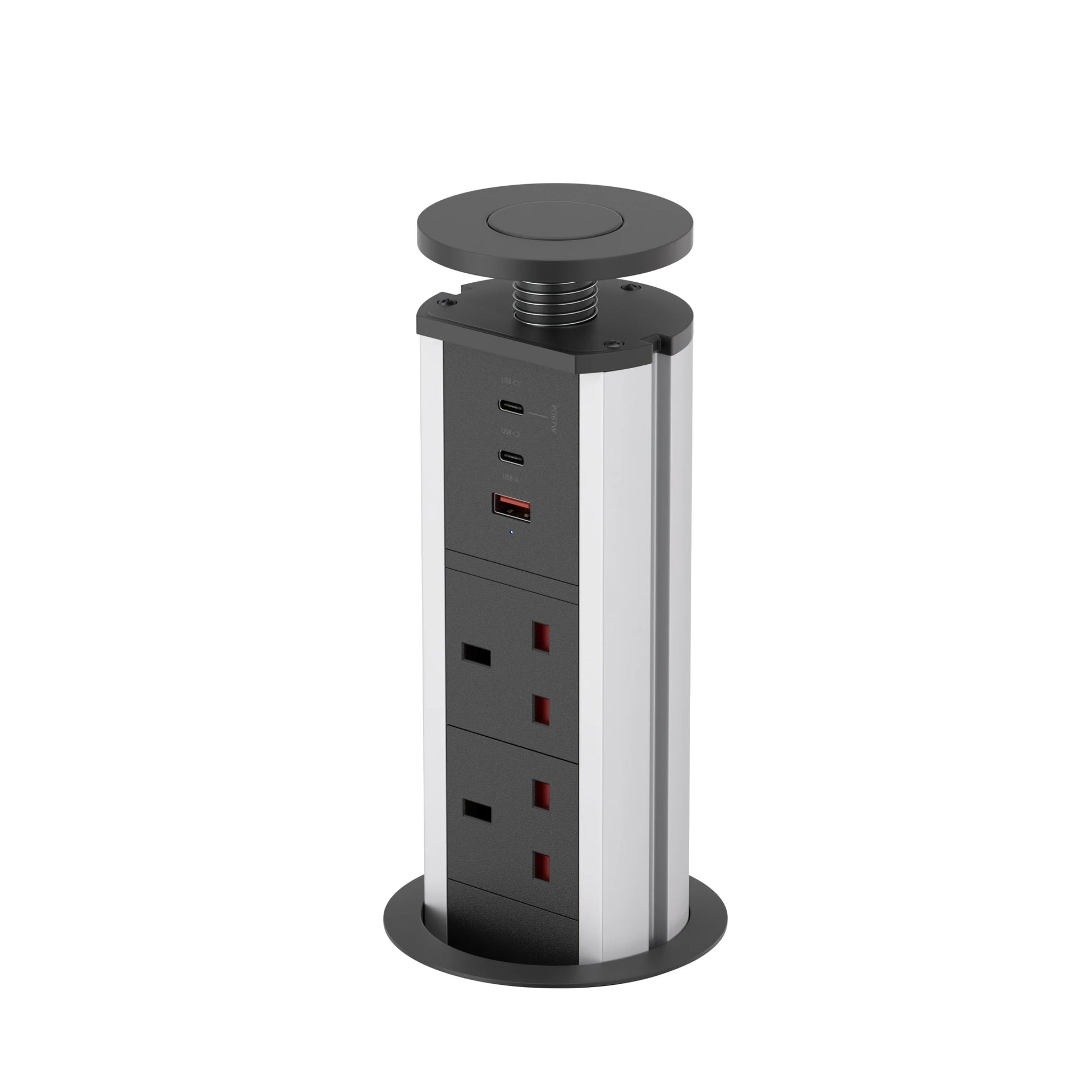

V1BC: Pop Up Power Socket Black
V1BC: Pop Up Power Socket Black
When designing our homes and offices, we are faced with decisions about the smallest of details as indeed it is the trifling aspects of modern spaces that set them apart. When it comes to deciding on electrical fittings however, most people don’t look any further than the white plastic plug assuming that’s their only option.
That’s why Modern Power Solutions are revolutionising the way we access power in our kitchens, offices and other spaces.

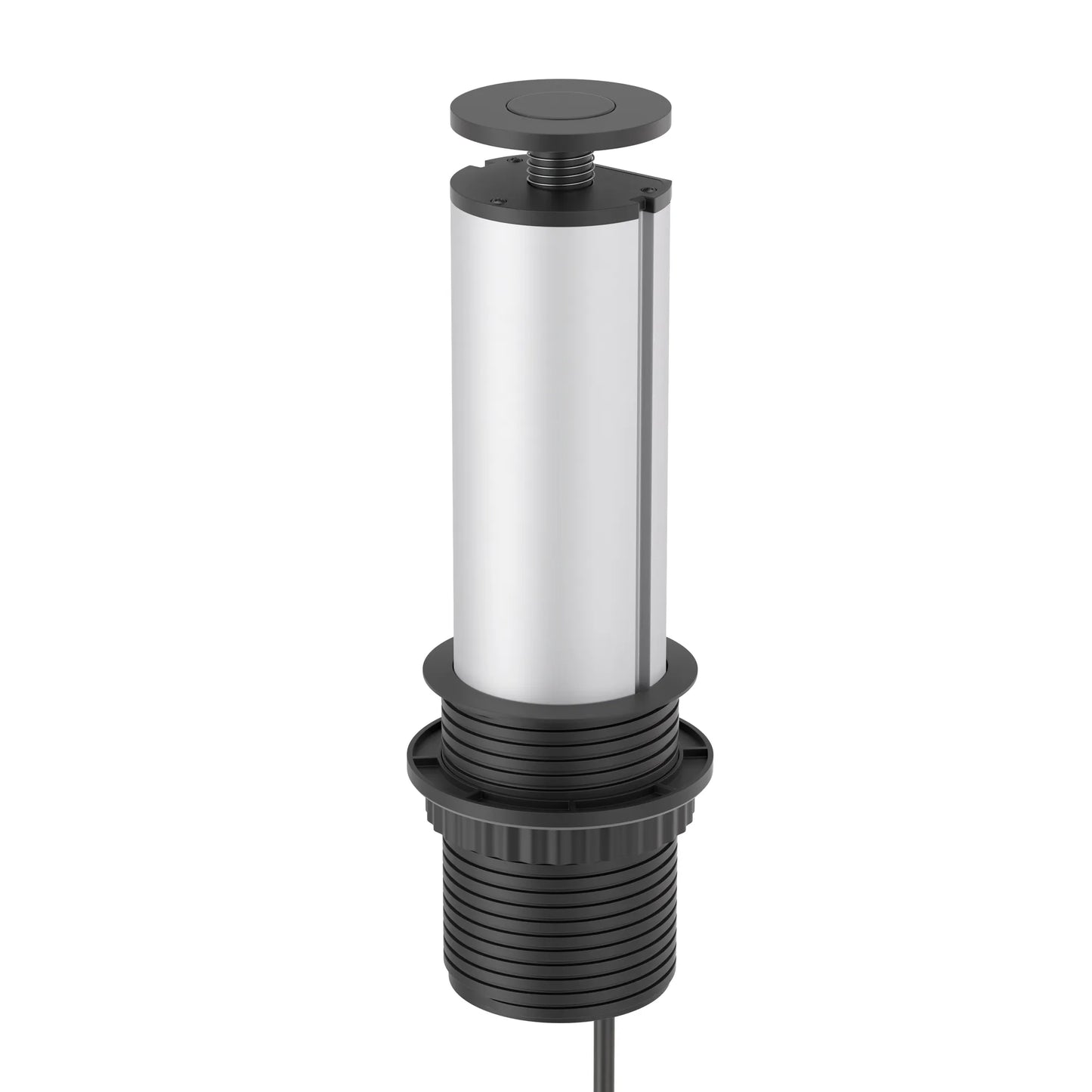

A compact and sturdy manual-lift retractable power socket
Plug and play
A single 1.8m cable plugs into a UK wall socket.
Designed with safety in mind
Solid construction, plug & play.
Fits into a hole 90mm (+/- 6mm) in diameter.
2400W 10A max rated 240v 50Hz, USB-C 18W Max.
Pop up power outlets are our bread and butter. We are here to help when needed.
Country: United Kingdom
Dispatched From: United Kingdom
Colour: Black Top, Silver Shell, Black Outlets
Materials: PVC, ABS & Aluminium
Cable Length: 1.8m
Warranty: 24 months

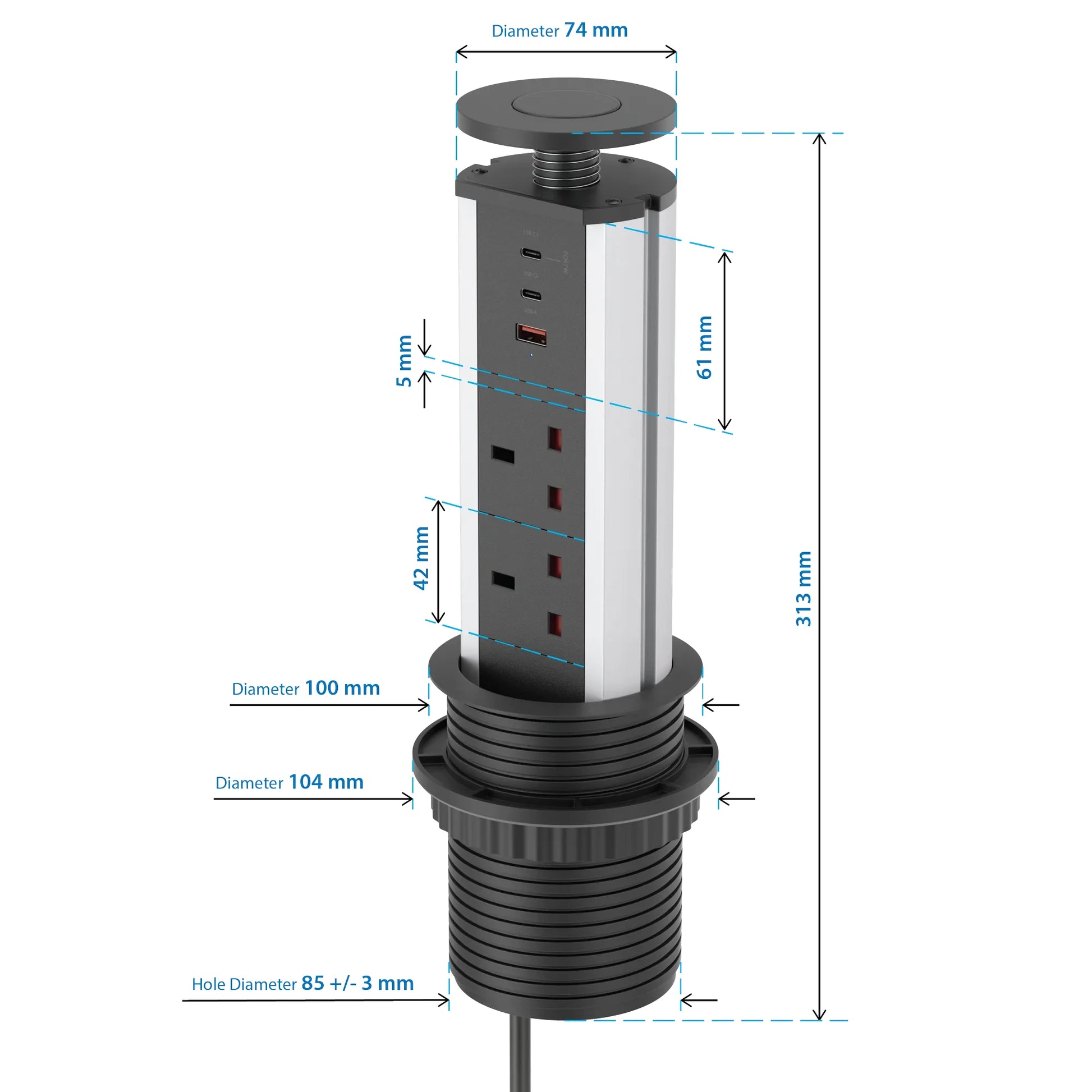

Installation Hole Diameter: 90mm (+/- 6mm)
Space Below Surface: 340mm
Lifting Method: Manual Lift – Pull Up

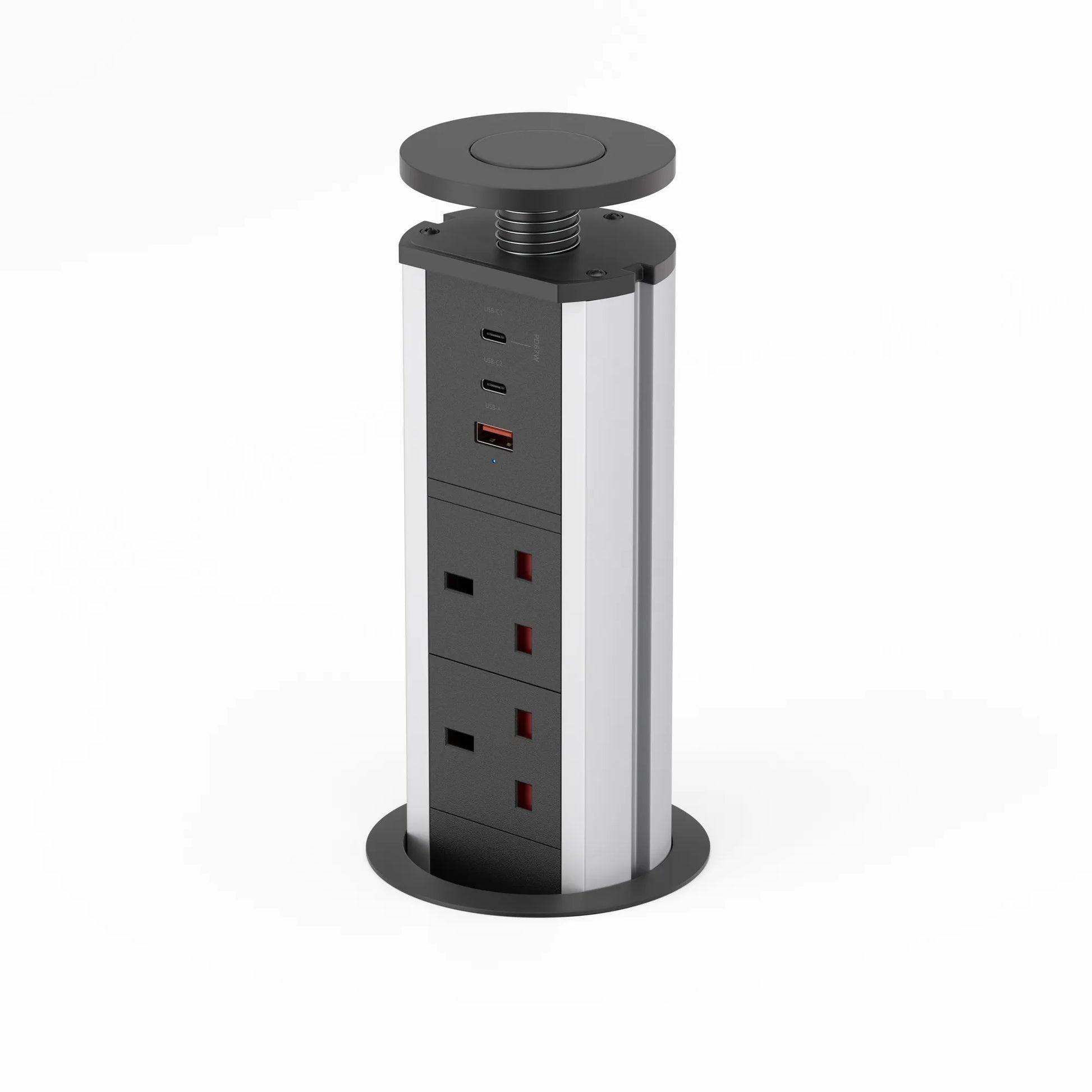

Outlets: 2x UK Power Sockets, 2x USB-A, 1x USB-C
Plug: UK Plug
Rated Voltage: 240v ~50Hz
Rated Current: 10A, 2400w Total. Total load connected not to exceed rating
Operating Temperature: 0 - 40 C, 32 - 104 F
Individual Box Weight (Gross): 0.82kg
Individual Box Dimensions: 37 x 12 x 12 cm
Individual Product Weight (Net): 0.7kg
20pcs Carton Dimensions: 62.5 x 37 x 46 cm
Product Type: Pop Up Electrical Sockets UK
USB Charger: (internal, built in)
Input: 100-240V ~ 50/60Hz ; 0.5A
Type-C: 5V-3A , 9V-2A，12V-1.5A
USB-A1 : 5V-3A , 9V-2A , 12V- 1.5A
USB-A2 : 5V-3A , 9V-2A , 12V- 1.5A
Pop Up Electrical Sockets UK

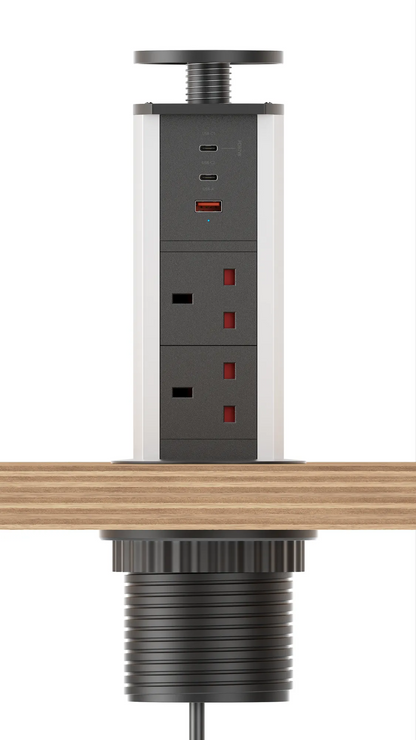

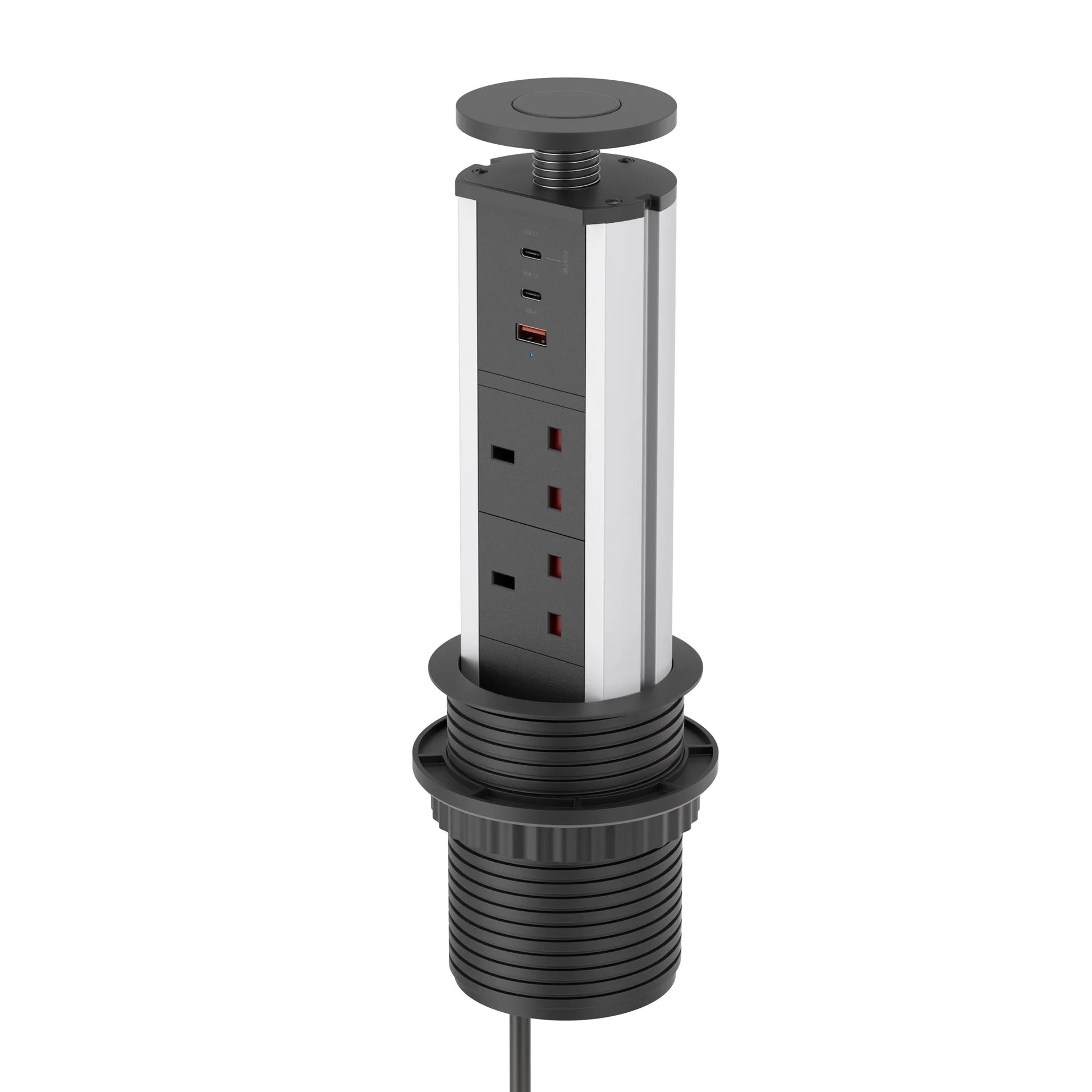

The V1 range is a compact and sturdy manual-lift retractable power socket device featuring USB charging and an 90mm (+/- 6mm) installation hole size.
2x UK Power Sockets, 2x USB-A 1x USB-C (18W)
1.8m Cable with Fitted UK Plug

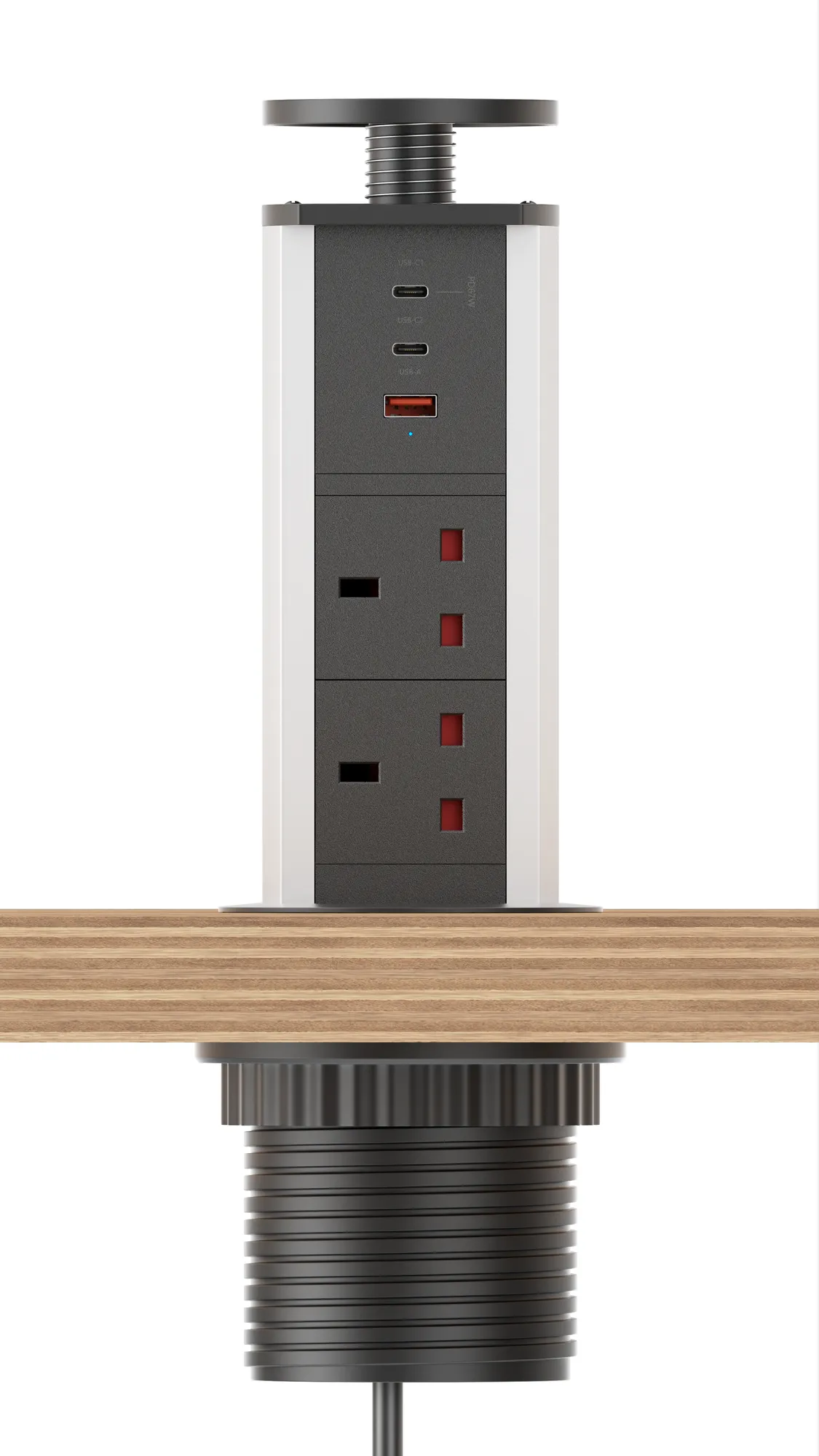

Step 1: Bench-top hole: drill a hole in your bench-top, with the diameter according to the product specifications.
Step 2: Unscrew the locking ring around the body of the unit, and remove it altogether.
Step 3: Place the unit inside the hole in your bench-top.
Step 4: Screw back the locking ring around the body of the unit – from the under-side of the bench-top, and tighten it securely.
Step 5: Connect the unit to power by plugging it into a power outlet under the bench-top.
Frequently Asked Questions FAQs
Q. Is this model spring-loaded? Does it automatically come up?
A. No, you are required to pull the unit up manually out of the surface to allow it to ‘pop up’ and be ready for use. Please check other models for automatic raising functionality.
Q. What happens if I have an issue with my product after the warranty period?
A. We’ve designed and tested these units for use over many years withstanding in a normal environment. If your product does develop an issue outside of the warranty period, we do provide an affordable repair or replacement service.
Q. Do you provide an after sales-service, and how do I contact you?
A. Yes, we provide an after-sales service. You can contact us via phone – through our ‘request a call back’ feature, where you give us your name and phone number, and we ring you back as soon as possible.
Q. Do I need a licensed electrician to install this product?
A. No, no electrical work is needed to install this product. We have designed the unit with a standard UK-fitted plug, allowing you to plug the unit into any other power socket – below your installation surface.
Q. What is the process in making a warranty claim if I have an issue with my product?
A. If your product malfunctions within the warranty period, we will repair or replace it free of charge. We keep digital records matched with product serial numbers for every order, so you do not need to worry about keeping your receipt.
About Modern Power Solutions
Modern Power Solutions is the leading manufacturer for retractable, pop up power sockets designed for the home and office. Founded in 2006, Modern Power Solutions aims to improve the convenience of power access through product innovation, customer research and a culture of microfocus.
