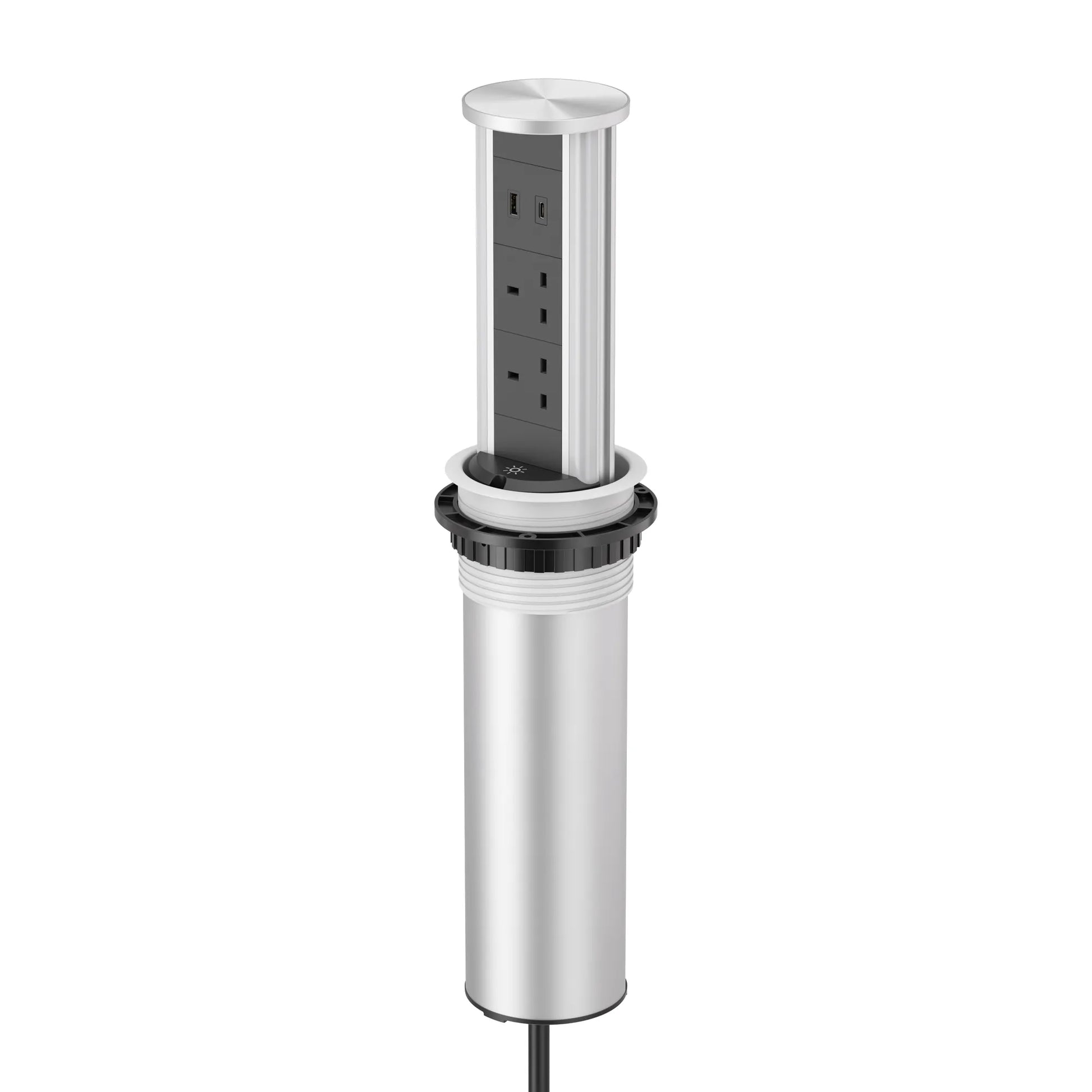

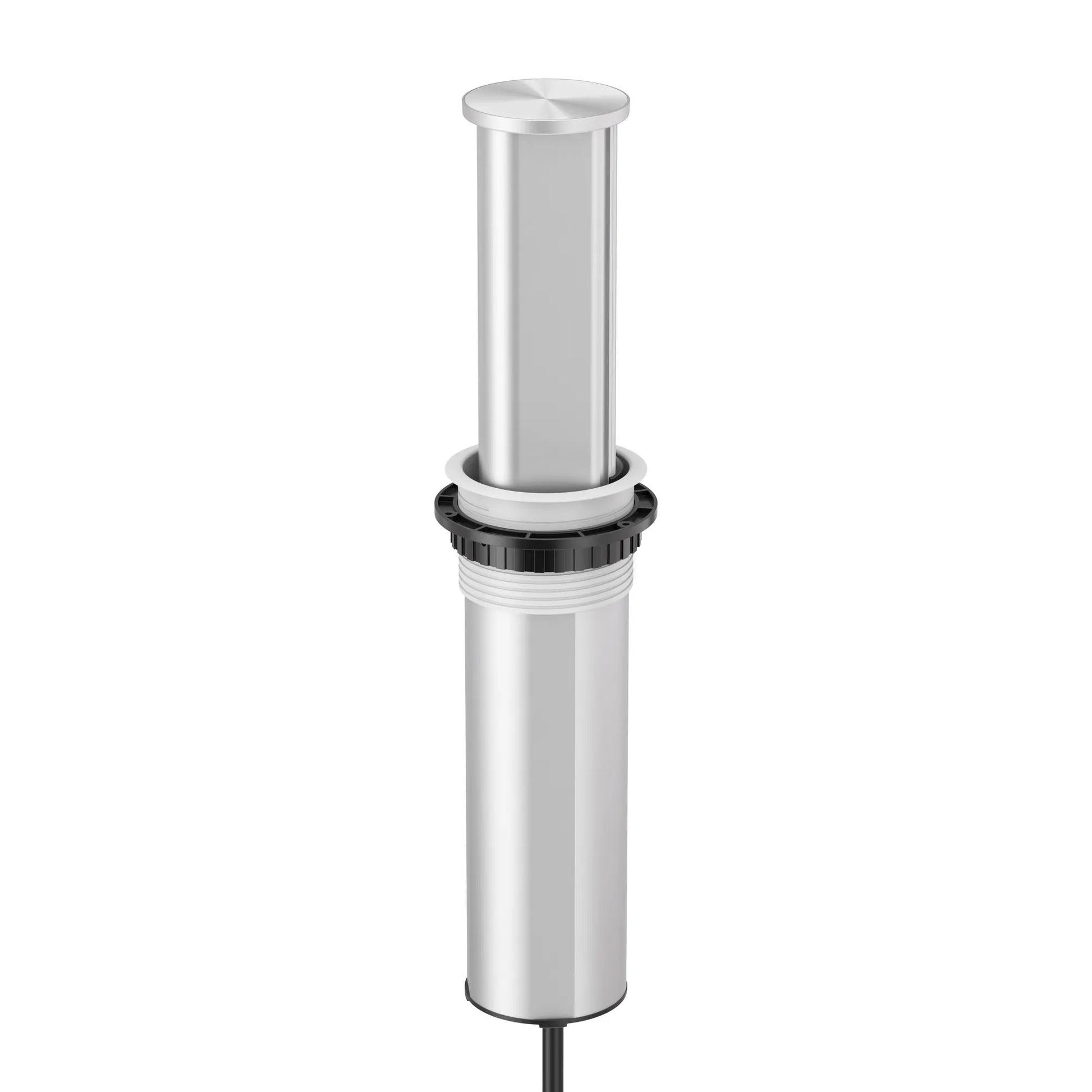

Gas-strut lift
Press and release the top to raise the unit; push it down until it clicks to retract it.
Product guide

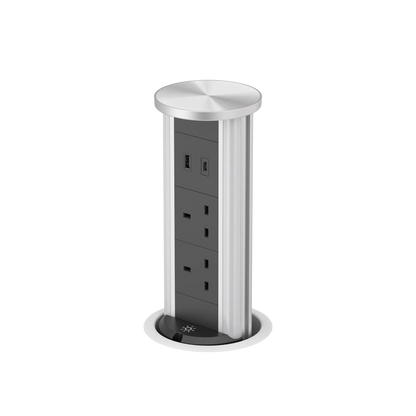

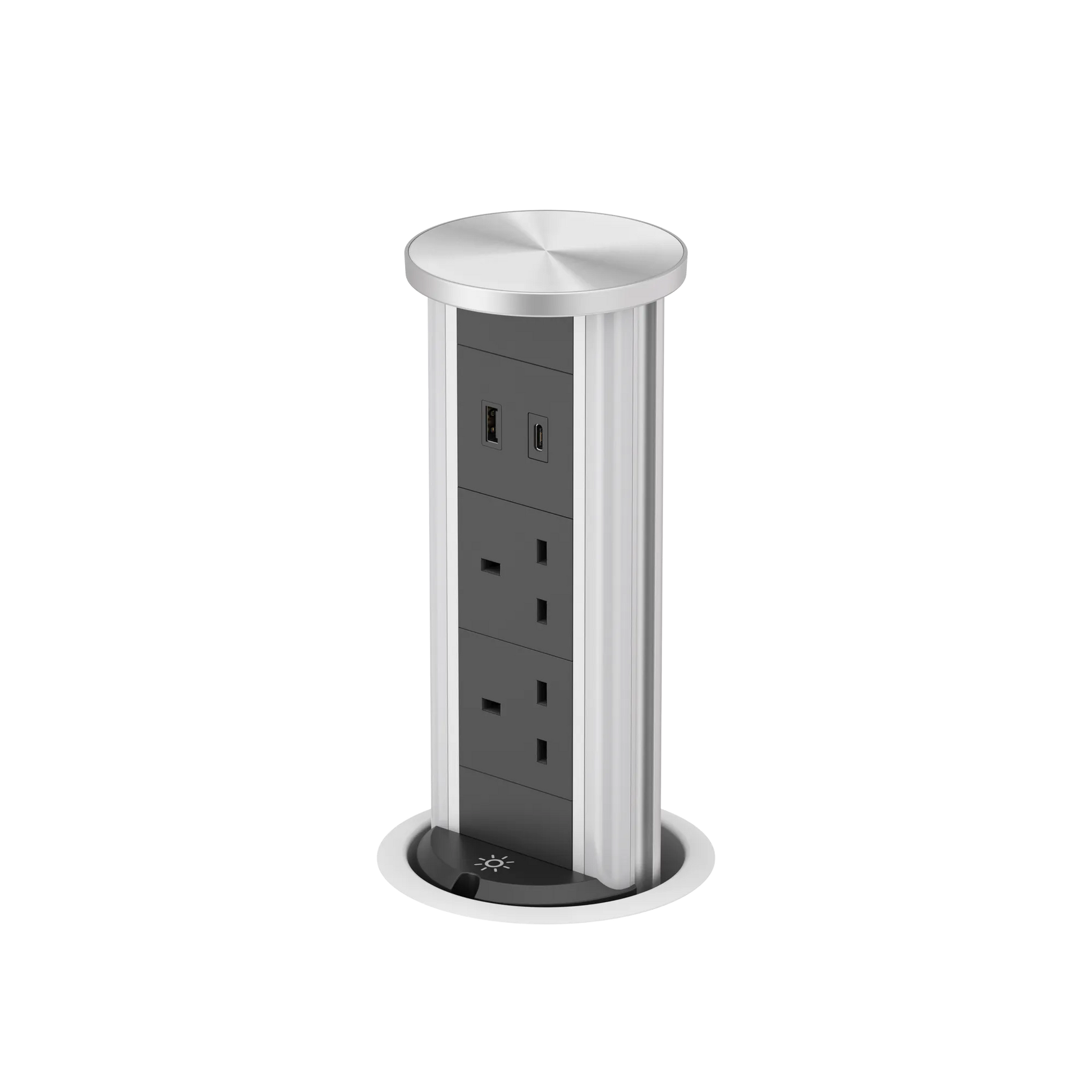

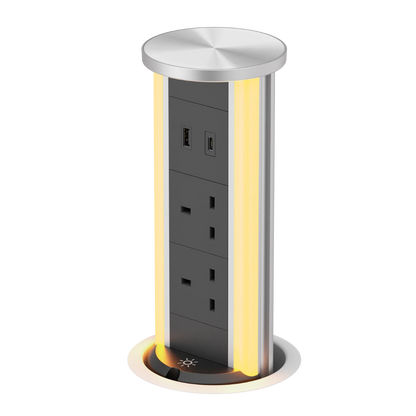

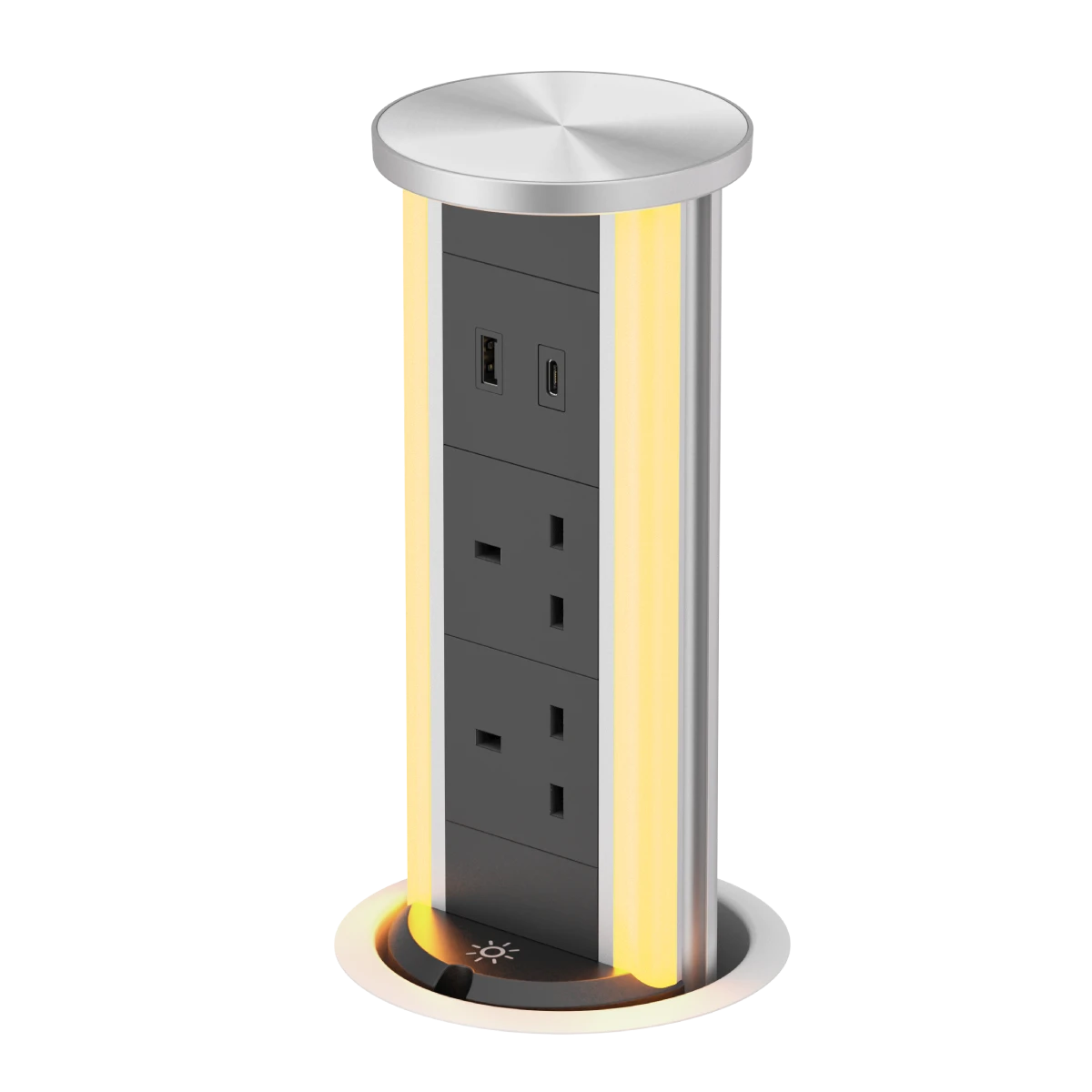

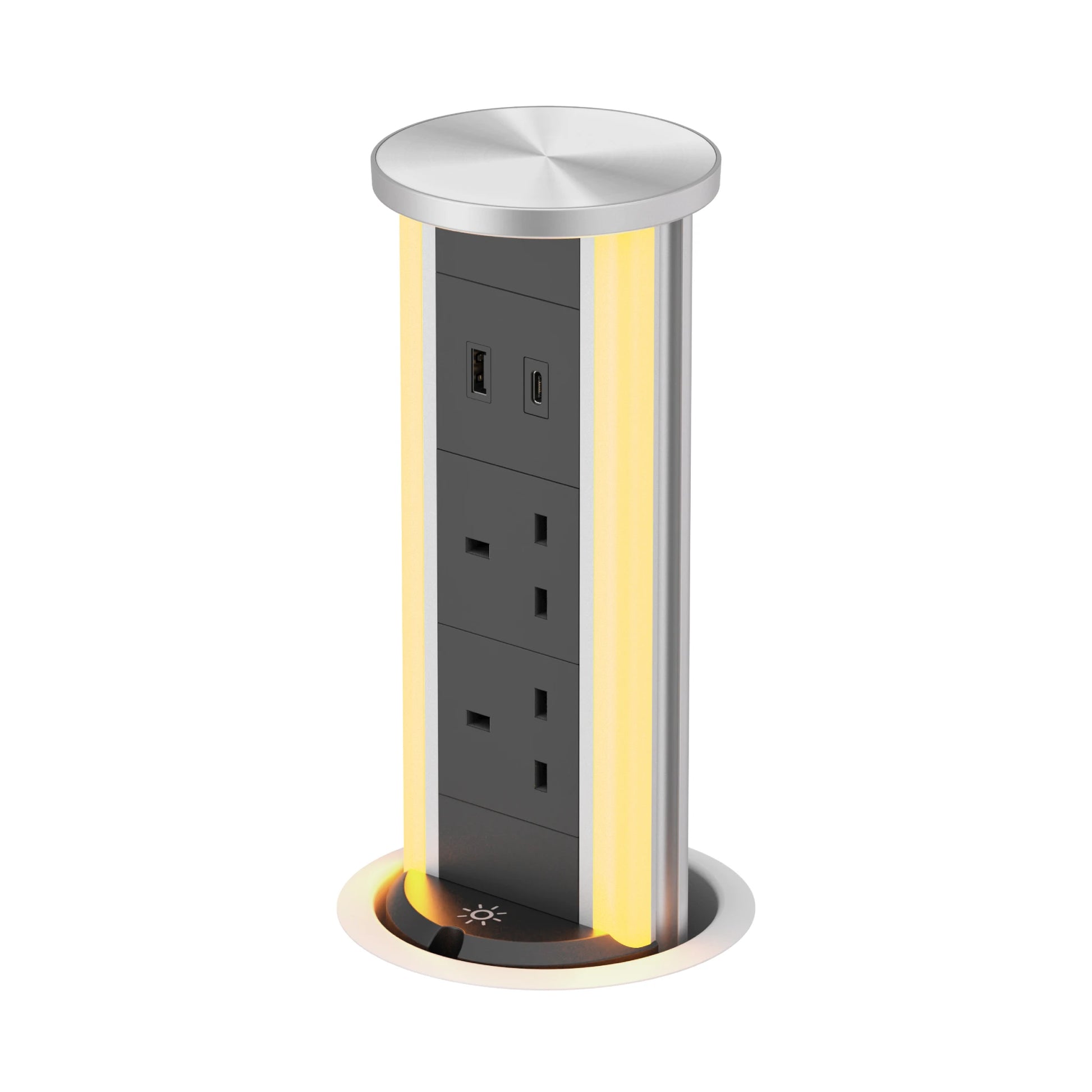

A silver gas-strut pop-up socket with two UK sockets, USB charging, wireless charging and a dimmable LED light.
Features
The key functions and connections at a glance.
Dimmable LED light
Tap to switch the warm-white light on or off; press and hold to adjust brightness.
Charging
Includes USB-A, USB-C up to 65W and wireless charging up to 10W.
Installation planning
Plan the opening, clearance and electrical connection together.
Installation opening
Fits 95–105mm openings. 100mm (4in.) recommended.
350mm minimum clearance
Allow at least 350mm clear space below the worktop.

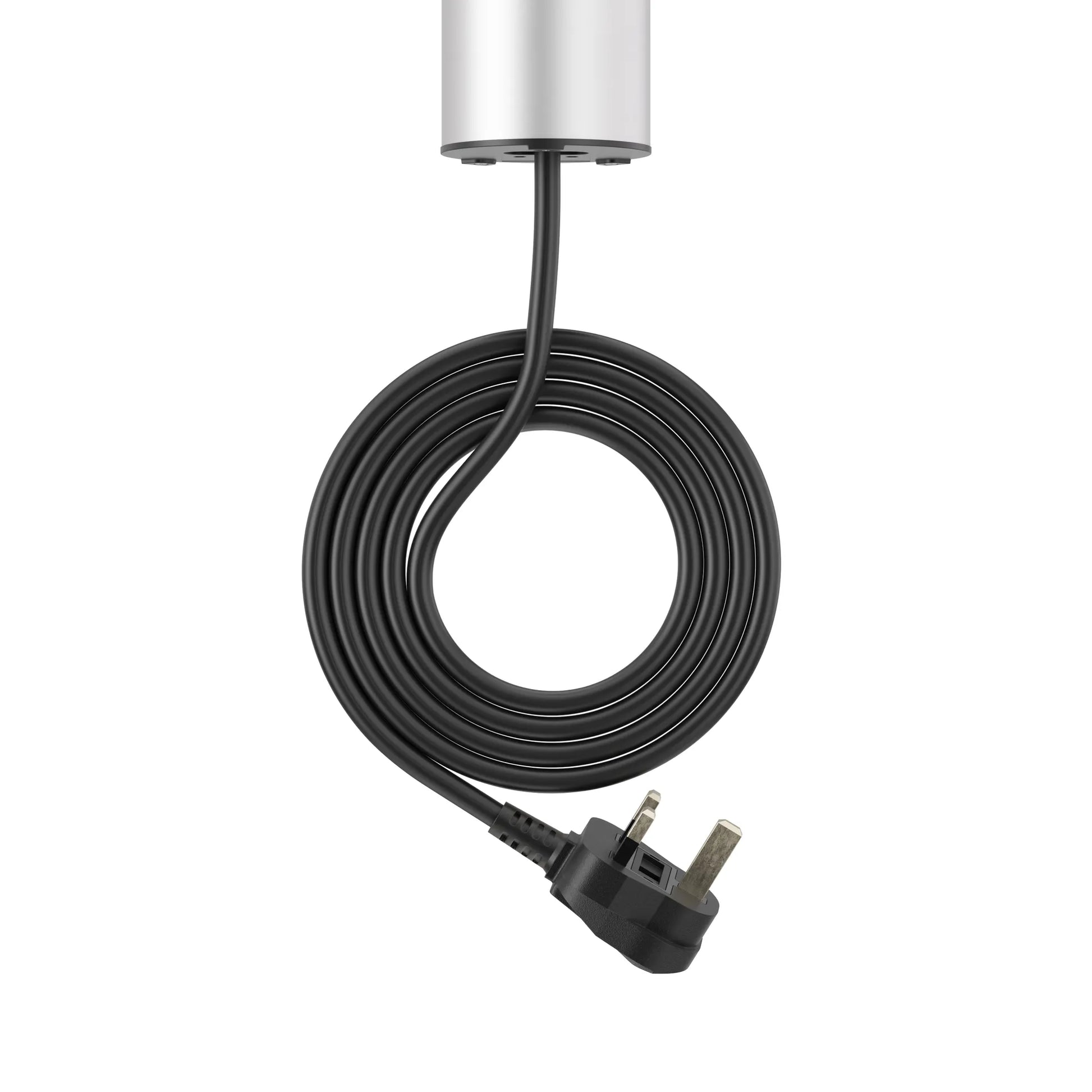

Fitted UK plug
Approx. 1.5m lead with a fitted UK plug; no hardwiring required.
Important: IP20 for indoor, dry-location use only. Do not exceed 10A / 2,500W total, and follow the supplied instructions and product rating label.
Specifications
Use these details with the supplied instructions and the rating label on the product.
Electrical
250V AC, 50Hz; 10A / 2,500W maximum total load. IP20, UKCA marked and RoHS compliant.
Connections
2 × UK sockets, 1 × USB-A, 1 × USB-C and wireless charging.

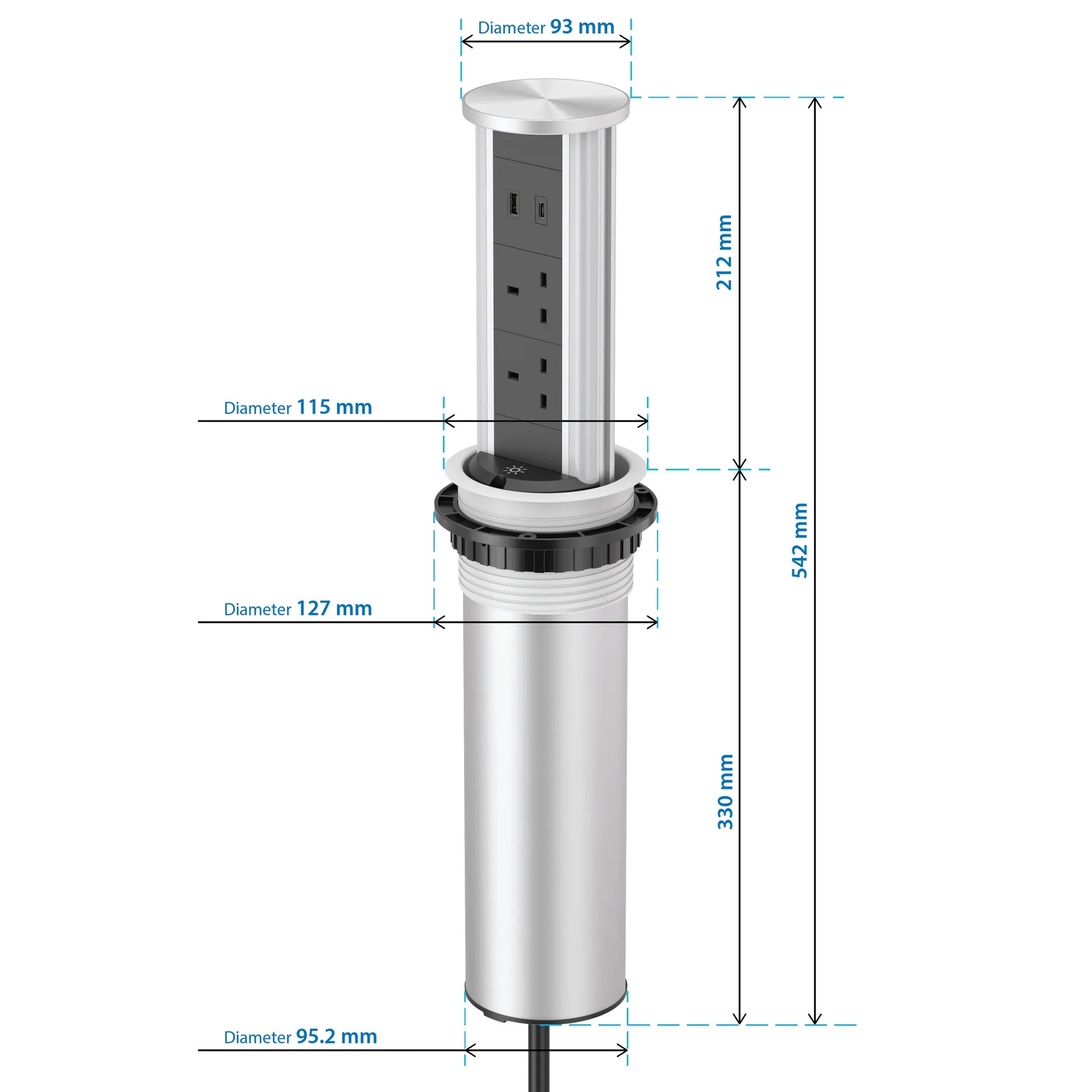

Installation dimensions
Opening: 95–105mm; a 100mm or 4″ (101.6mm) opening is recommended. Body: 95.2mm diameter. Top flange: 115mm. Locking ring: 127mm. Body below surface: 330mm. Allow at least 350mm clear space below.
Frequently asked questions
Is the total rating 13A?
No. The complete unit is rated 10A / 2,500W maximum at 250V AC, 50Hz.
How does it open?
Press and release the lid and the gas strut raises the unit. Push it down until it clicks to retract it.

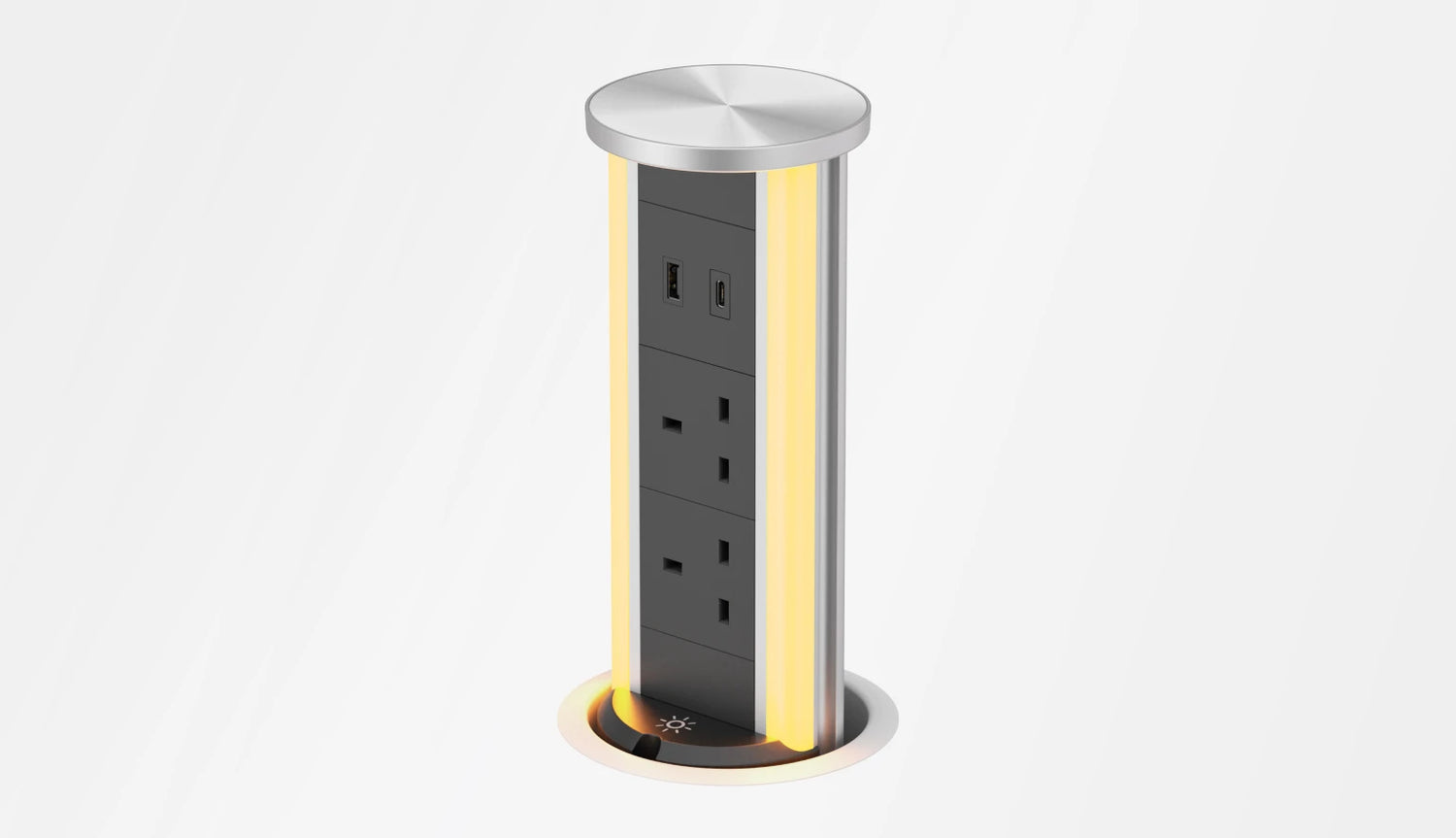

The difference between ordinary and extraordinary is that little extra
Installation opening
Fits 95–105mm openings; a 100mm or 4″ (101.6mm) opening is recommended. Allow at least 350mm clear space below.

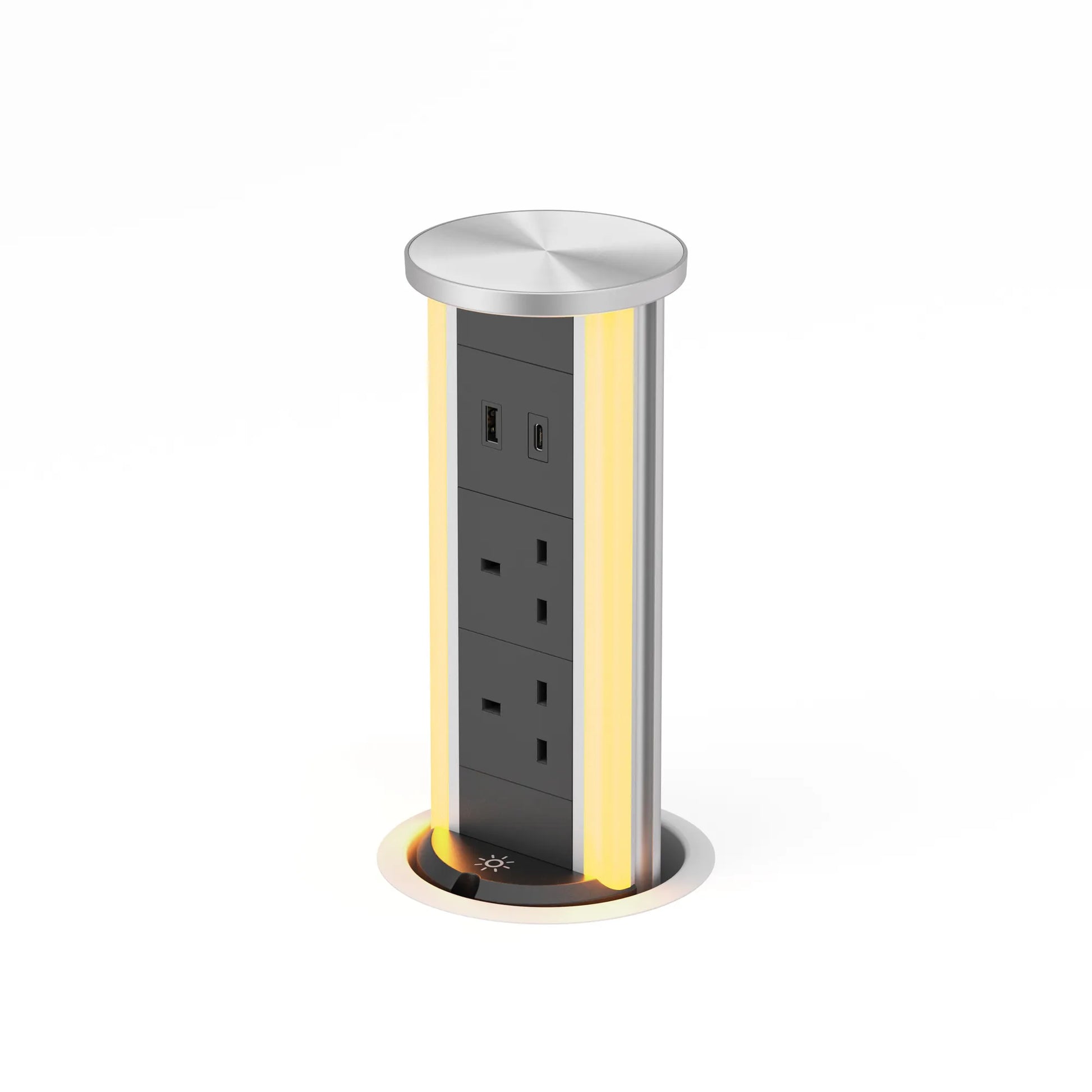

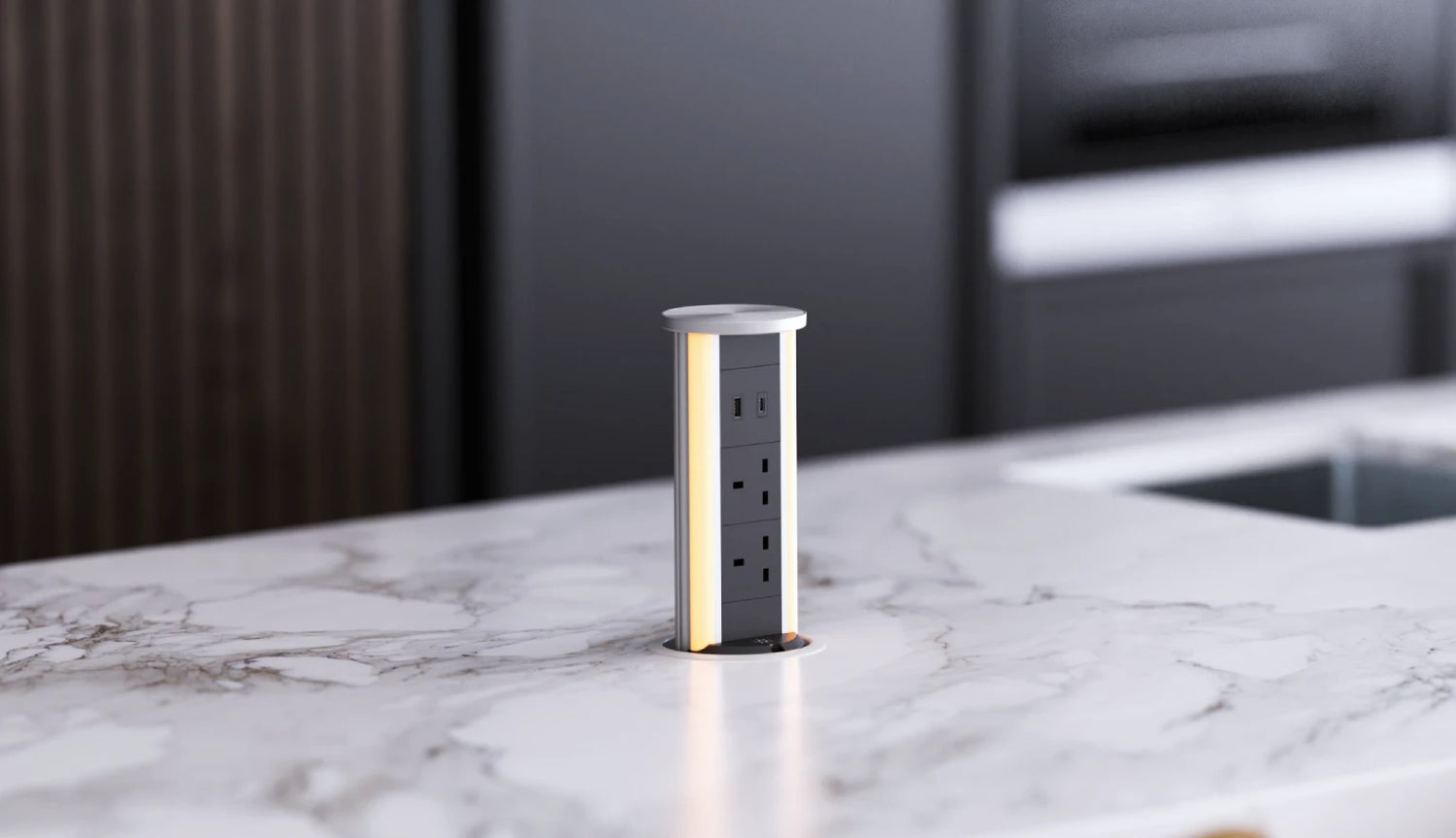

Integrated LED lighting
A built-in warm LED light adds style and functionality, serving as a night light or premium accent feature.

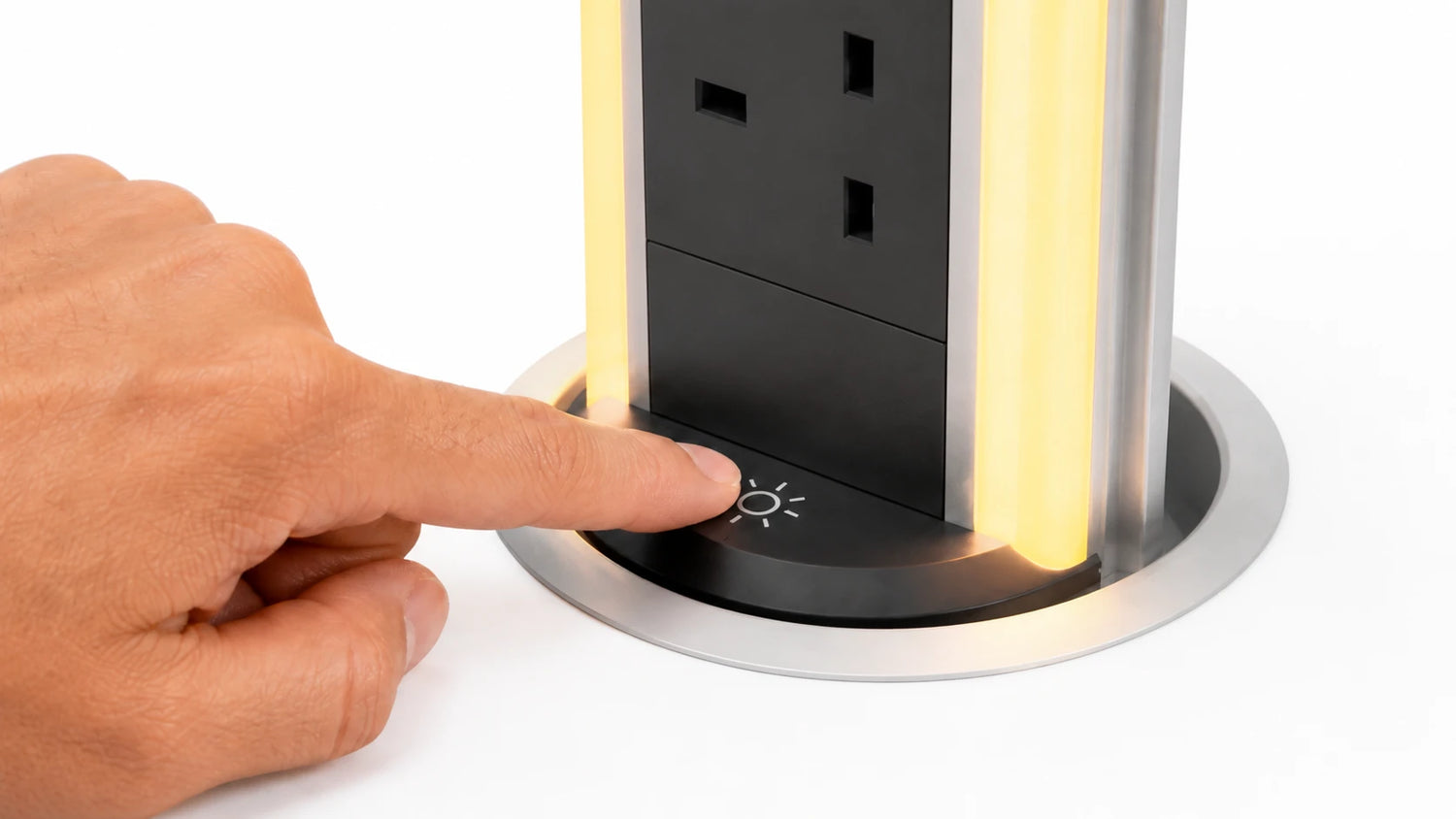

LED light control
Tap the light button to switch the LED on or off; press and hold to adjust brightness.

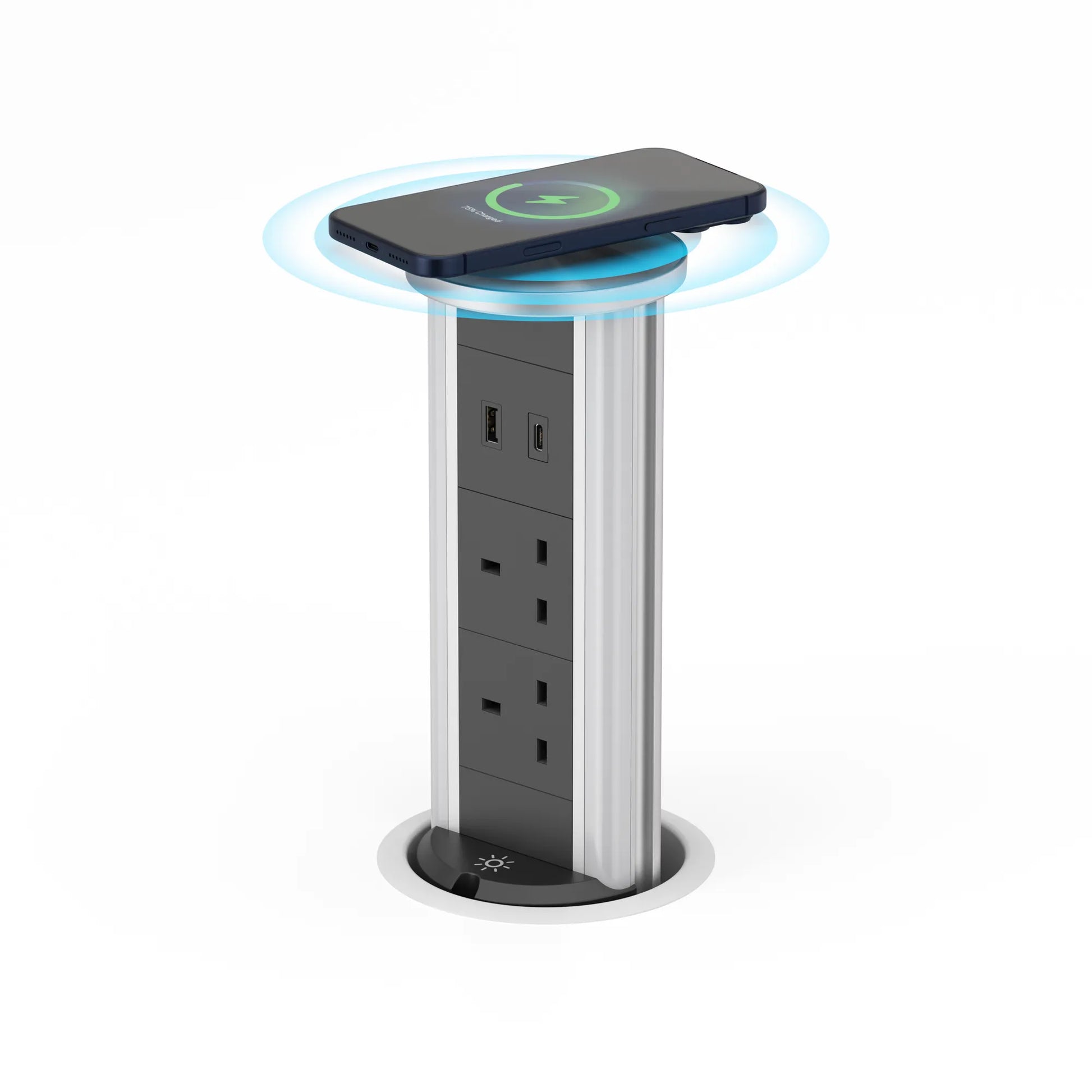

Wireless charging
Charge compatible devices on the top surface at up to 10W.

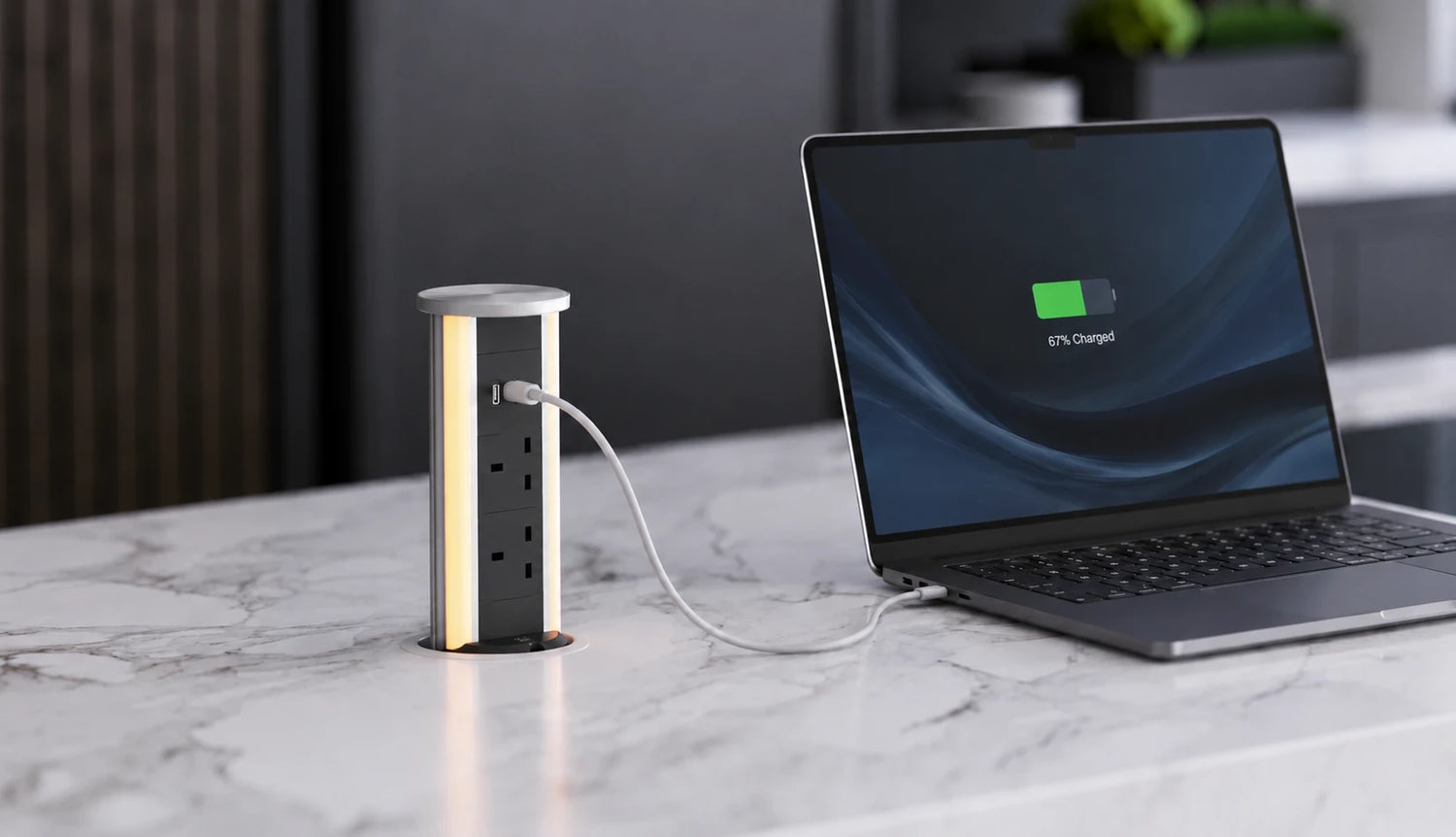

65W USB-C charging
USB-C Power Delivery provides up to 65W when used on its own, suitable for compatible laptops, tablets and phones.

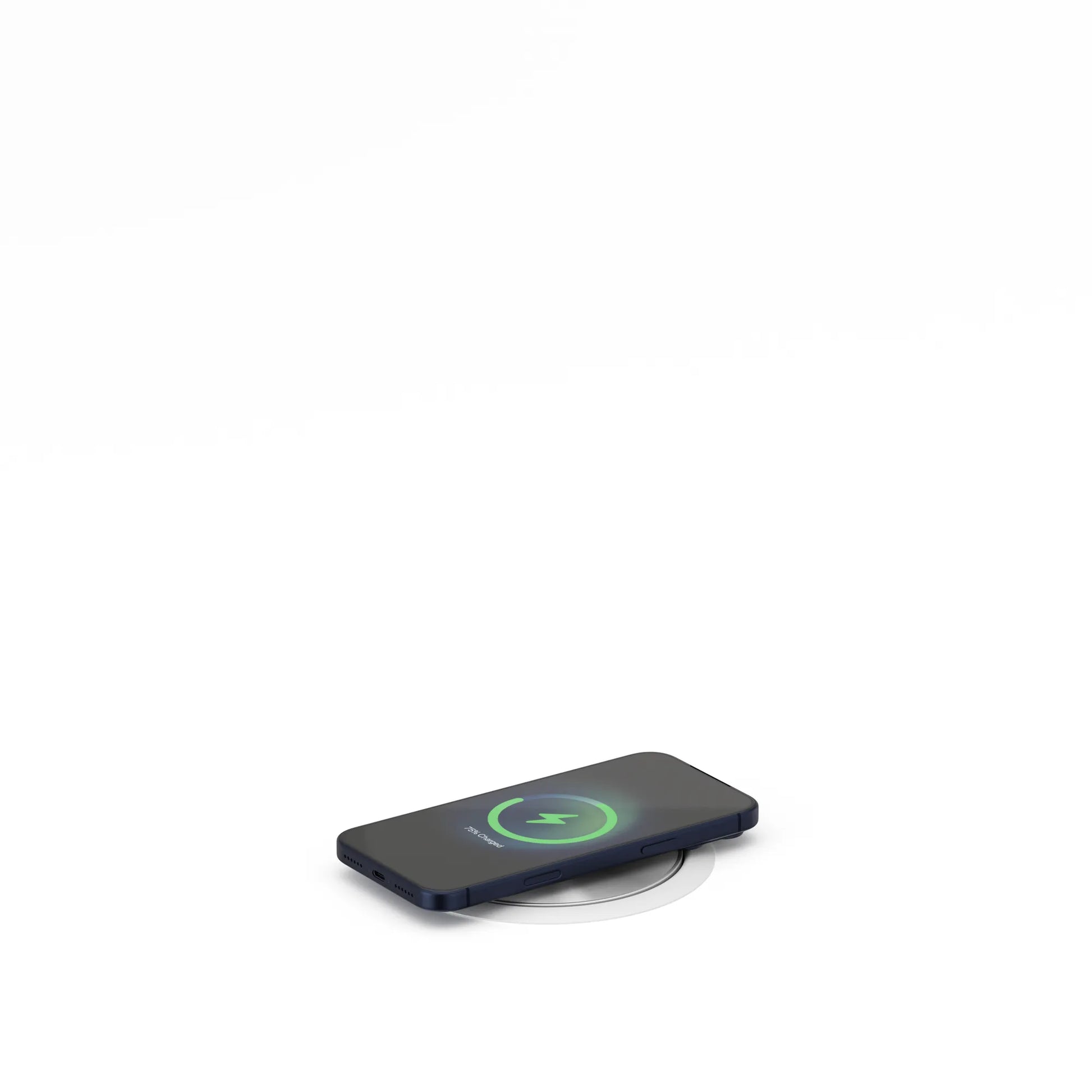

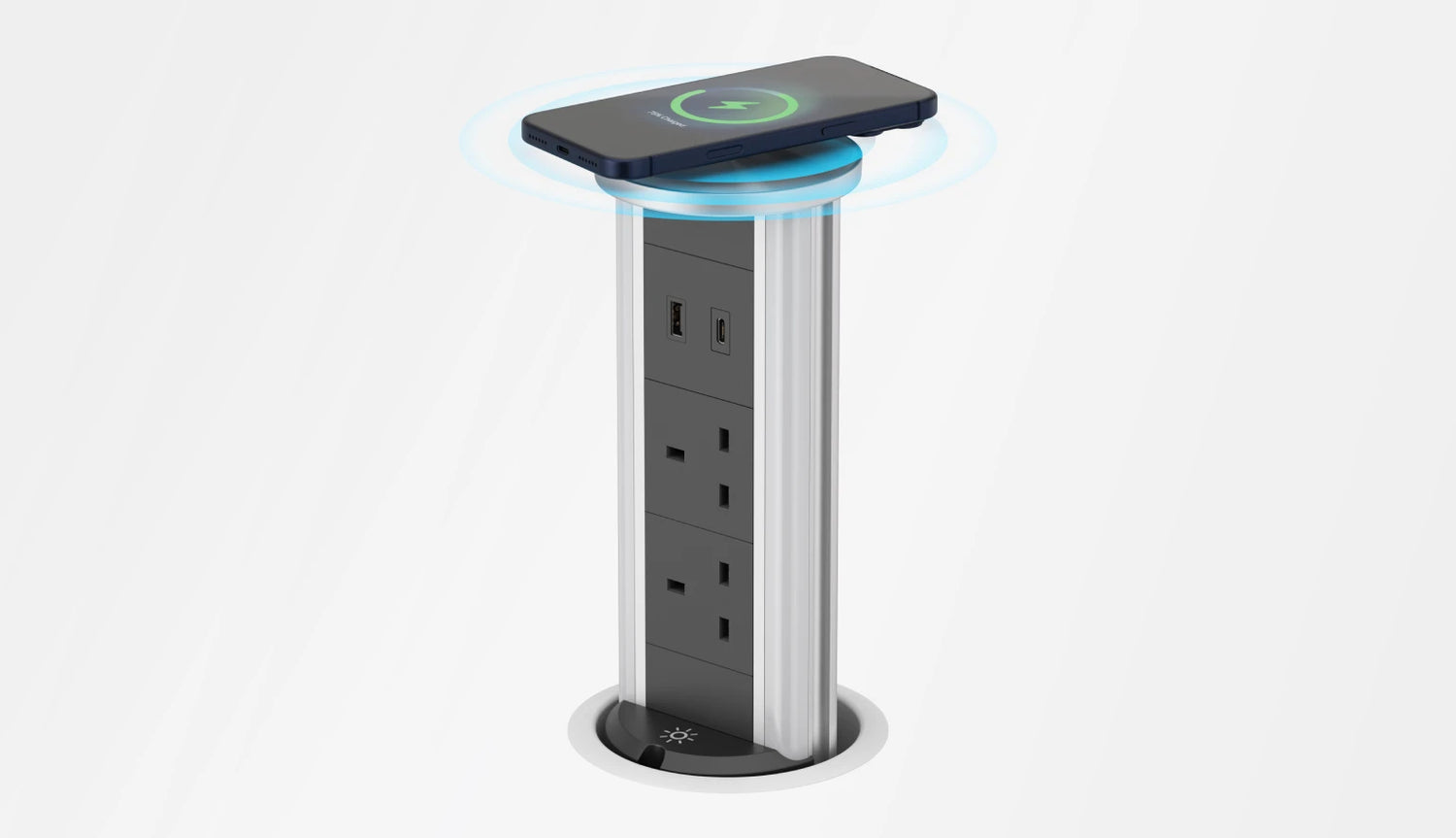

Wireless charging in any position
The wireless charging surface remains available with the unit raised or retracted.

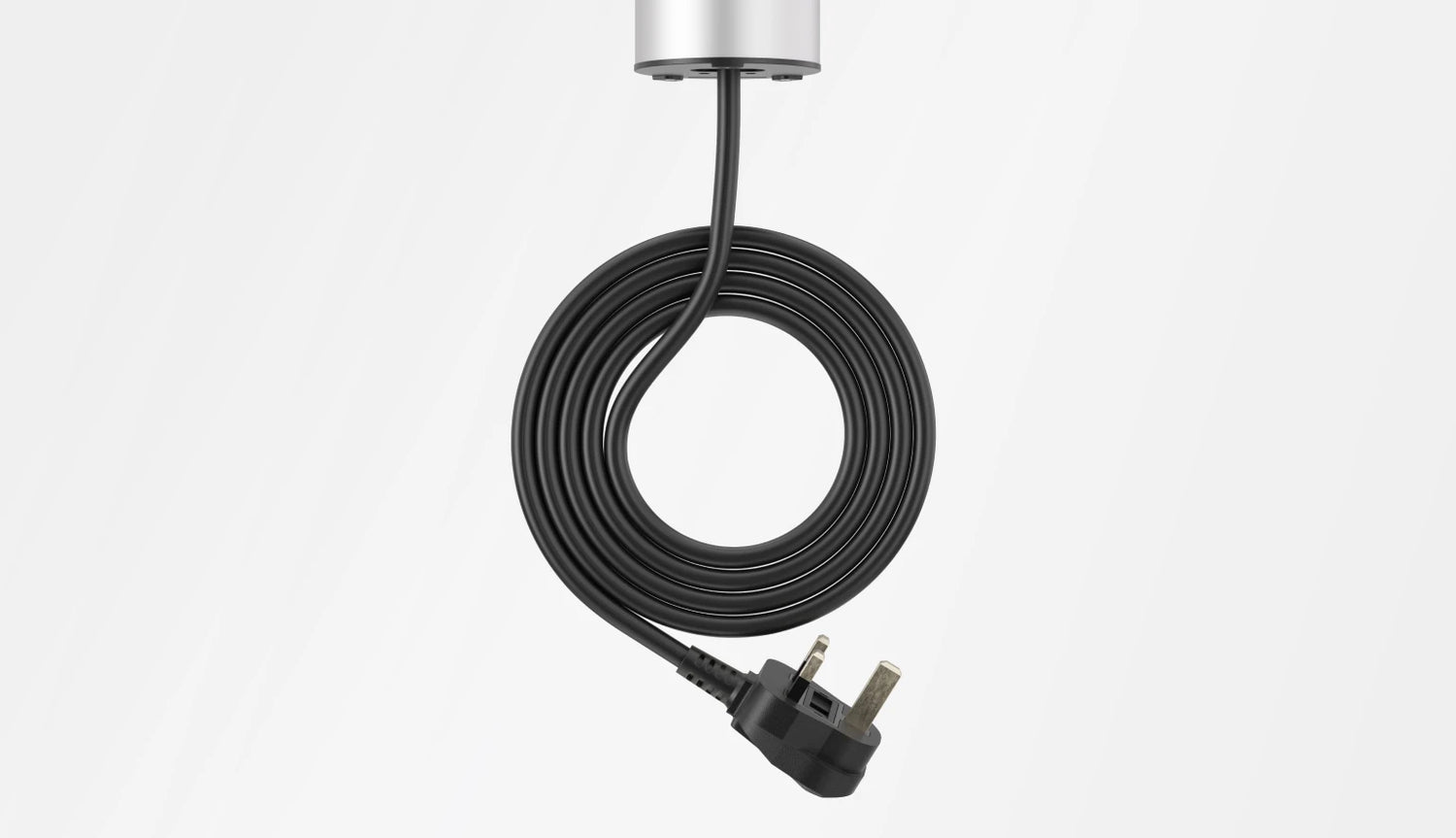

Plug and play
Supplied with an approximately 1.5m lead and fitted UK plug. No hardwiring is required for normal installation.

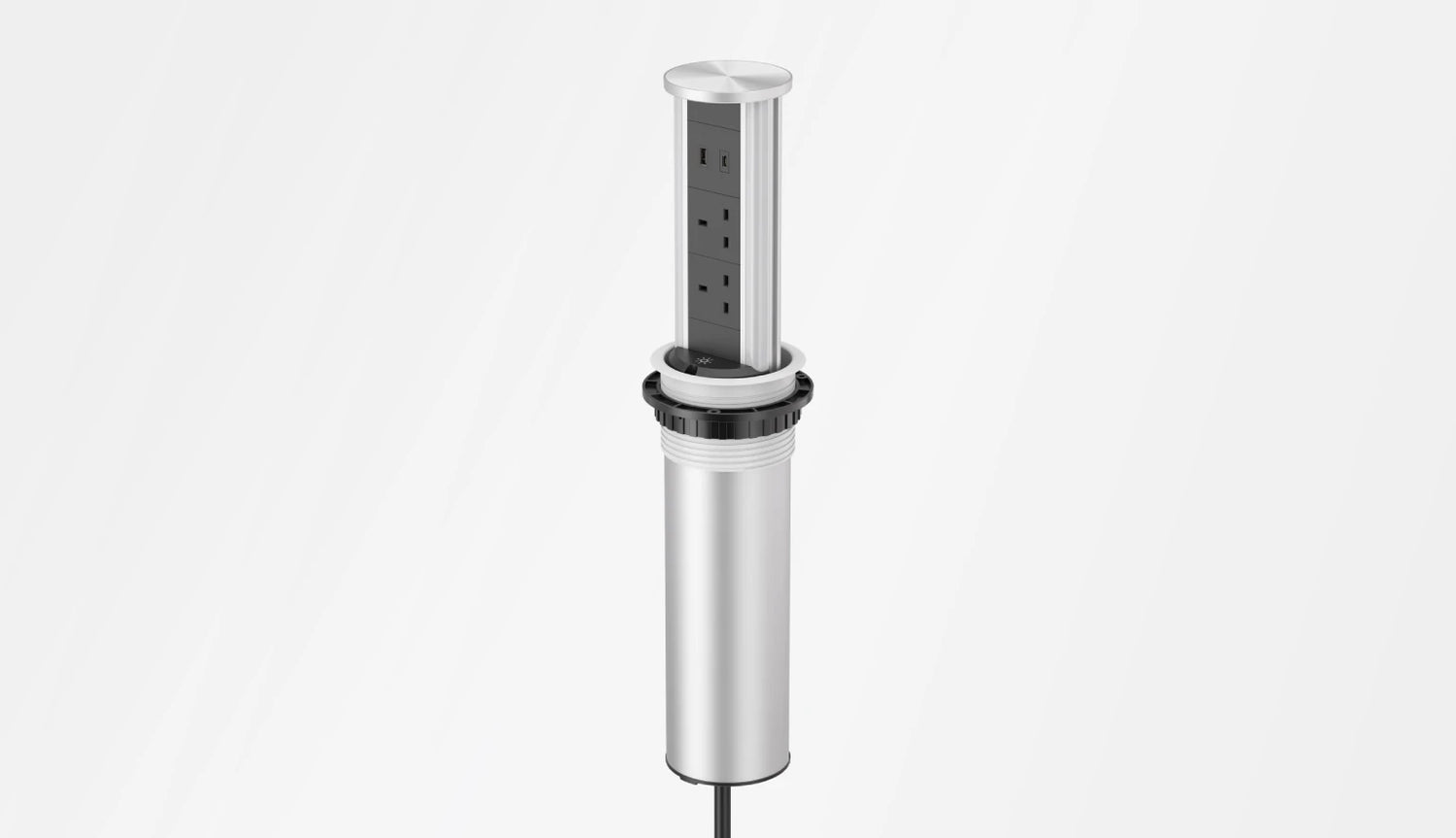

Elegant design, high-quality build
Constructed with an extruded aluminium body and a low-profile top.
Simple operation

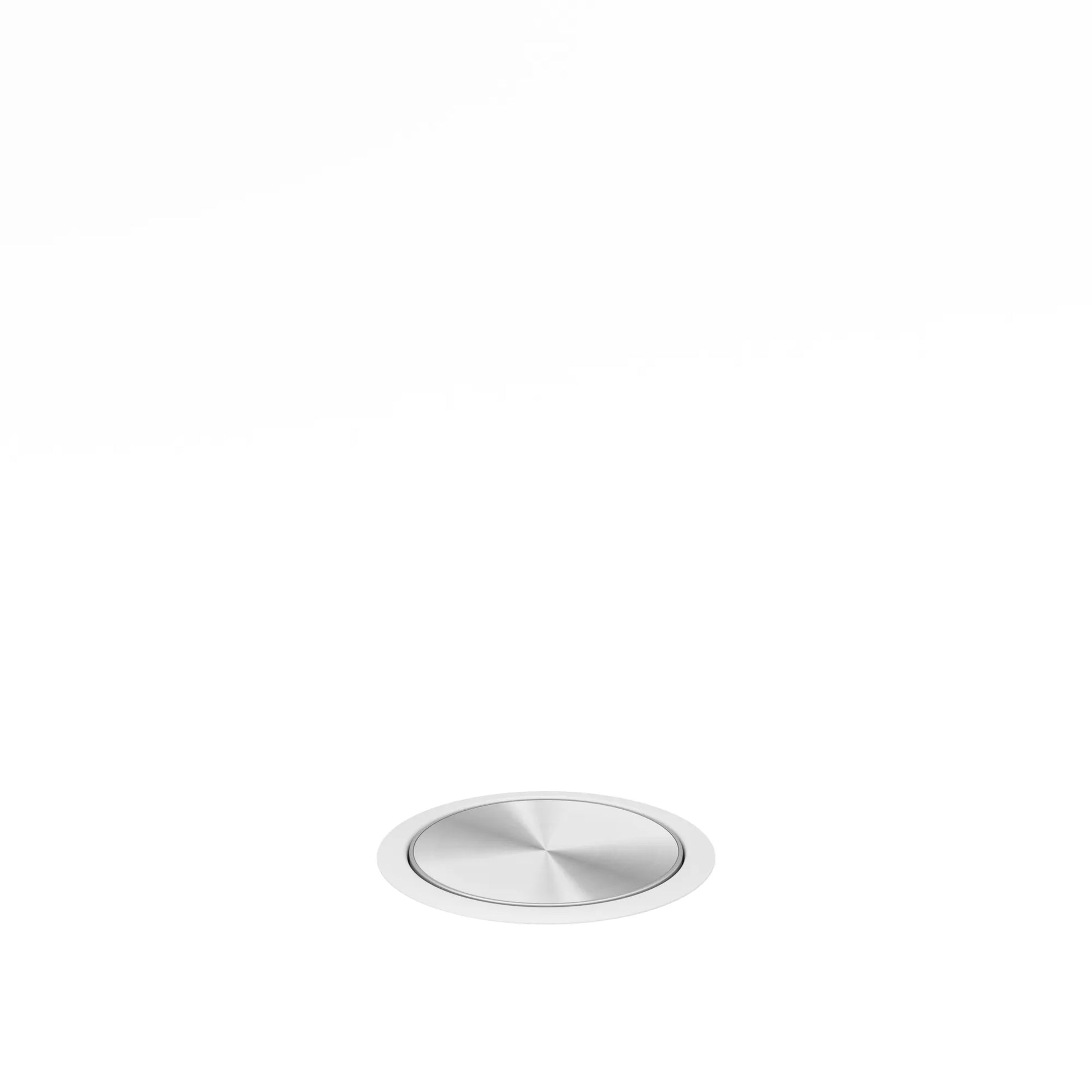

Press and release the top to raise the unit; push it down until it clicks to retract it.
Maximum output
10A, 250V AC, 50Hz and 2,500W maximum total load. USB-C up to 65W, USB-A up to 30W and wireless charging up to 10W.
Use as specified
IP20 for indoor, dry-location use. Follow the supplied instructions and do not exceed 10A / 2,500W total.
Technical sheet
Download the current V16S-UK technical sheet and installation information.
