Single-touch motorised lift
Touch the top control to raise or retract the socket.
Product guide

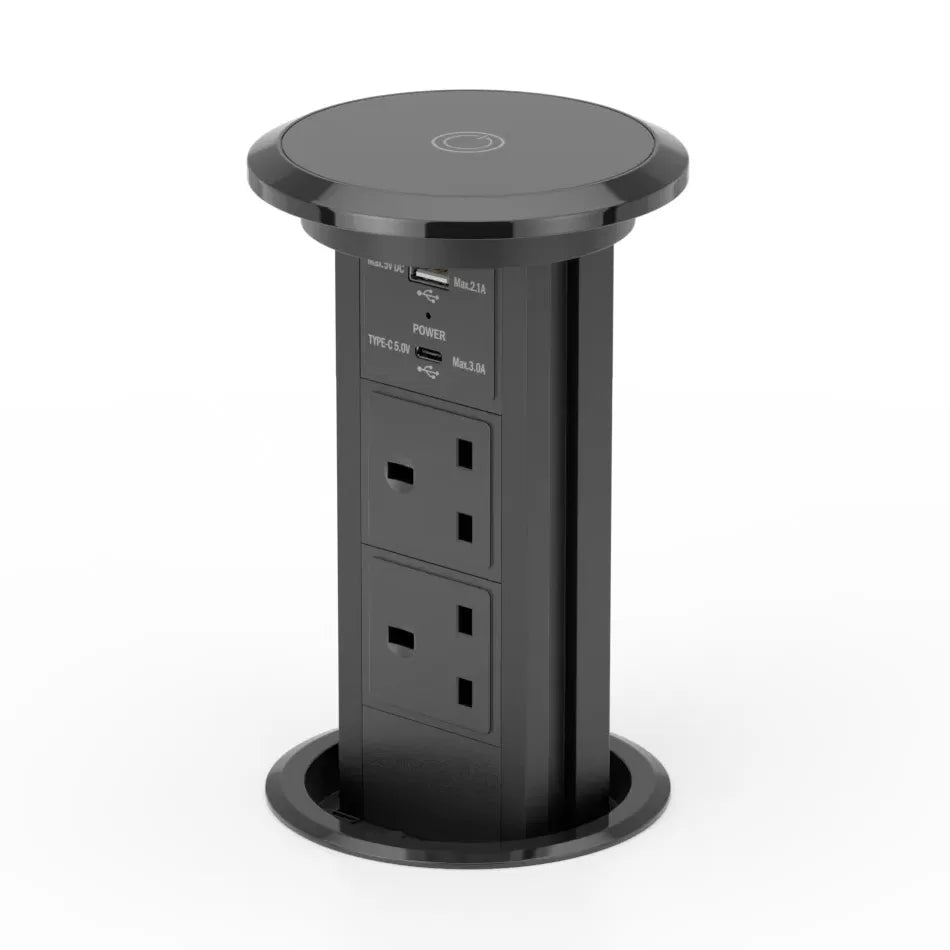

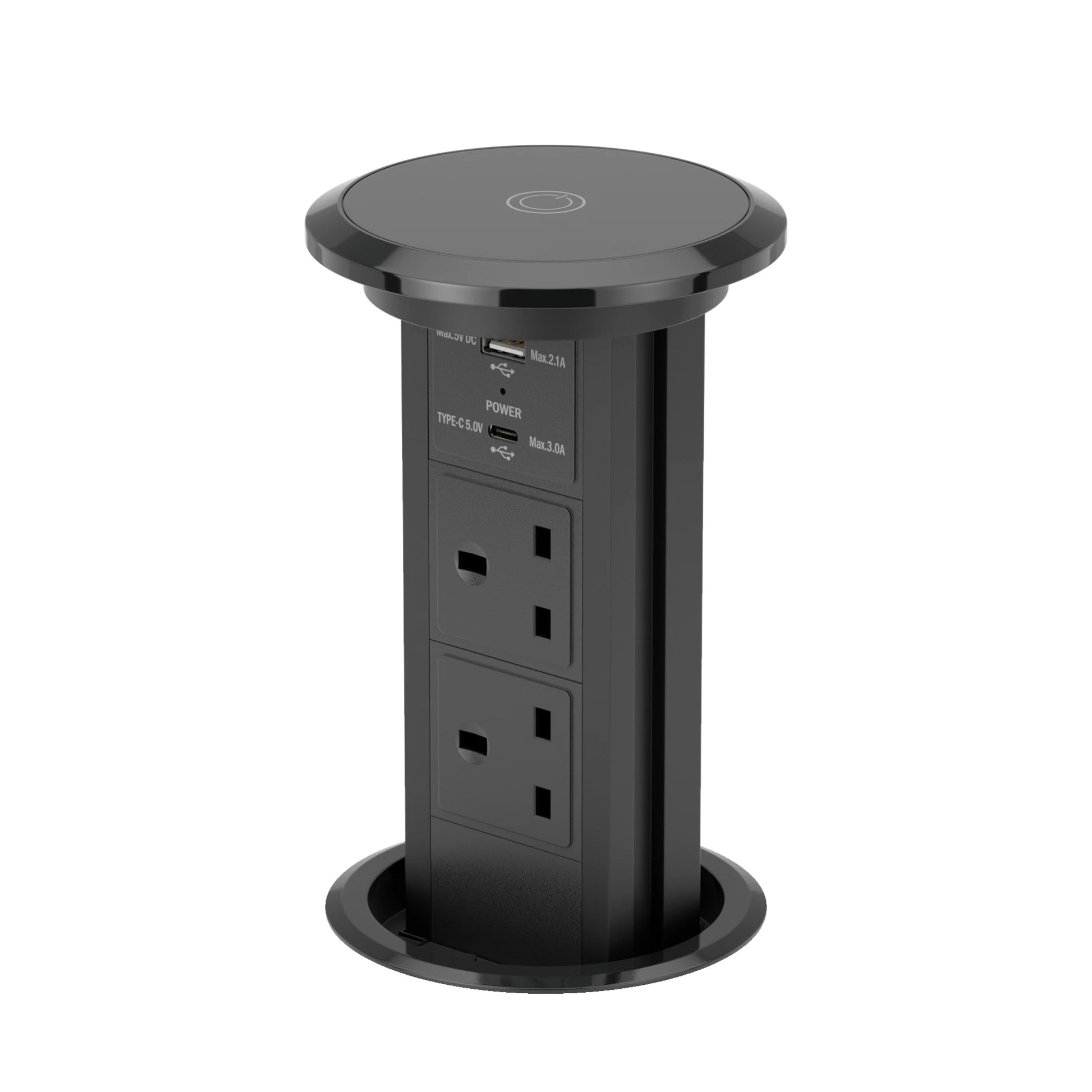

The V3C-UK is a black top ring, black body and black sockets motorised pop-up socket with two UK sockets, USB-A, USB-C and wireless charging.
Features
The key functions and connections at a glance.
Power and USB
Two UK sockets, one USB-A port and one USB-C port.
Wireless charging
Charge compatible devices on the top surface at up to 10W.
Installation planning
Confirm the opening, clearance and electrical connection before cutting the worktop.
95mm opening
Plan a 95mm installation opening with a ±3mm tolerance.
430mm clearance
Allow 430mm below the top surface for the unit and cable.
Fitted UK plug
Supplied with a 1.8m lead and fitted UK plug. No hardwiring is required for normal installation.
Important: IP54 applies only when the unit is fully closed; it is IP20 when open. Keep liquids away from exposed sockets and USB ports. Do not exceed 13A / 3,000W total.
Specifications
Use these details with the supplied instructions and the rating label on the product.
Electrical
230V AC nominal, 50Hz; 13A and 3,000W total maximum. Class I.
Charging
USB-A: 5V/2A. USB-C: 5V/3A. Wireless charging: up to 10W.
Construction
Black top ring, black body and black sockets; polyamide, ABS and anodised aluminium. IP54 closed / IP20 open. 24-month warranty.
Downloads and support
Review the current technical sheet before installation.
Frequently asked questions
Is it waterproof?
No. The unit is rated IP54 only when fully closed and IP20 when open. Keep liquids away from exposed sockets and USB ports.
What opening is required?
Plan a 95mm opening with a ±3mm tolerance and confirm the current technical sheet before cutting.
Does it need hardwiring?
No hardwiring is required for normal plug-and-play installation. Use an appropriate trade professional for worktop cutting or any electrical alteration.
The difference between ordinary and extraordinary is that little extra
95mm installation opening
Fits a 95mm opening (±3mm). Check the current technical sheet and the required space below the worktop before cutting.
IP54 when fully closed
Rated IP54 only when fully closed and IP20 when open. Keep liquids away from exposed sockets and USB ports.
Wireless charging
Place your mobile phone on the top to charge it.
Power and charging
Two UK sockets, one USB-C port (5V/3A), one USB-A port (5V/2A) and wireless charging up to 10W.
Plug and play
A single cable plugs into a UK wall socket.
Elegant design, high quality build
Constructed with an extruded aluminium body and hardened-glass top.
Use as specified
Read the supplied instructions before installation and use. Do not exceed the stated total load or use the unit in an unsupported configuration.
