Double-tap motorised lift
Double-tap the top control to raise or retract the unit.
Product guide
A slim motorised pop-up socket with two UK sockets, three USB ports and wireless charging.
Features
The key functions and connections at a glance.
Power and USB
Two UK sockets, two USB-A ports and one USB-C port.
Wireless charging
Charge compatible devices on the top surface at up to 5W.
Installation planning
Confirm the opening, clearance and electrical connection before cutting the worktop.

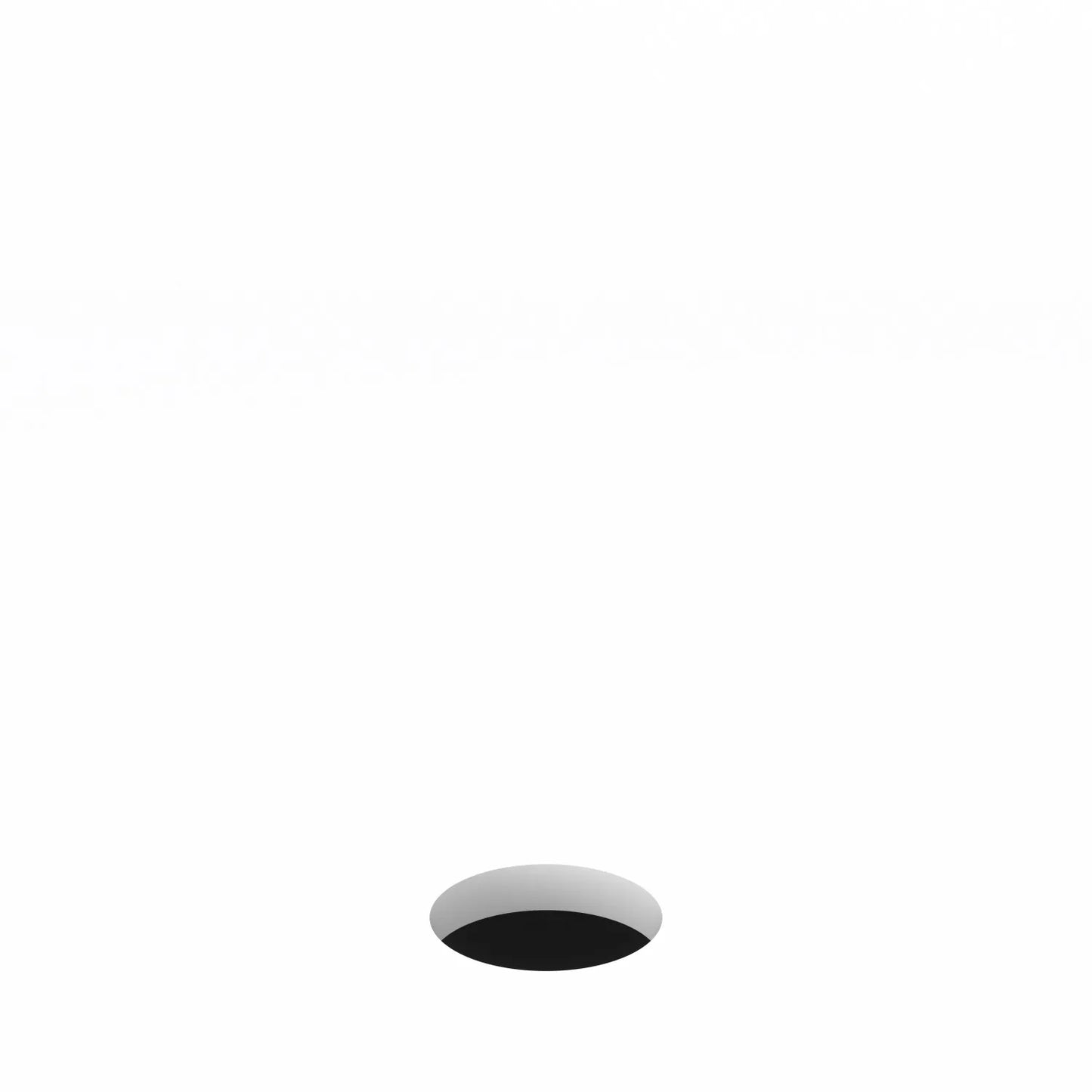

65mm opening
Plan a 65mm installation opening with a ±5mm tolerance.
560mm clearance
Allow 560mm below the top surface for the unit and cable.
Fitted UK plug
Supplied with a 1.8m lead and fitted UK plug. No hardwiring is required for normal installation.
Important: The unit is IP20 when open and must not be treated as waterproof. Do not exceed 10A / 2,400W total.
Specifications
Use these details with the supplied instructions and the rating label on the product.
Electrical
240V AC nominal, 50Hz; 10A and 2,400W total maximum.
USB charging
Each port supports up to 5V/3A, 9V/2A or 12V/1.5A when used alone. Shared output is 5V/3A when two or more USB ports are used.
Construction
Black top, body and sockets; PVC, ABS and aluminium. IP20 when open. 24-month warranty.
Downloads and support
Review the current technical sheet before installation.
Frequently asked questions
How does it open?
Double-tap the top control to raise or retract the unit.
What opening is required?
Plan a 65mm opening with a ±5mm tolerance and confirm the technical sheet before cutting.
Is it waterproof?
No. The closed lid includes a seal to help keep everyday splashes and debris away, but the open unit is IP20.
It’s the finer details that set the best homes apart
Power when you need it, hidden when you don't. Choose a pop up power socket.
Qi wireless charging lid
Place your mobile device on the top for charging

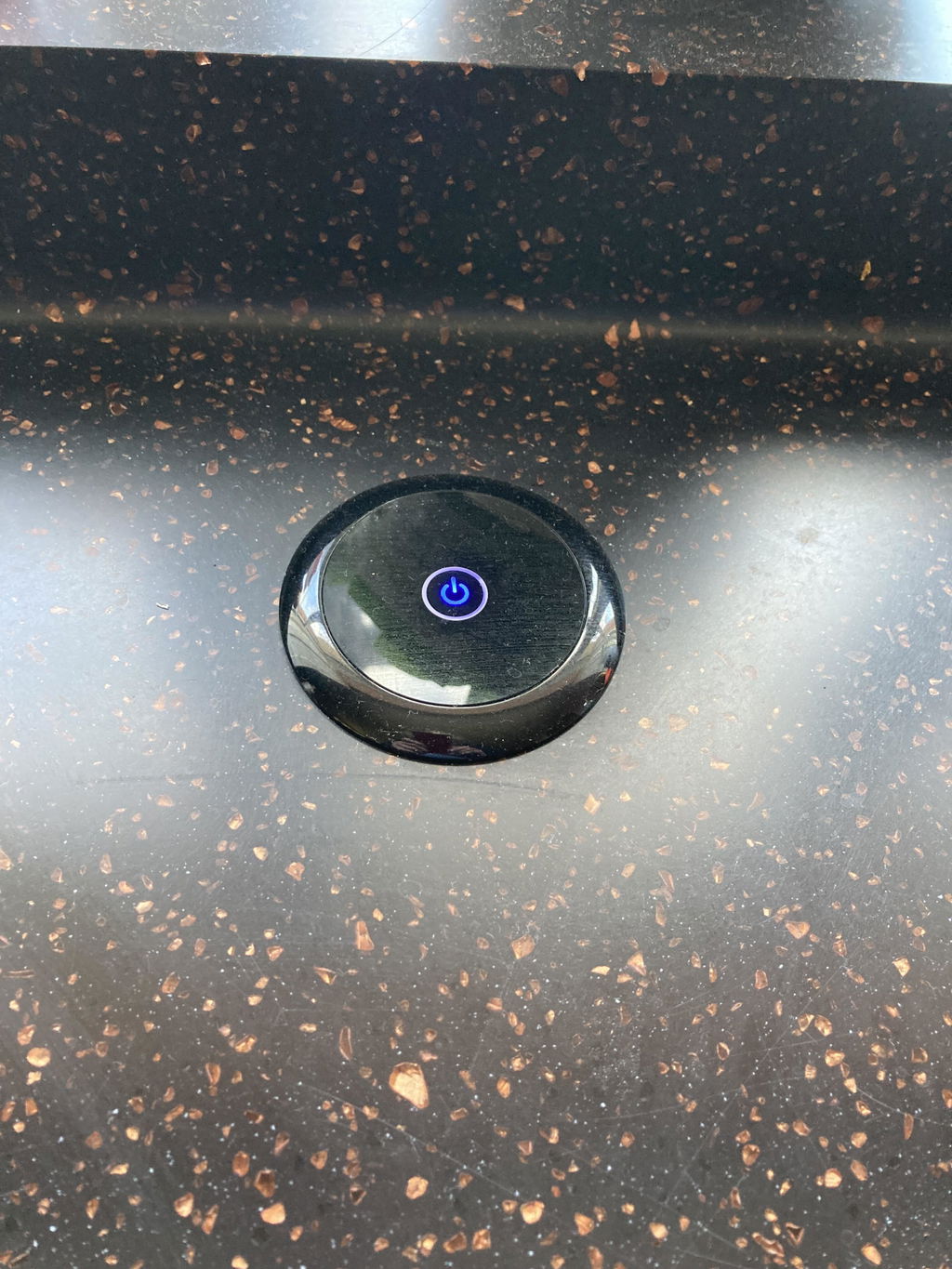

Closed-lid protection
The closed lid includes a seal to help keep everyday splashes and debris away. The unit is IP20 when open; keep open connections dry and do not use the product in wet locations.
65mm installation opening
Fits a 65mm opening (±5mm). Check the required clearance below the worktop before cutting.
Plug and play
Supplied with a 1.8m lead and fitted UK plug. No hardwiring is required for normal installation.
Elegant design, high quality build
Constructed with an extruded aluminium body and hardened-glass top

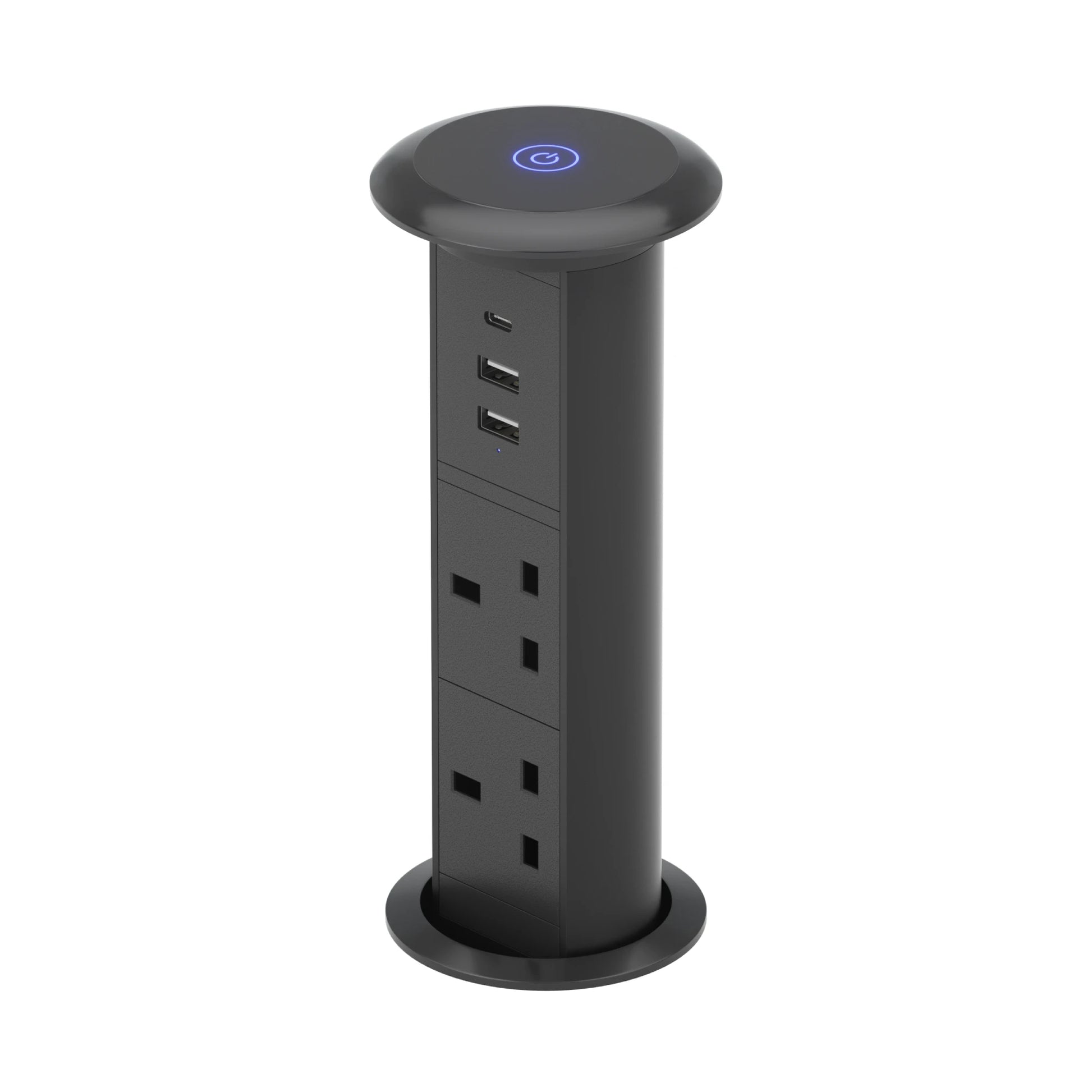

Form follows function
Two power outlets, two USB-A charging ports, one USB-C charging port and a Qi wireless charging top
Maximum output
10A / 2,400W total maximum. USB charging is shared according to the combinations shown in the specifications; wireless charging is up to 5W.
Use as specified
Read the supplied instructions before installation and use. Keep within the stated total load and do not treat the open unit as water resistant.
