Model: V3LW

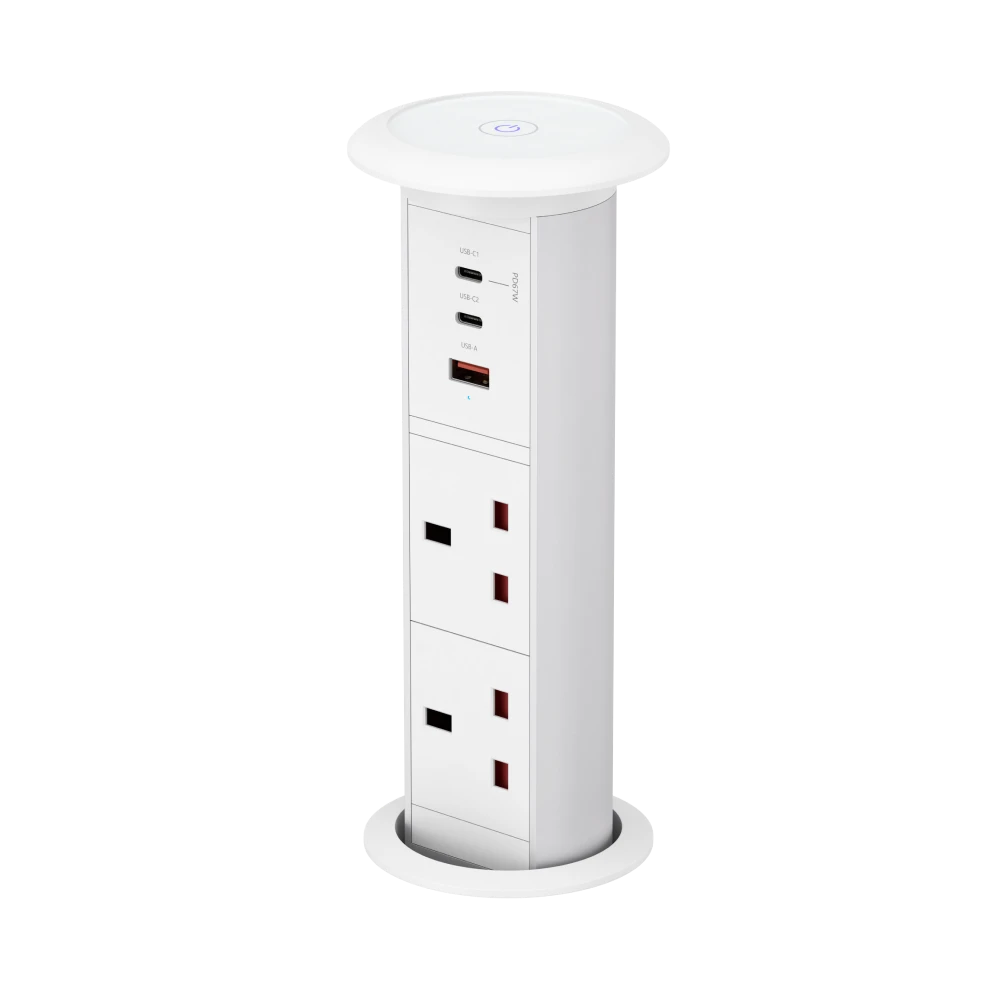

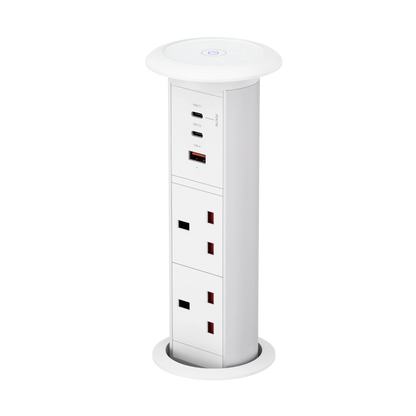

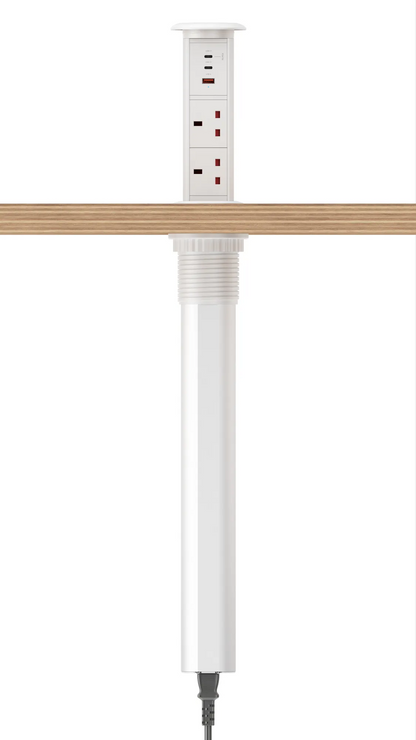

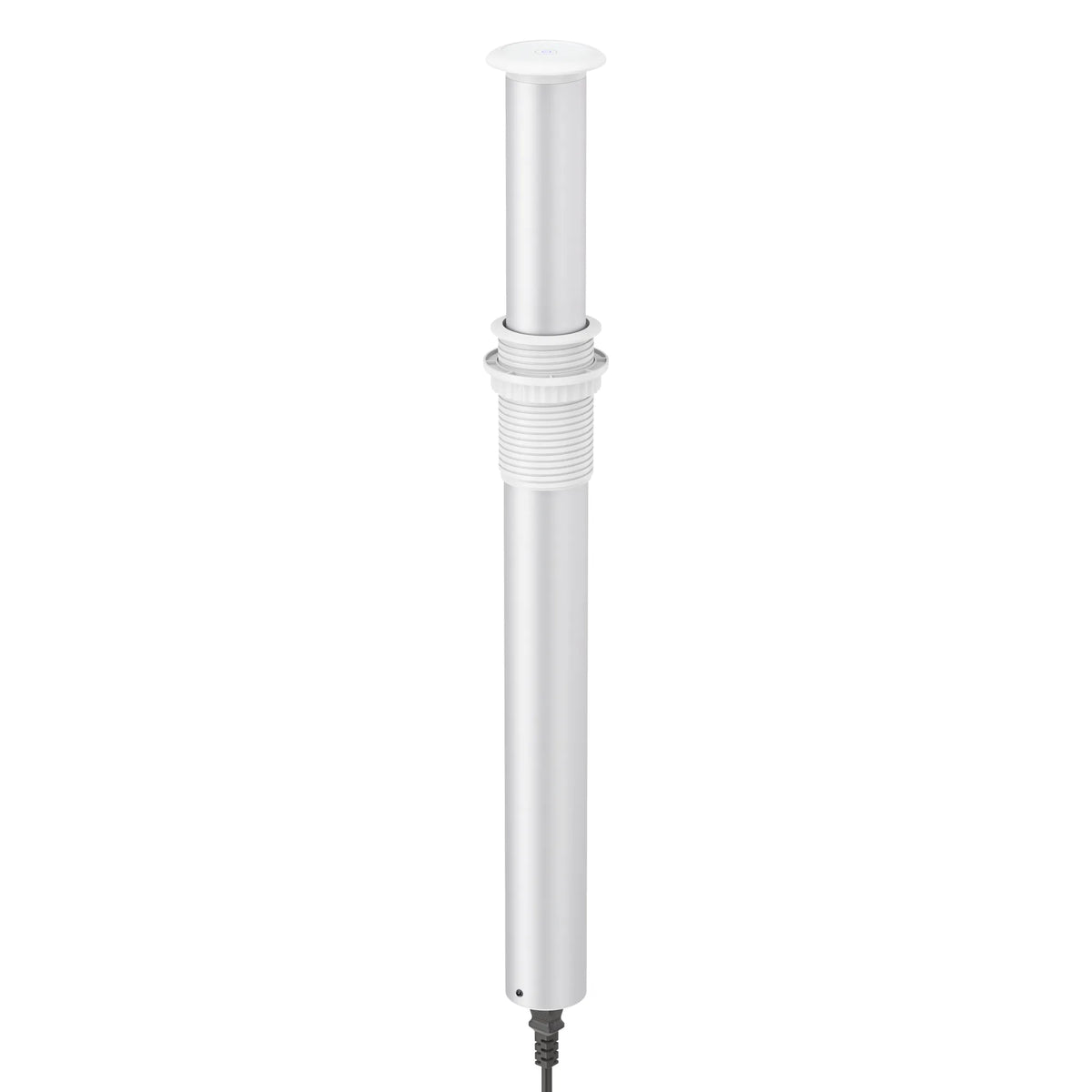

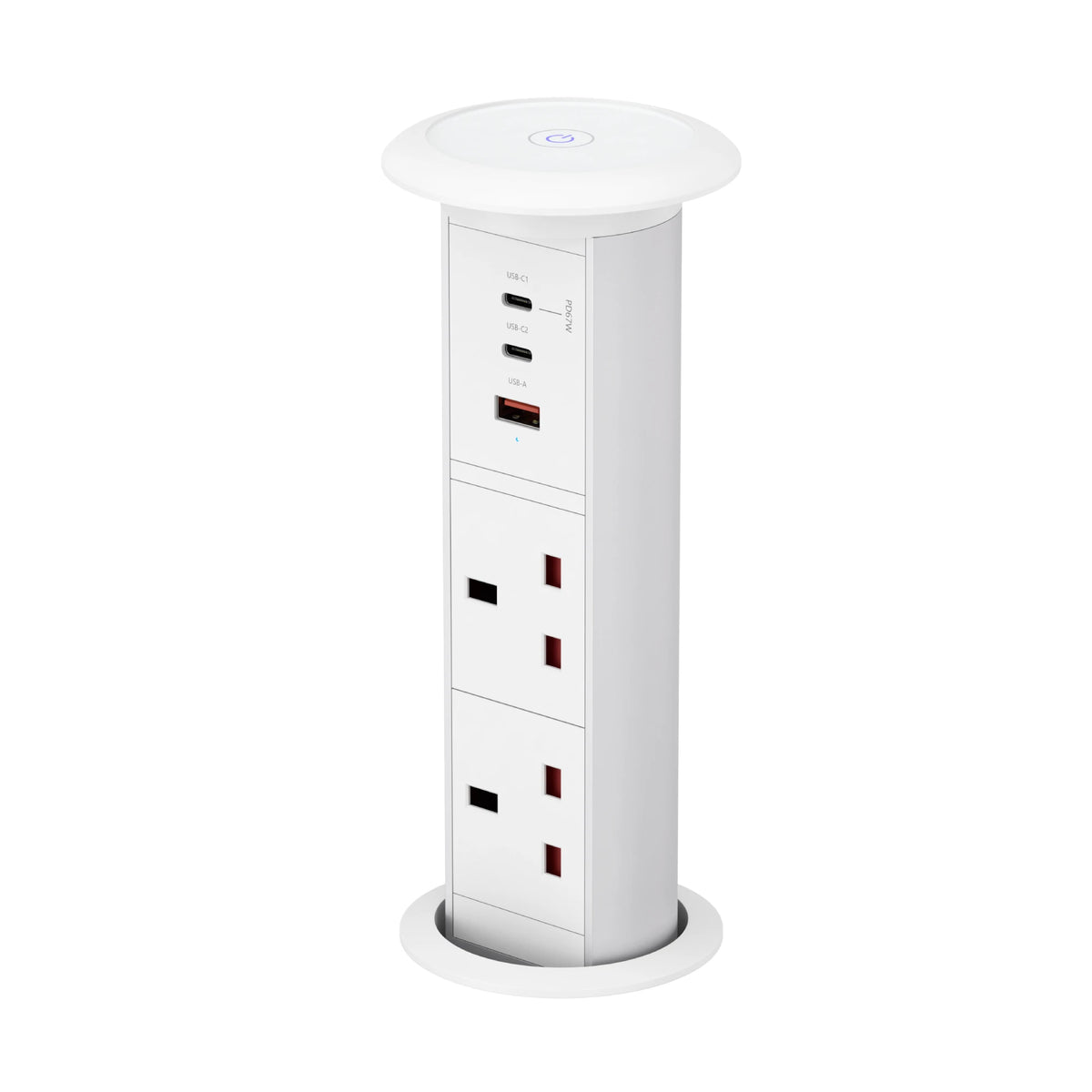

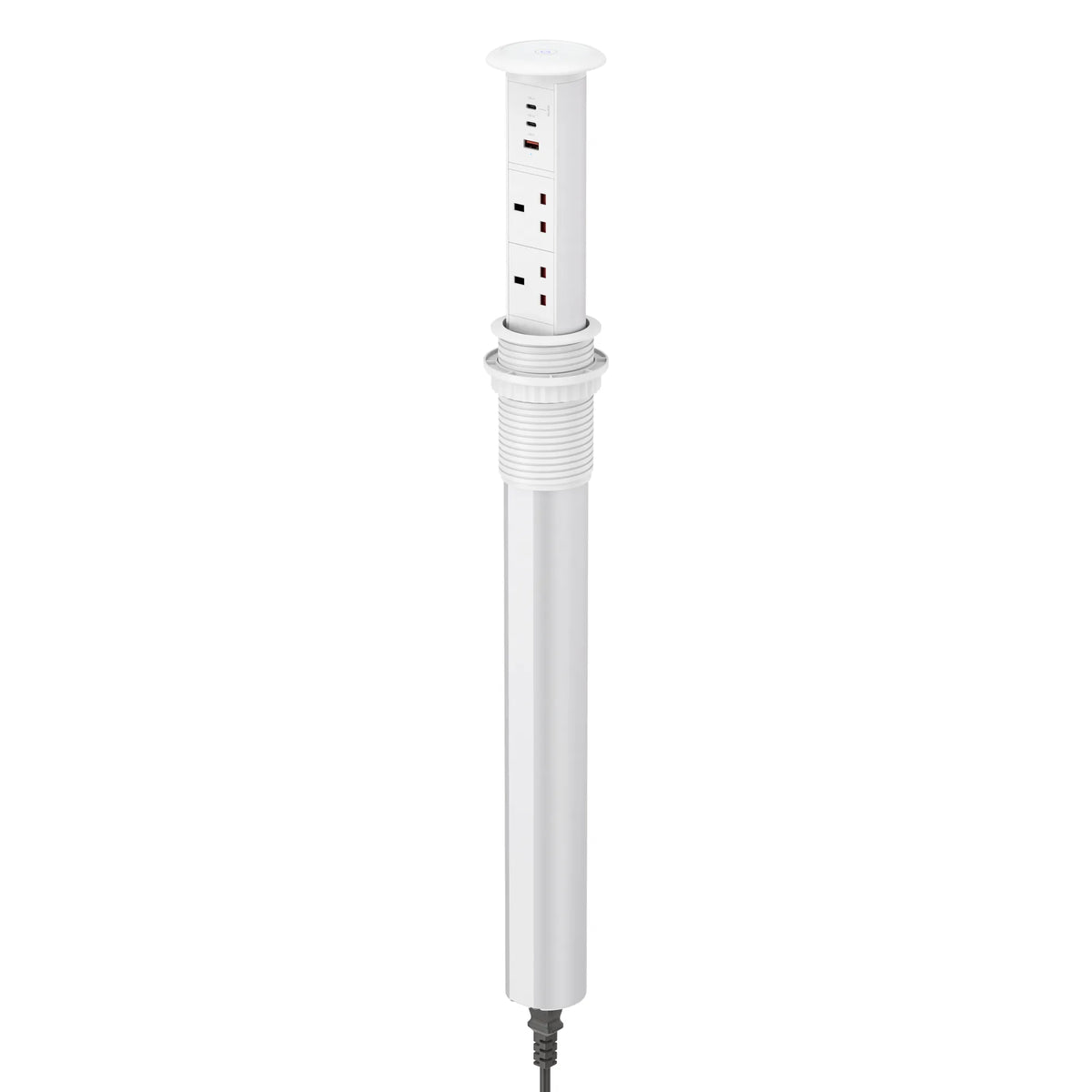

White Motorised Pop Up Power Socket

Regular price £209.95 GBP
Regular price Sale price £209.95 GBP
Sale Sold out

incl. VAT. Free UK delivery.

A white motorised pop-up socket that sits flush in your worktop. Double-tap the lid and it rises with two UK sockets, USB-C, USB-A and wireless charging.

  • 2 UK sockets, 2 × USB-C (one up to 67 W) and 1 × USB-A
  • Qi wireless charging on the lid, up to 10 W
  • Fits a 65 mm hole (65–70 mm) and plugs in below, with no hardwiring

In stock in the UK, 24-hour dispatch

Quantity
Buy now
View full details

Why the V3LW

Motorised power, fast charging and wireless convenience, hidden in your worktop.

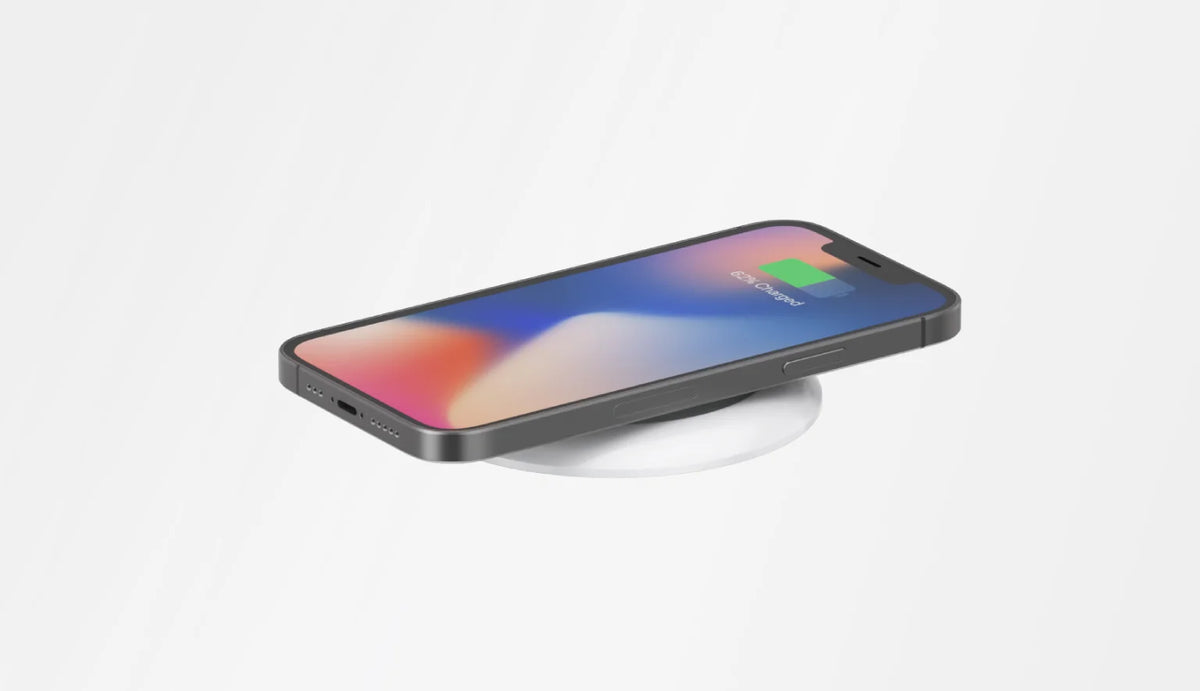

Qi wireless charging lid

Place your phone on the lid to charge it at up to 10 W.

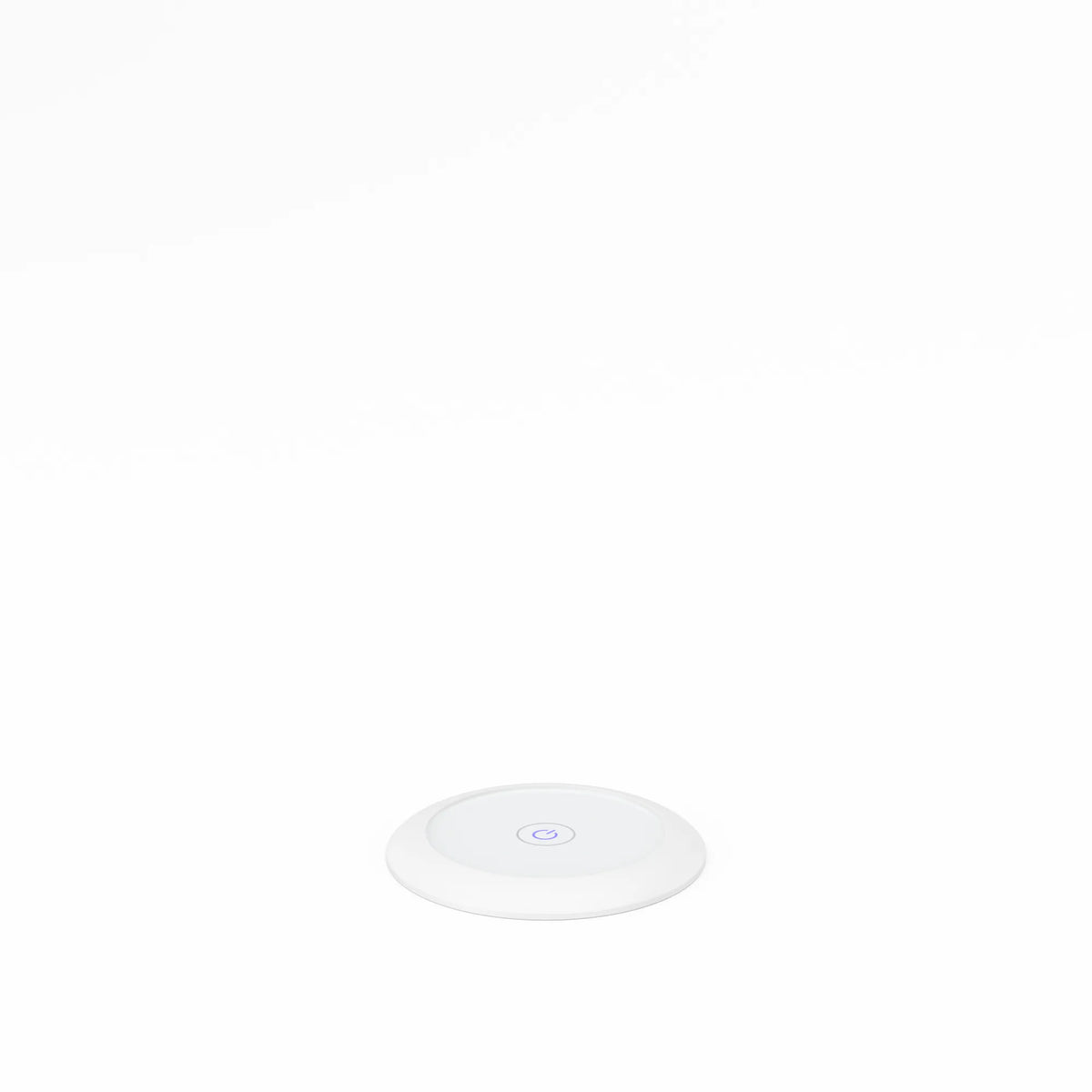

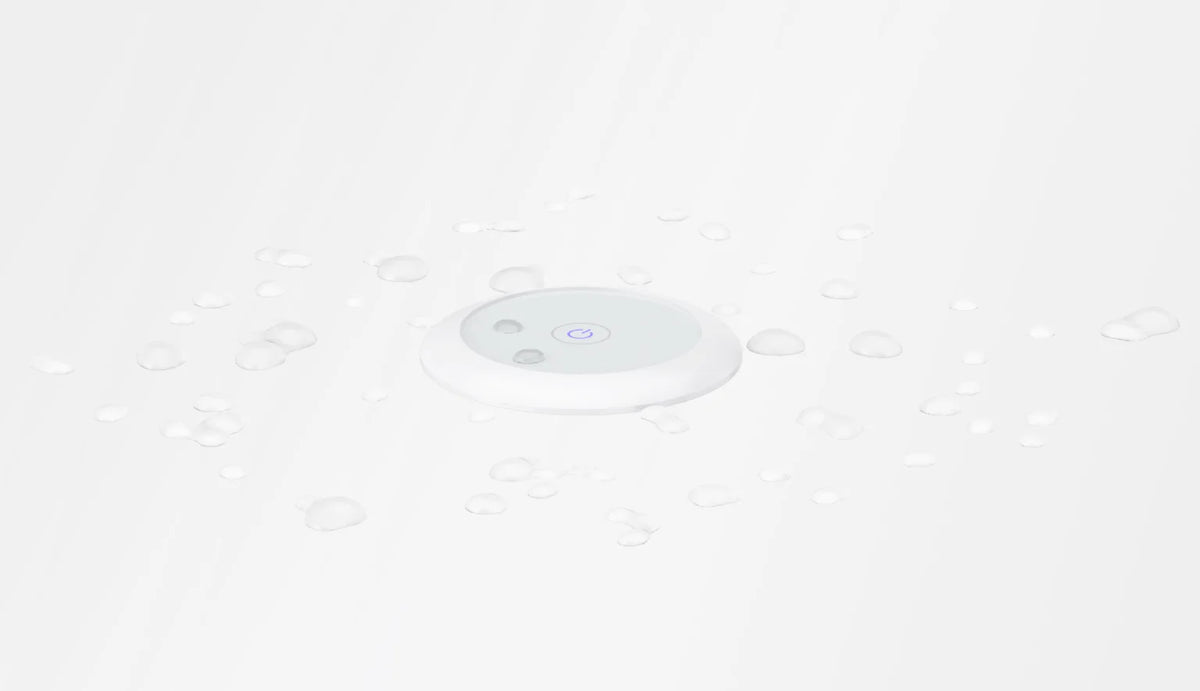

Closed-lid protection

A seal in the closed lid helps keep everyday splashes and crumbs out. IP20 when open.

Pop Up Power Outlet Hole Diagram

Fits a 65 mm hole

Anything from 65 to 70 mm fits. The 76 mm flange covers the edge.

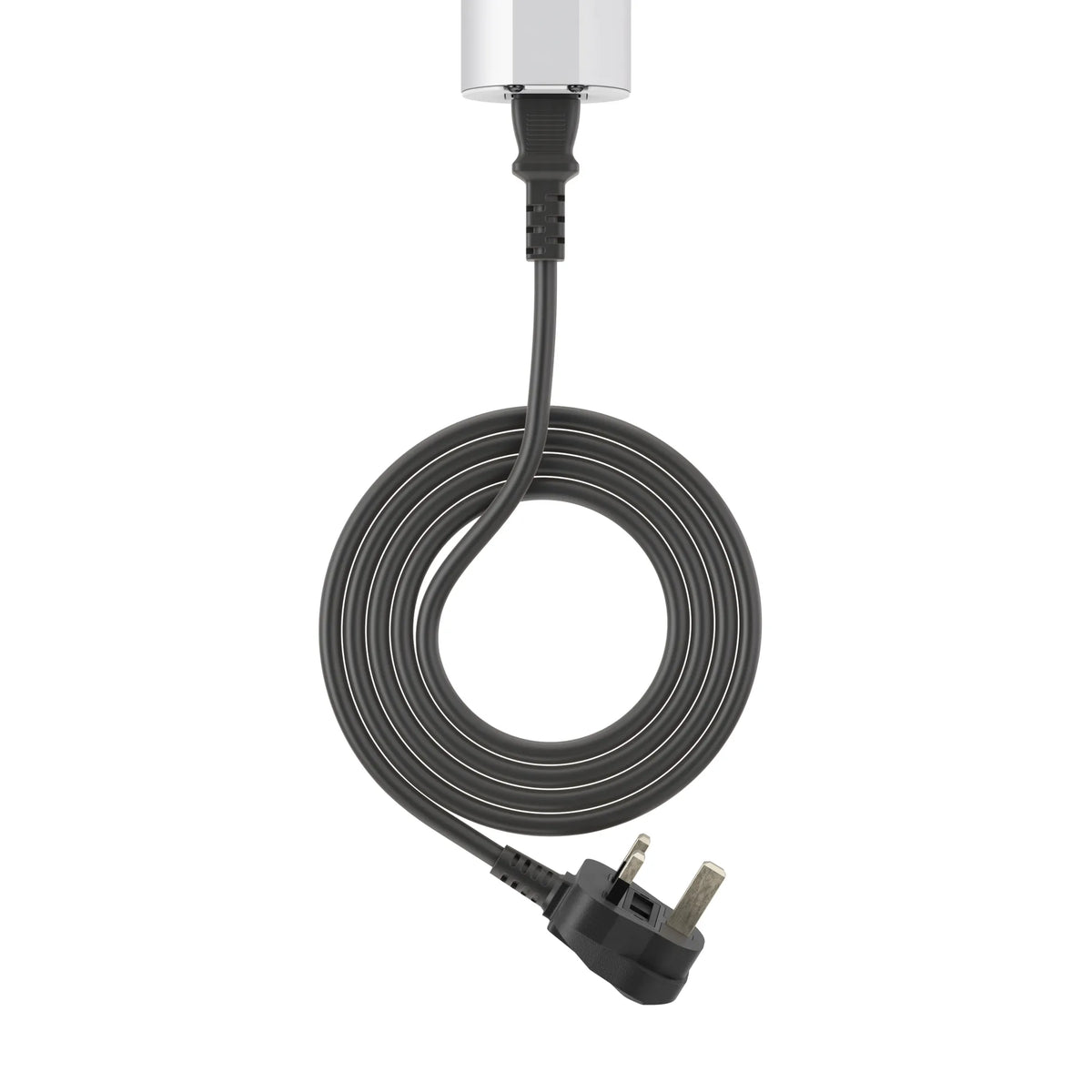

V3L 13A Plug and Fuse

Plug and play

A 1.8 m detachable lead with a fused UK plug. No hardwiring.

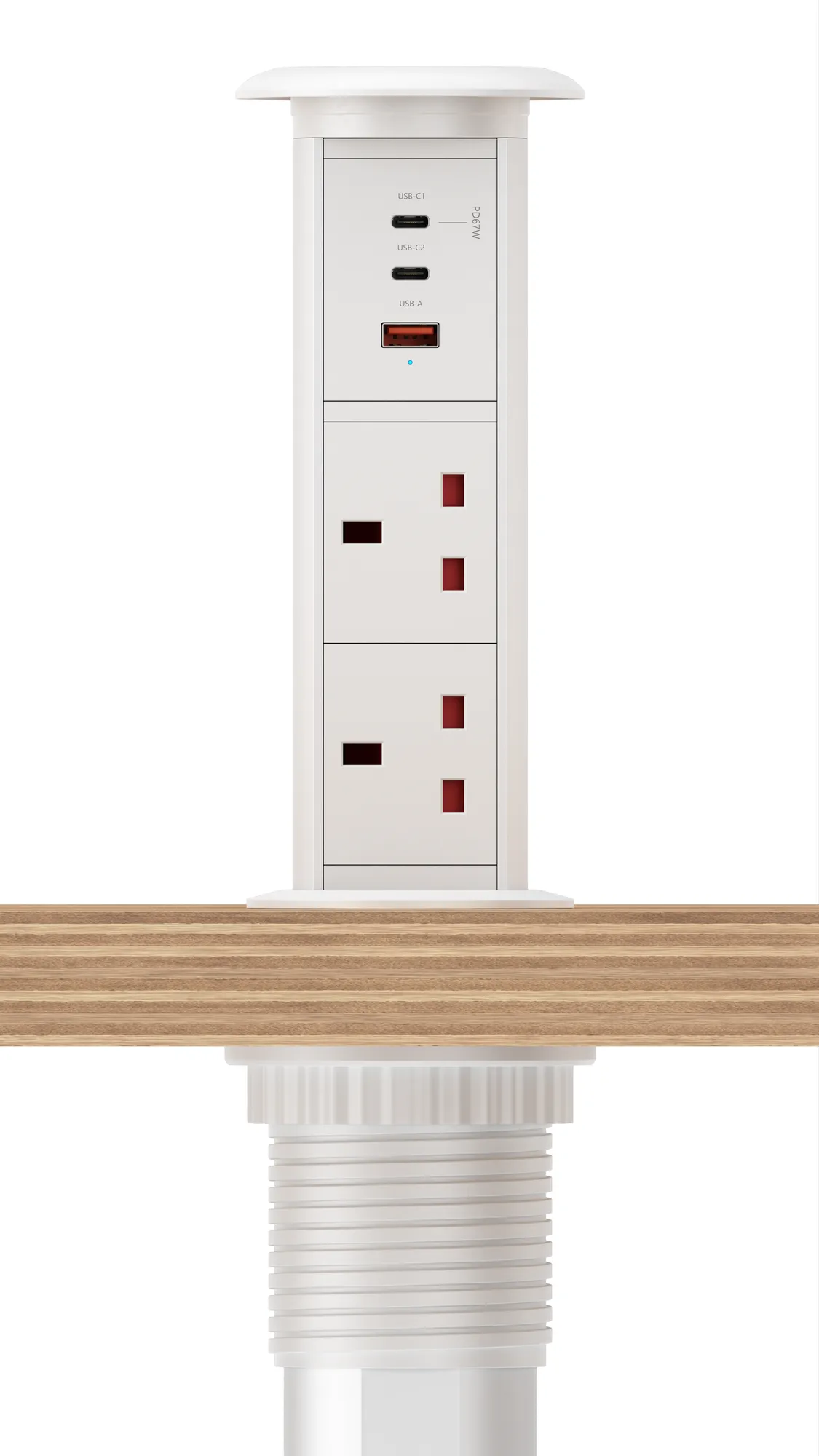

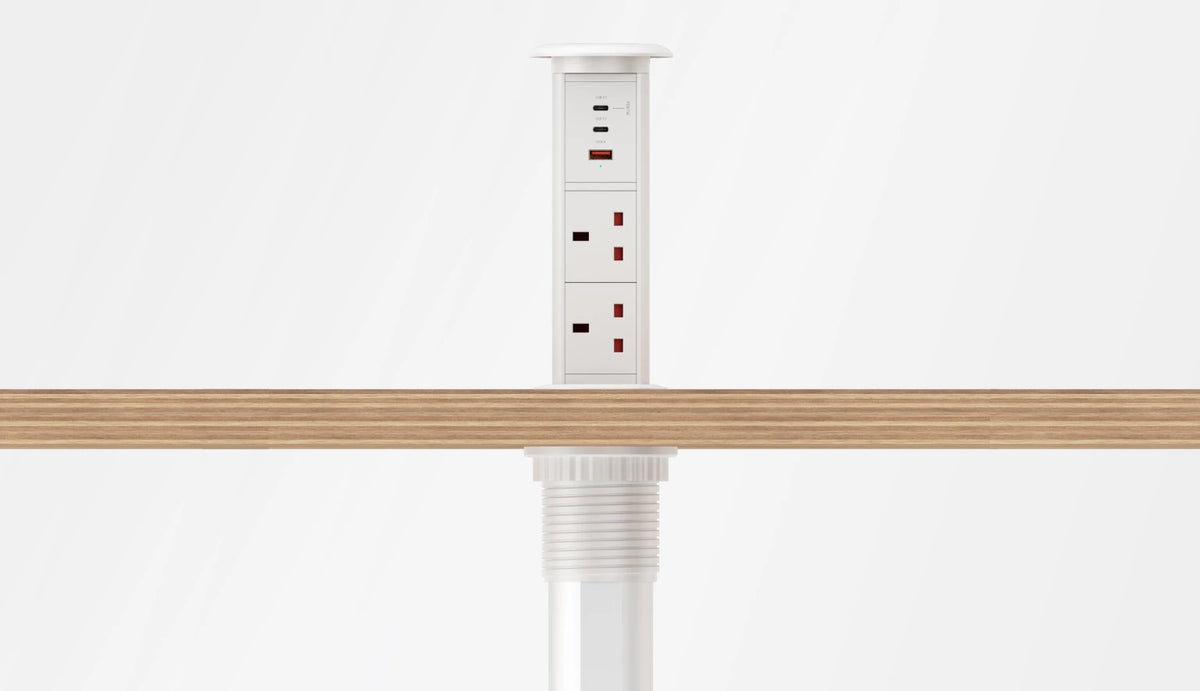

Elegant, high-quality build

An extruded aluminium body with a slim, low-profile lid.

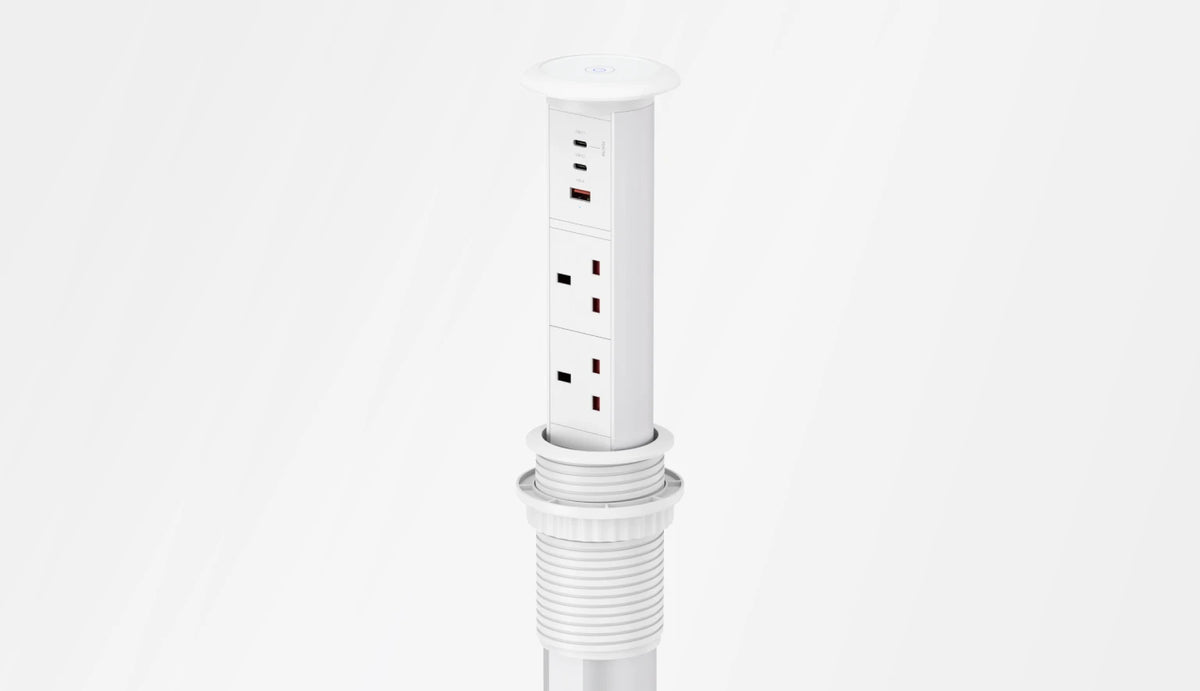

Form follows function

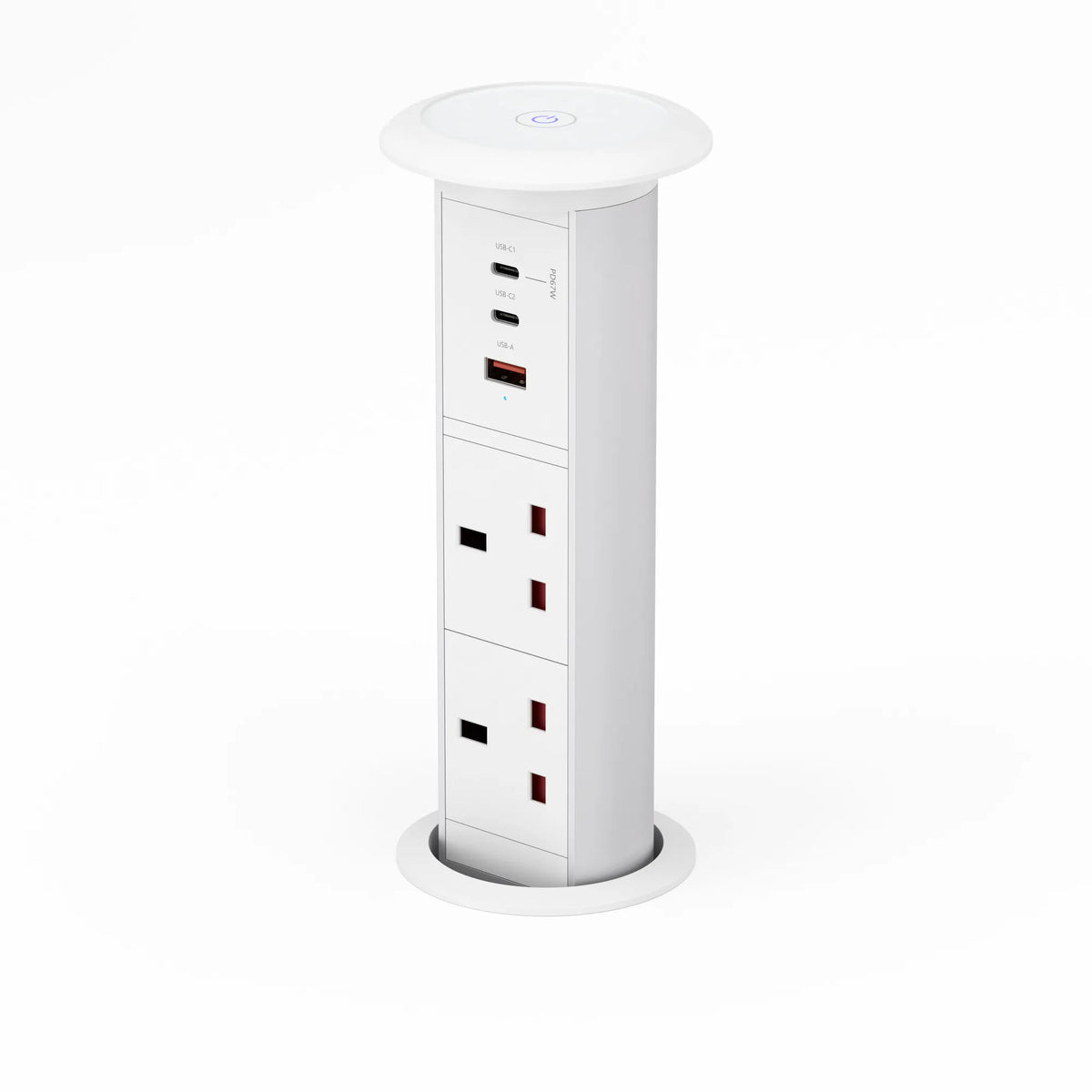

Two UK sockets, two USB-C ports and a USB-A port, with a Qi charging lid. USB-C1 gives up to 67 W for laptops.

Before you buy

Check these four things and the V3LW will suit your worktop.

65mm Hole

65–70 mm fits. One of the smallest in our range.

80mm Max. worktop thickness

Stone, timber or laminate.

580mm Space below

From the top of the worktop, plug included.

1.8m Lead

To a socket below.

Installs in six steps

No electrical work needed. It plugs into a socket under the worktop.

  1. 1

    Step 1: Check the space: worktop up to 80 mm thick, 580 mm clear below, and a socket within reach of the 1.8 m lead.

  2. 2

    Step 2: Tape the 1:1 template in place, mark the centre and cut a 65 mm hole (65–70 mm fits).

  3. 3

    Step 3: Unscrew the locking ring from the body and take it off.

  4. 4

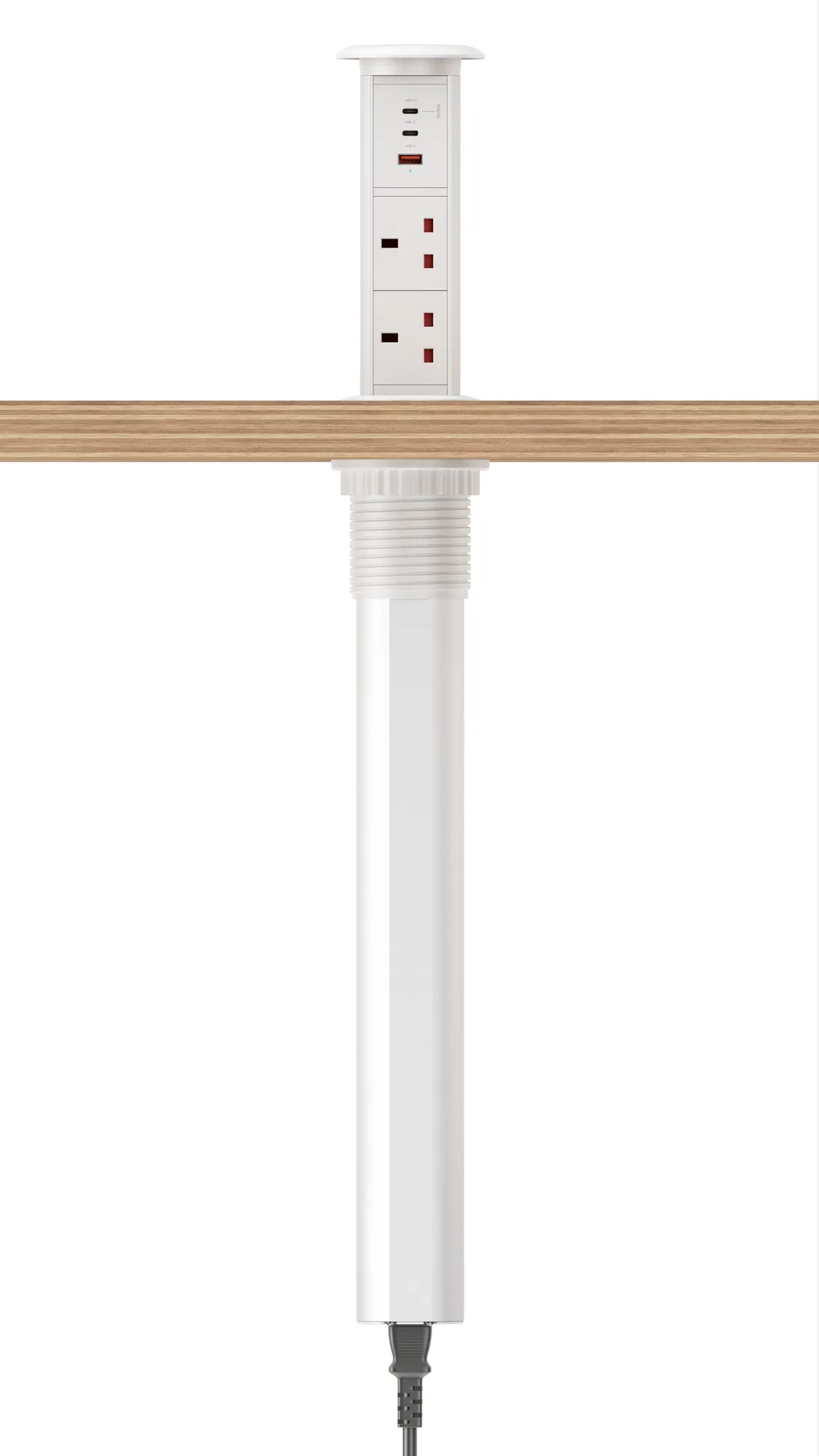

    Step 4: Feed the body down through the hole until the flange sits flat on the worktop.

  5. 5

    Step 5: From under the worktop, screw the ring back up and tighten it against the underside. Don’t over-tighten.

  6. 6

    Step 6: Push the lead into the inlet under the unit, plug it in and double-tap to raise it and check the sockets and USB ports.

Full instructions are in the user manual.

Tech specs

Hole size

The threaded body has to fit through the hole, and the flange has to sit on the worktop around it.

  • 60 mm Worktop

    Under 65 mm

    Too tight. The threaded body won’t go through.

  • 65–70 mm FlangeRingBodyWorktop

    65–70 mm

    Just right. The body drops through and the 76 mm flange sits on the worktop.

  • 75 mm Worktop

    Over 70 mm

    Too loose. The 76 mm flange has too little worktop to sit on.

Cross-sections, not to scale.

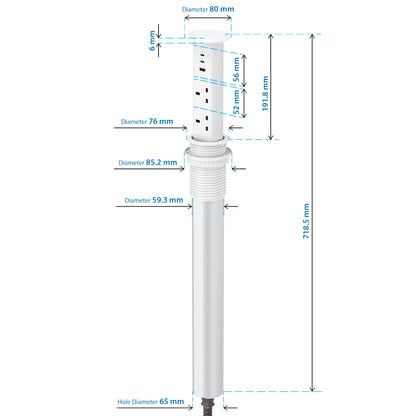

Size and weight

Lid
Ø 80 mm
Flange
Ø 76 mm; covers the hole and rests on the worktop
Height when raised
198 mm above the worktop
Below the worktop
About 520 mm body; allow 580 mm clear, plug included
Length raised
718.5 mm, top to base
Weight
1.57 kg

Installation

Cut-out
65 mm (65–70 mm fits)
Worktop thickness
Up to 80 mm
Clear space below
580 mm from the top of the worktop
Lead
1.8 m, detachable, fitted UK plug with 13 A fuse
Inlet
IEC C14, under the unit

Electrical

Rated voltage
230 V AC, 50 Hz
Rated load
13 A, 3,000 W total
Power sockets
2 × UK
Lead
H05VV-F 3 × 1.5 mm²
Protection
IP20 when open, indoor dry locations

Charging

USB-C1
Up to 67 W (5–20 V Power Delivery)
USB-C2
Up to 20 W
USB-A
Up to 18 W
USB-C1 + USB-C2
45 W + 20 W
USB-C1 + USB-A
45 W + 18 W
USB-C2 + USB-A
15 W shared
All three ports
45 W + 15 W
Wireless
Qi, up to 10 W

Product

Model
V3LW-UK
Finish
White lid and sockets, silver aluminium body
Materials
Glass lid, PVC, ABS and aluminium
Lift
Motorised, double-tap button
Operating temperature
0–40 °C
Warranty
24 months, extendable to 4 years
Box
60 × 19 × 14 cm, 2.9 kg

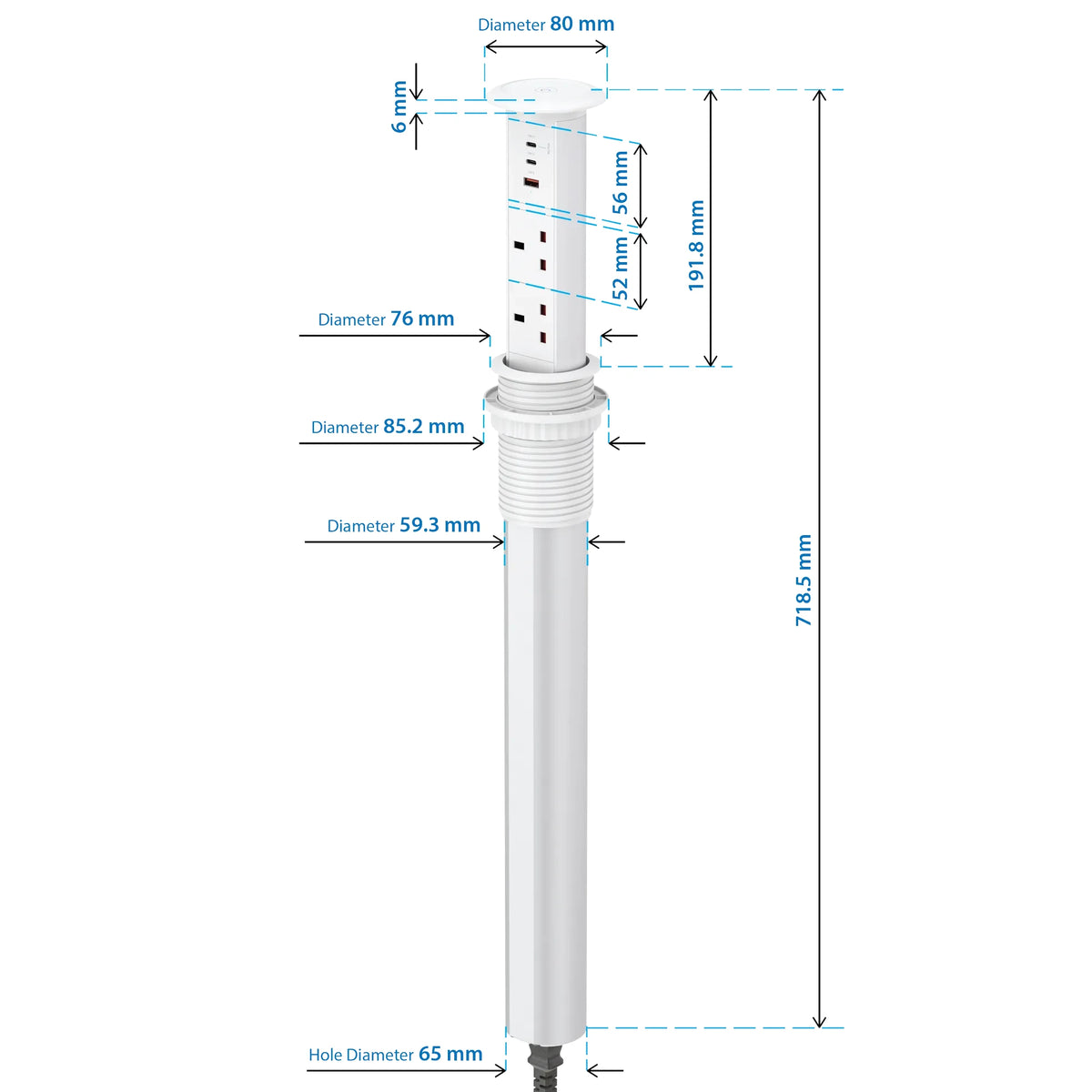

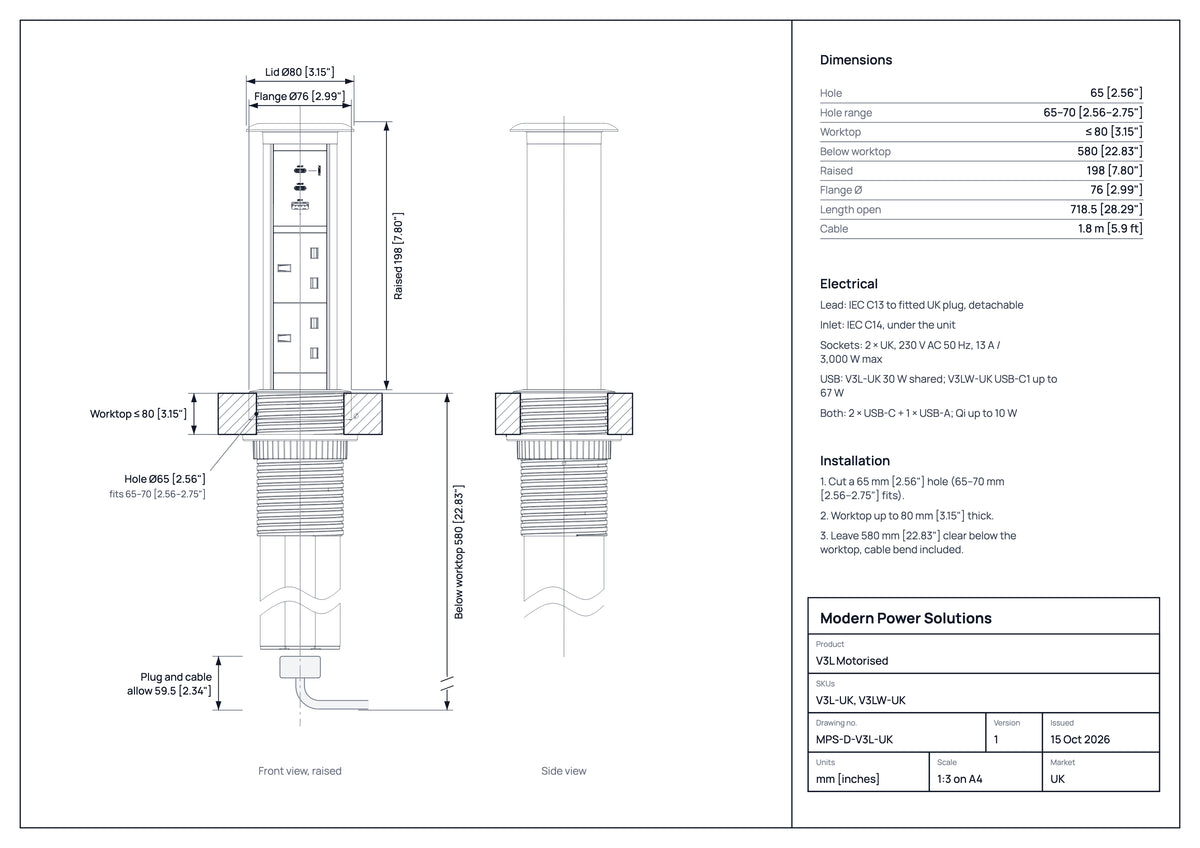

Dimensions and cut-out

Check the hole size, worktop thickness and the space needed below before you install. Select the drawing to open it full size.

V3L Motorised dimensions drawing: hole size, countertop thickness and space below (opens full size in a new tab)
Version 1. Sizes in mm [inches]. Open full size ↗

Which pop-up is right for you?

V3LW

£209.95

You're viewing this one
  • Motorised lift
  • 65 mm cut-out
  • 2 × UK sockets
  • USB-C up to 67 W, USB-C 20 W, USB-A
  • Qi wireless up to 10 W
  • No light

V3C

£215.95

  • Motorised lift
  • 95 mm cut-out
  • 2 × UK sockets
  • USB-C up to 15 W, USB-A
  • Qi wireless up to 10 W
  • No light

V16

£149.95

  • Gas-strut lift
  • 102 mm cut-out
  • 2 × UK sockets
  • USB-C up to 65 W, USB-A up to 30 W
  • Qi wireless up to 10 W
  • Dimmable LED light

Safety and care

Where to use it

  • Indoor, dry worktops only (IP20 when open).
  • Keep the raised unit and any plugs in it dry.

Power

  • Don't exceed 13 A / 3,000 W in total.
  • Use only the supplied lead; don't cut or modify it.

Installing

  • Keep 580 mm below the worktop clear of shelves, drawers and pipes.
  • If you need a new socket, use a qualified electrician.

Lowering

  • Remove every plug and cable before lowering it.
  • Keep hands and objects clear while it moves.

Free UK delivery

From our UK warehouse, usually in 1–3 business days.

Shipping details

30-day returns

Change your mind within 14 days of delivery for a full refund.

Returns policy

2-year warranty

Extend it to 4 years with our warranty promotion.

How to extend

Questions?

Our team can help you choose and check your install.

Email us

Questions and answers

What size hole do I need?

65 mm. Anything from 65 to 70 mm fits; never cut outside that range. The worktop can be up to 80 mm thick, and you need 580 mm of clear space below the top of the worktop, which includes room for the plug under the unit. The 1:1 cut-out template marks the centre.

Do I need an electrician?

Not if there is already a socket under the worktop. The unit plugs in with its fused UK plug. Adding a new socket is fixed wiring and must be done by a qualified electrician.

Where can it go on a kitchen worktop?

The UK wiring rules (BS 7671) don’t set a distance from a sink, but IET guidance is to keep sockets at least 300 mm from the edge of a sink or draining board. Keep it away from the hob too. Plug it into a socket protected by a 30 mA RCD, which BS 7671 requires for sockets in homes. Read our pop up socket buying guide.

How do I raise and lower it?

Double-tap the button on the lid, then wait about a second. The built-in motor raises it; double-tap again to lower it. There are no springs to push down. Remove every plug and cable before lowering it.

Which charging ports are included?

Two USB-C ports, one USB-A port and a Qi wireless charging lid. USB-C1 gives up to 67 W on its own, USB-C2 up to 20 W and USB-A up to 18 W. With several ports in use, USB-C1 gives up to 45 W. Wireless charging is up to 10 W.

Can I charge a laptop from it?

Yes, from USB-C1, which gives up to 67 W on its own and 45 W while other USB ports are in use. USB-C2 gives up to 20 W.

How tall is it when raised?

It rises 198 mm above the worktop, and the lid is 80 mm across. Closed, only the lid shows.

Is it waterproof?

No. The closed lid includes a seal to help keep everyday splashes and crumbs out, but the open unit is IP20, so keep it and its connections dry when raised.

Should I choose the V3LW or the V3C?

The V3LW fits a smaller 65 mm hole. The V3C needs a 95 mm hole. Both are motorised and have wireless charging.

How do I make a warranty claim?

Submit a support request. We keep records matched to product serial numbers, so you don't need your receipt.
