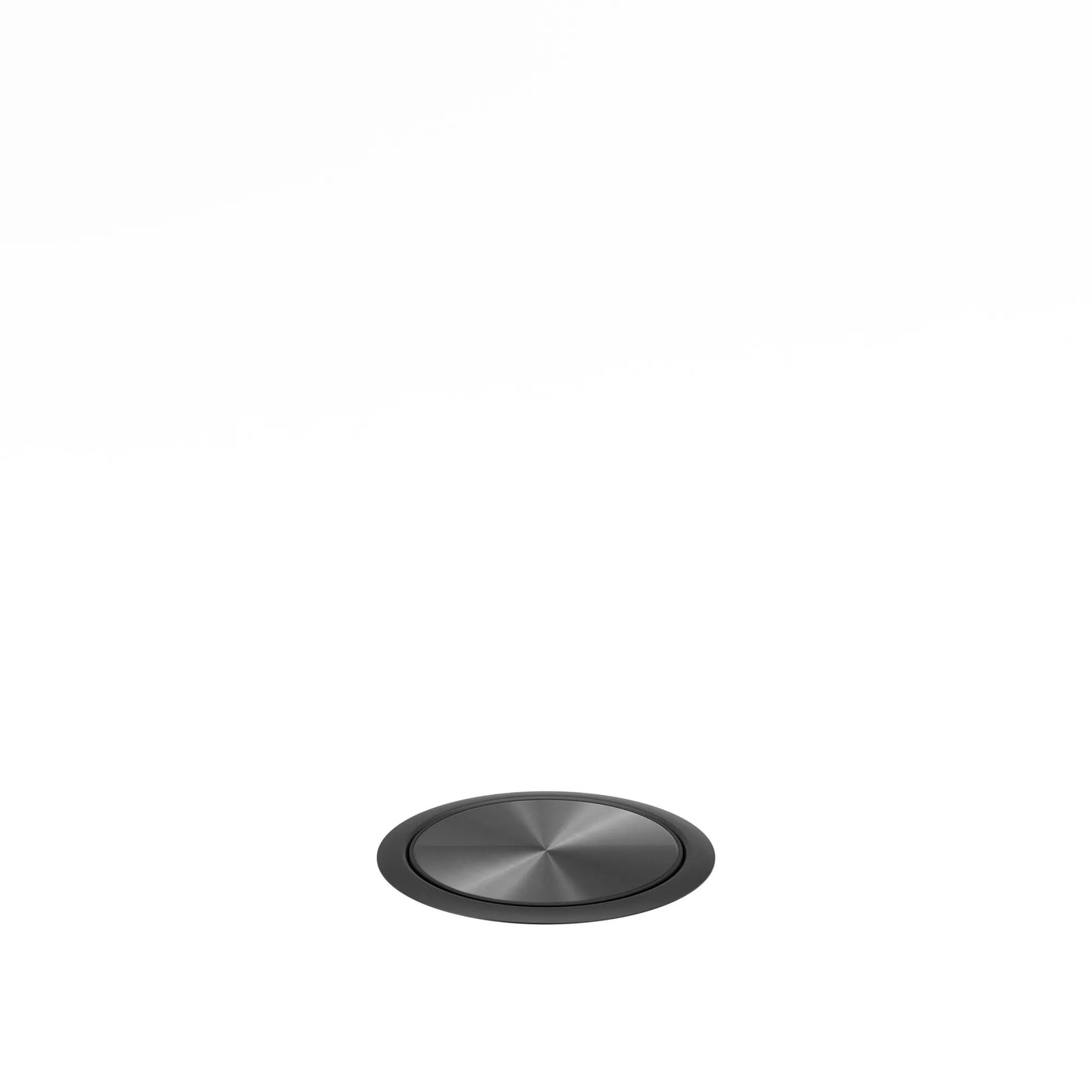

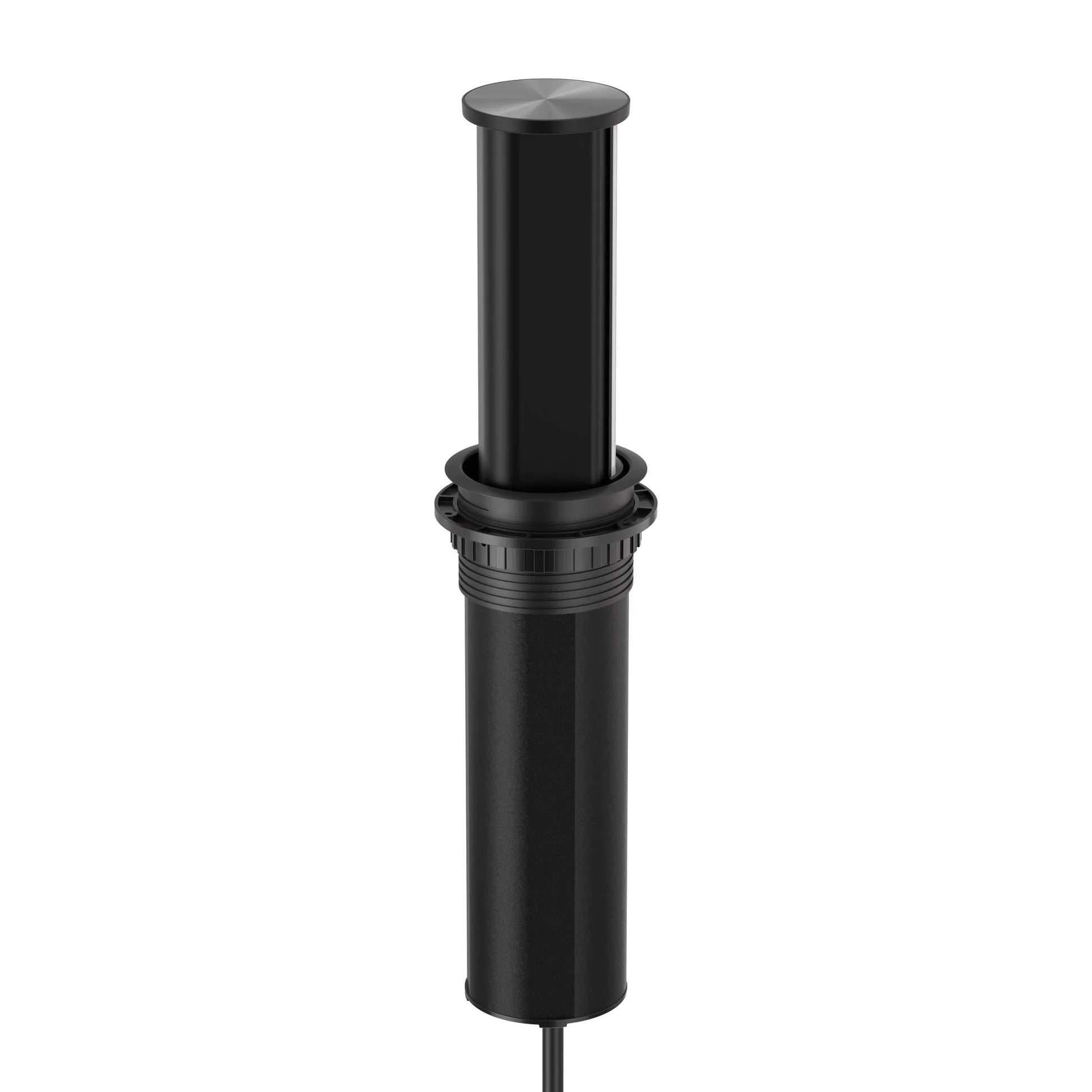

Gas-strut lift
Press and release the top to raise the unit; push it down until it clicks to retract it.

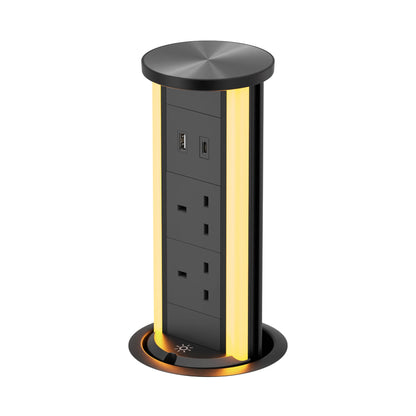

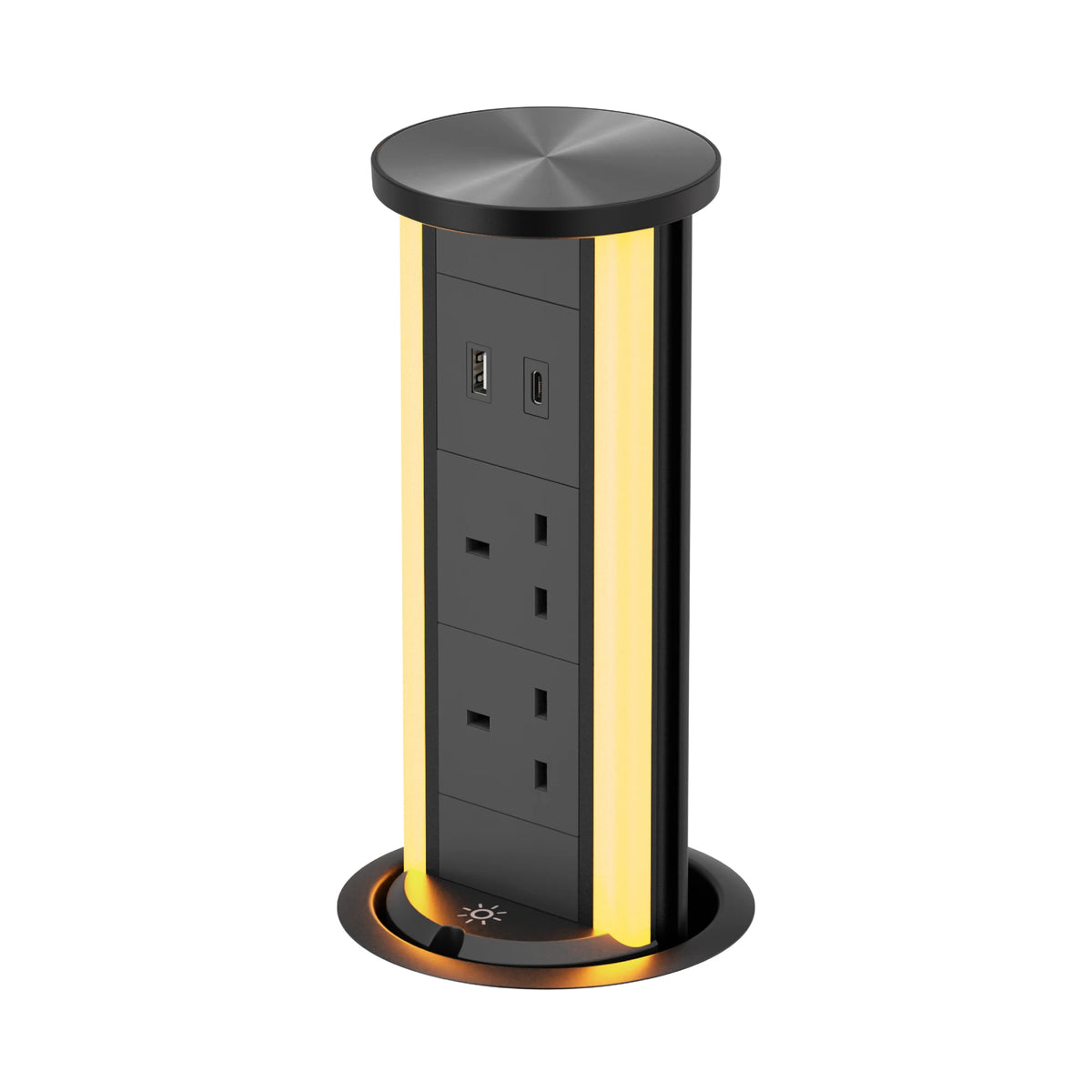

V16B at a glance
Power, high-output charging and light in one gas-strut pop-up.

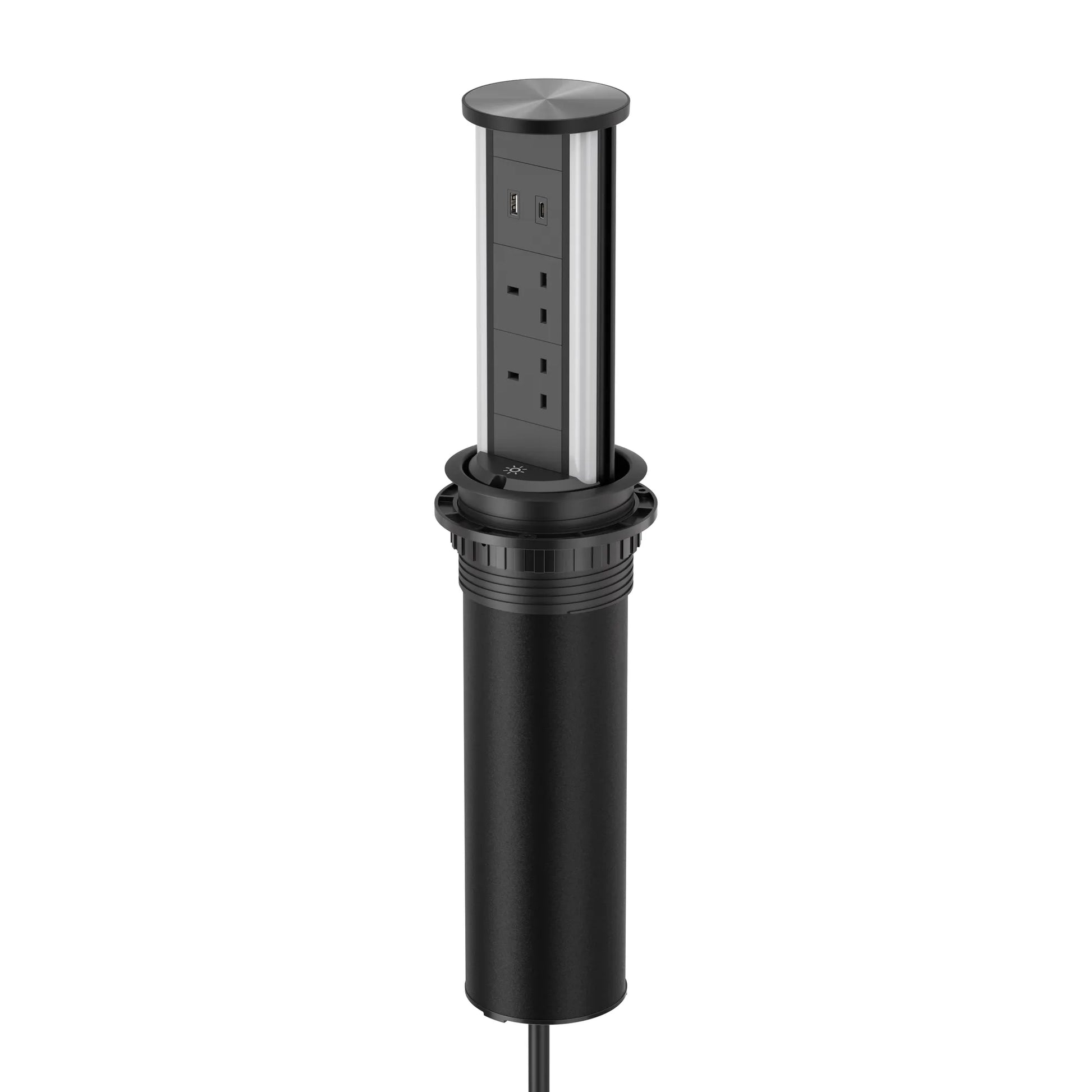

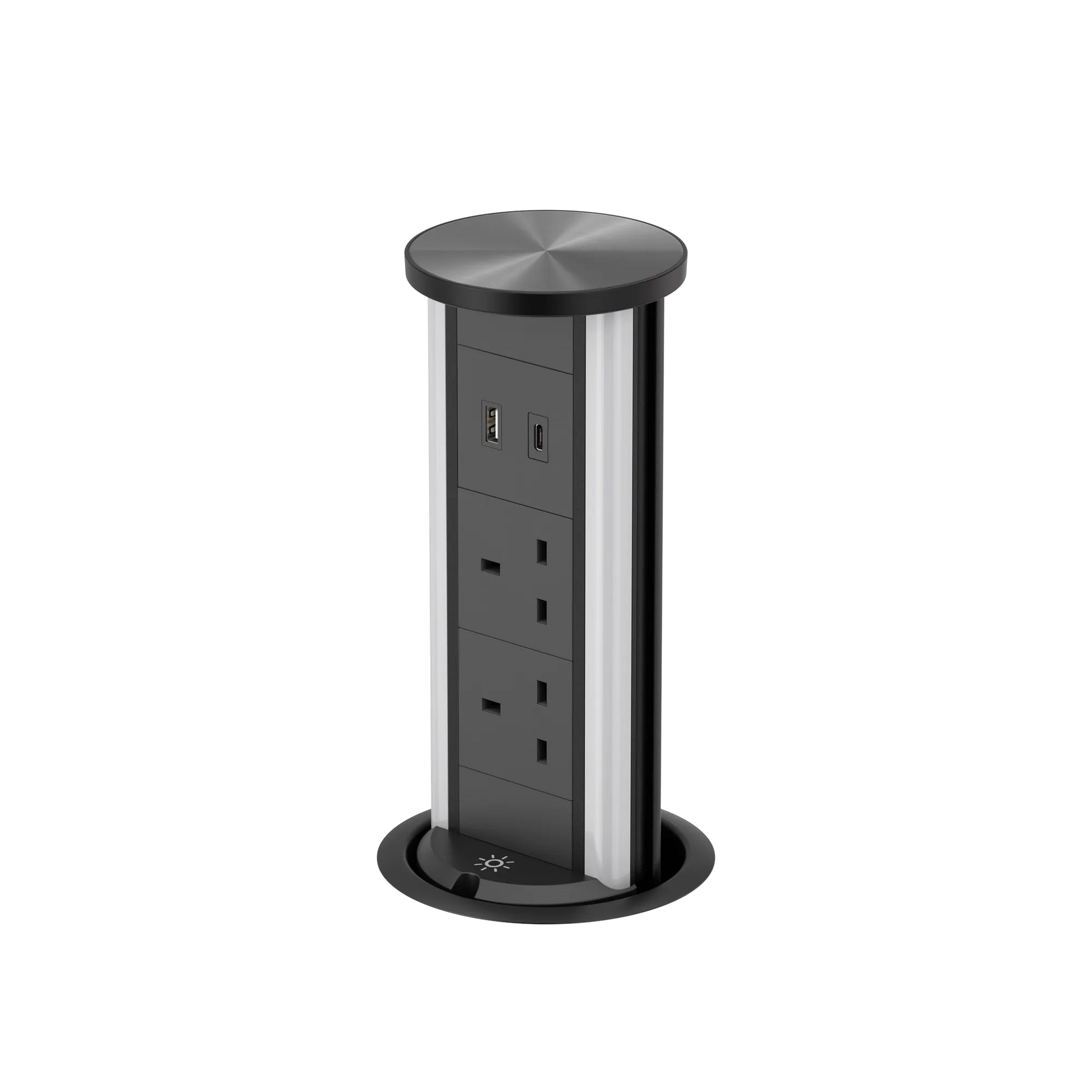

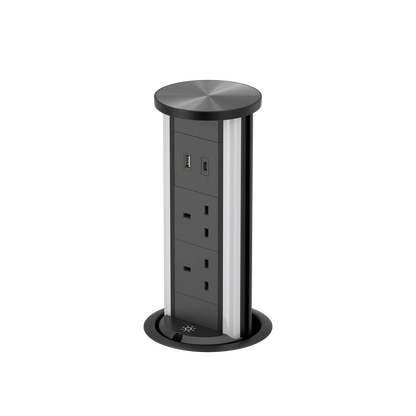

A black gas-strut pop-up socket with two UK sockets, high-power USB charging, wireless charging and a dimmable LED light.
Features
Dimmable LED light
Tap to switch the warm-white light on or off; press and hold to adjust brightness.
High-power charging
USB-C up to 65W, USB-A up to 30W and wireless charging up to 10W.
Installation planning
Installation opening
Fits 101–105mm openings. 102mm recommended.
350mm minimum clearance
Allow at least 350mm clear space below the worktop.
Fitted UK plug
Approx. 1.5m lead with a fitted UK plug; no hardwiring required.
Important: The unit is IP20. Do not exceed 10A / 2,500W total at 250V, and follow the supplied instructions and product rating label.

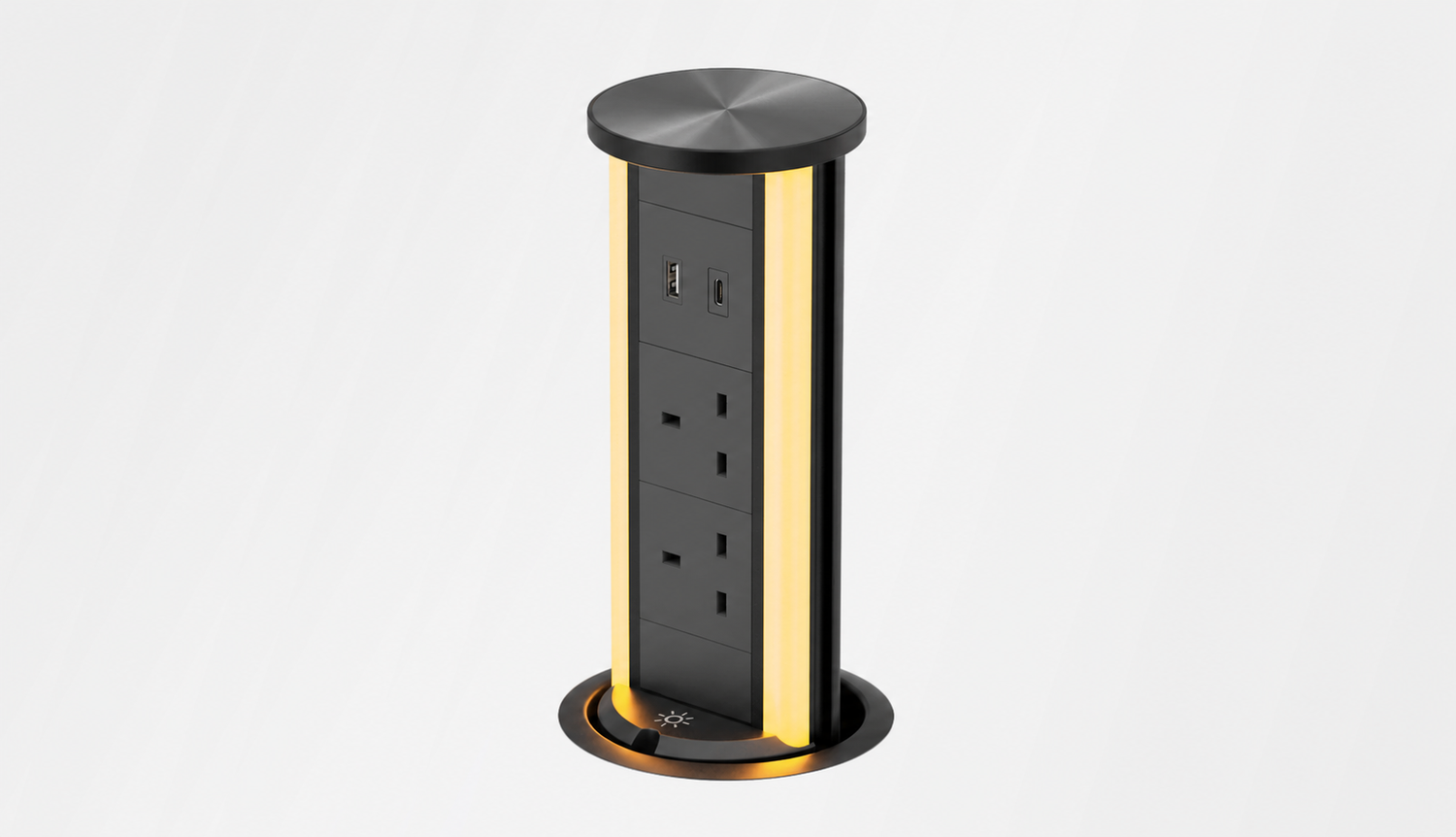

The difference between ordinary and extraordinary is that little extra
Installation opening
Fits 101–105mm openings; a 102mm opening is recommended. Allow at least 350mm clear space below.

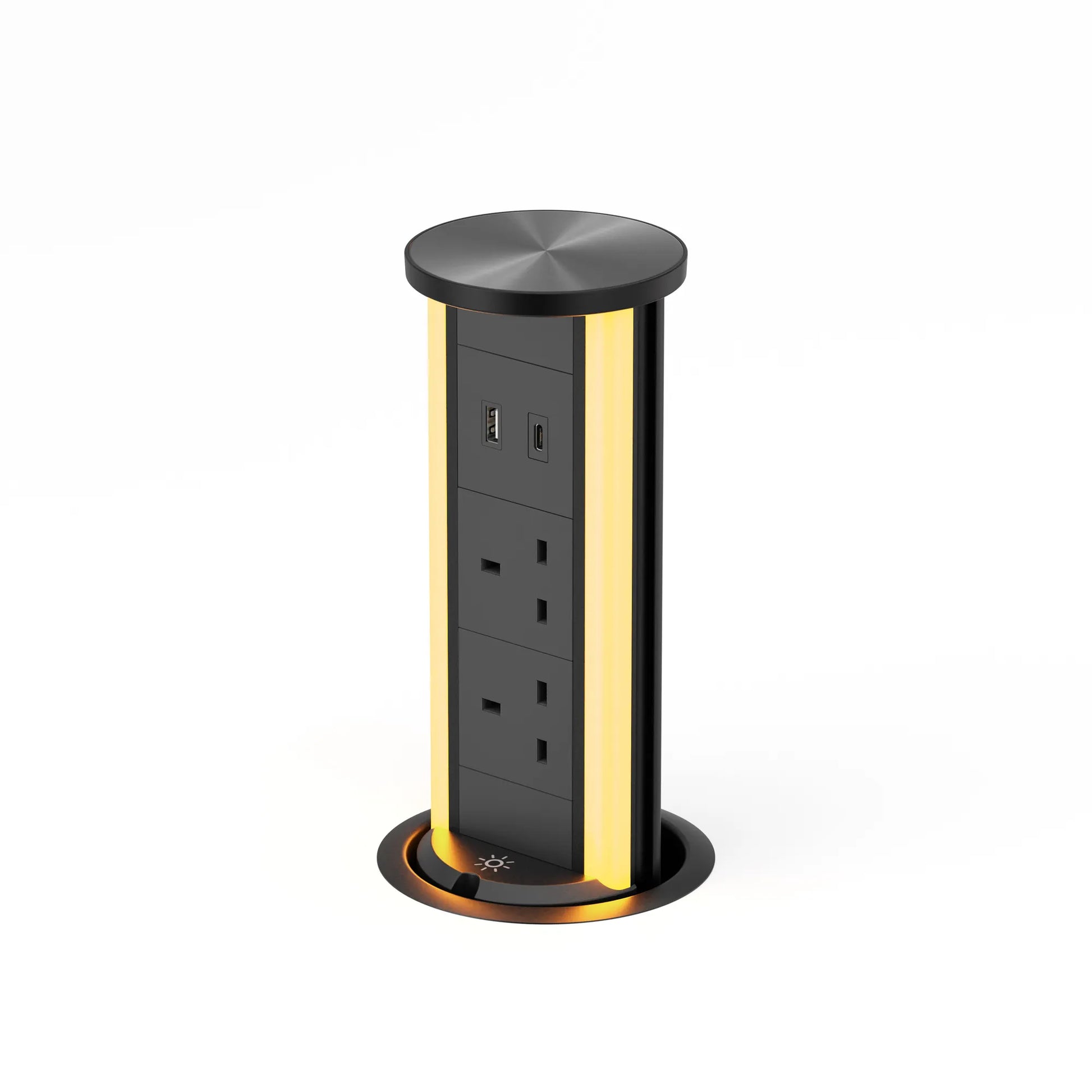

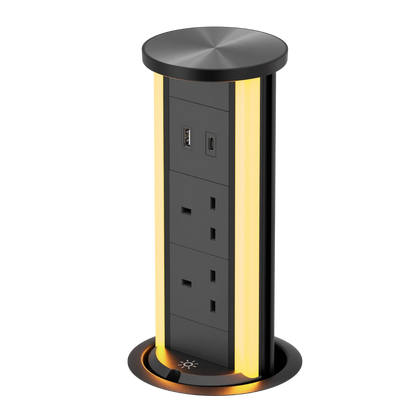

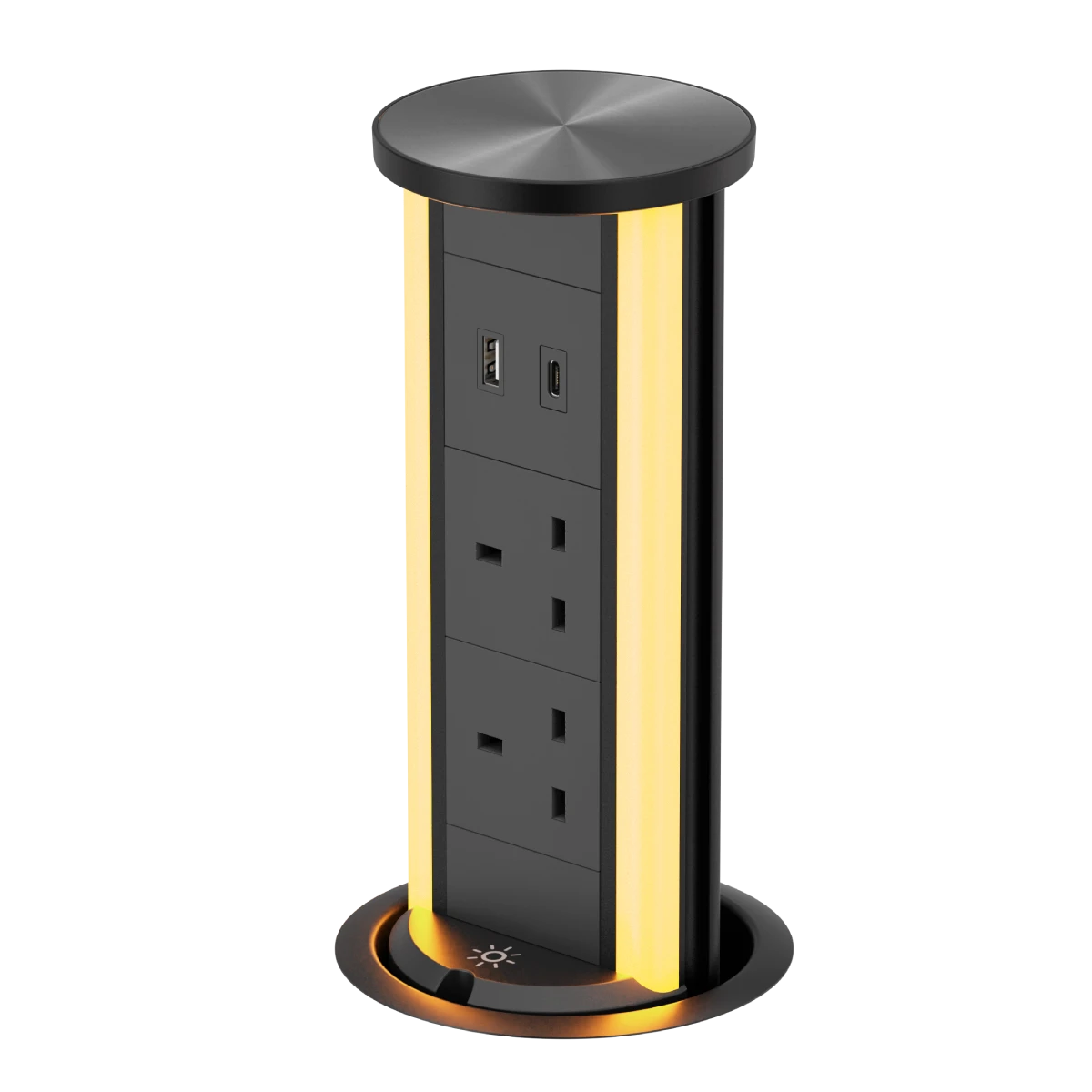

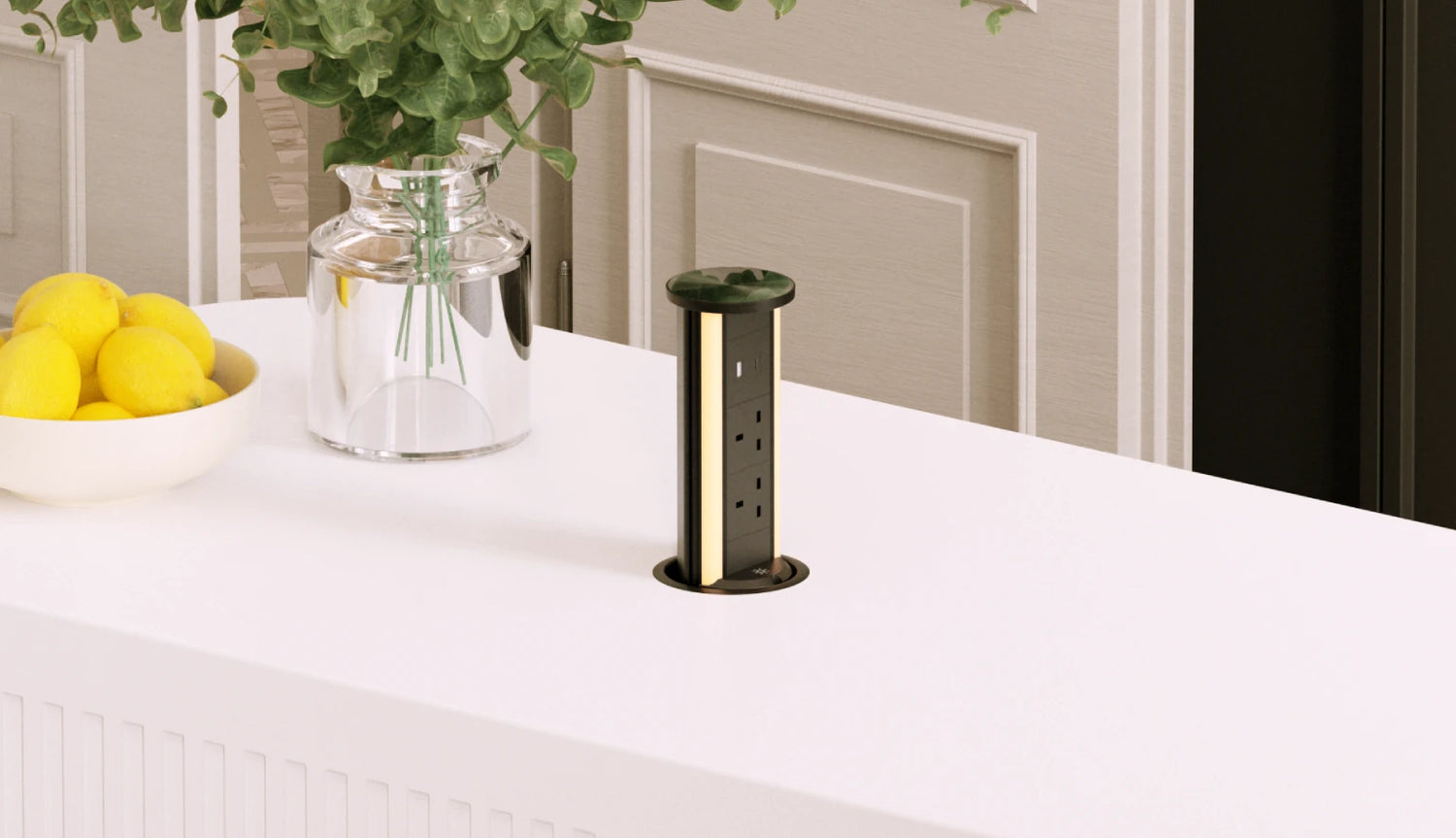

Integrated LED lighting
A built-in warm LED light adds style and functionality, serving as a night light or premium accent feature.

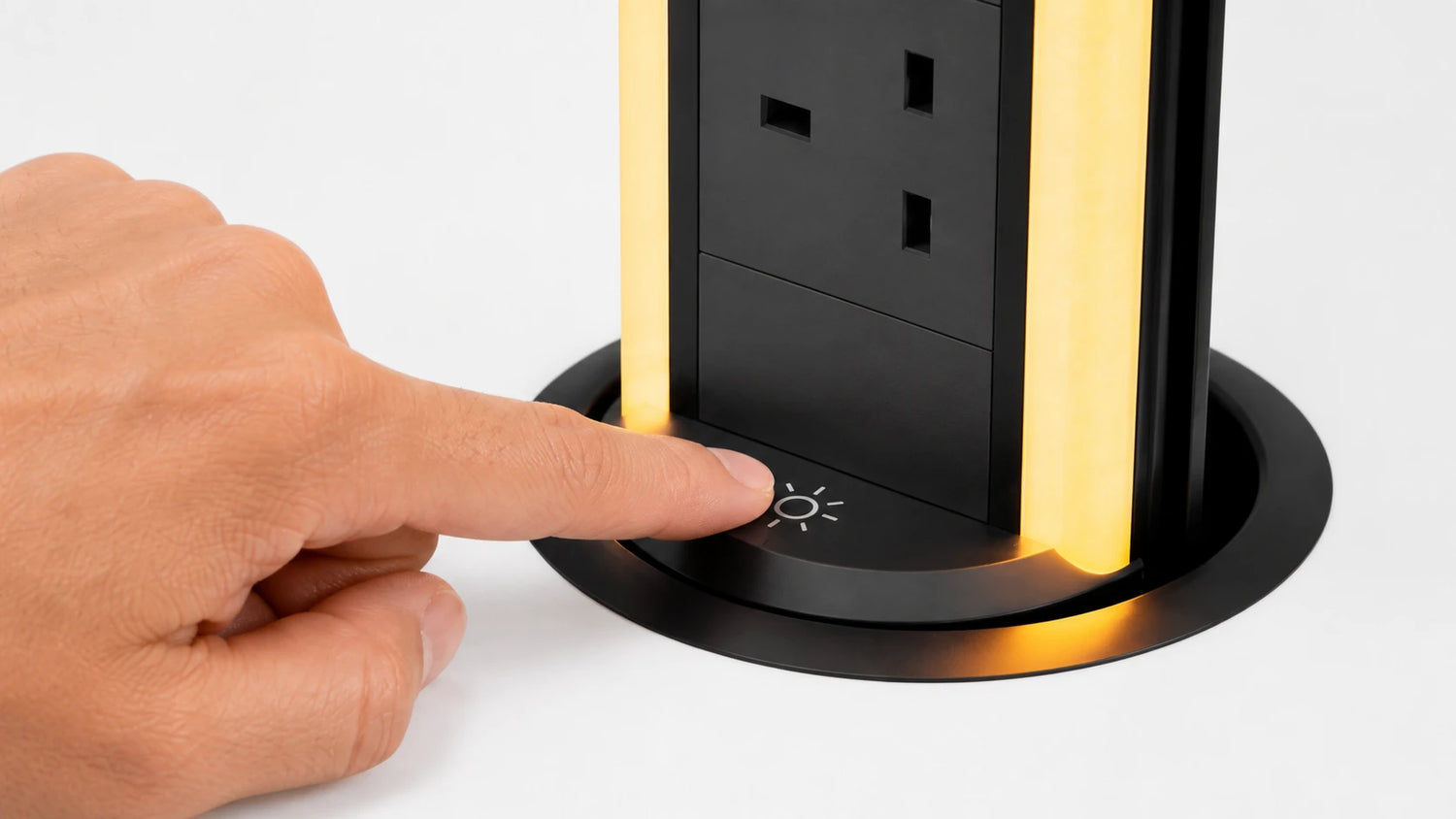

LED light control
Tap the light button to switch the LED on or off; press and hold to adjust brightness.

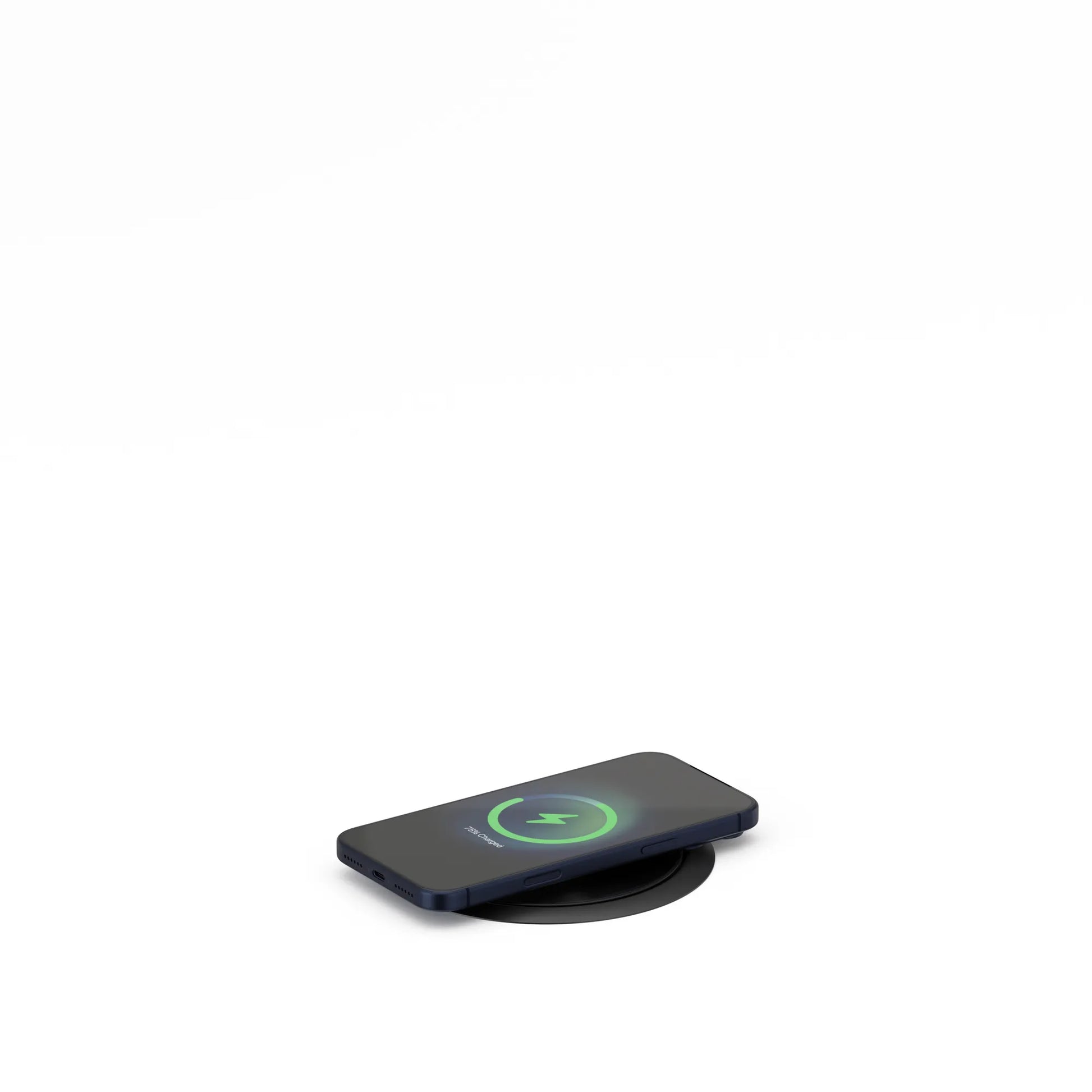

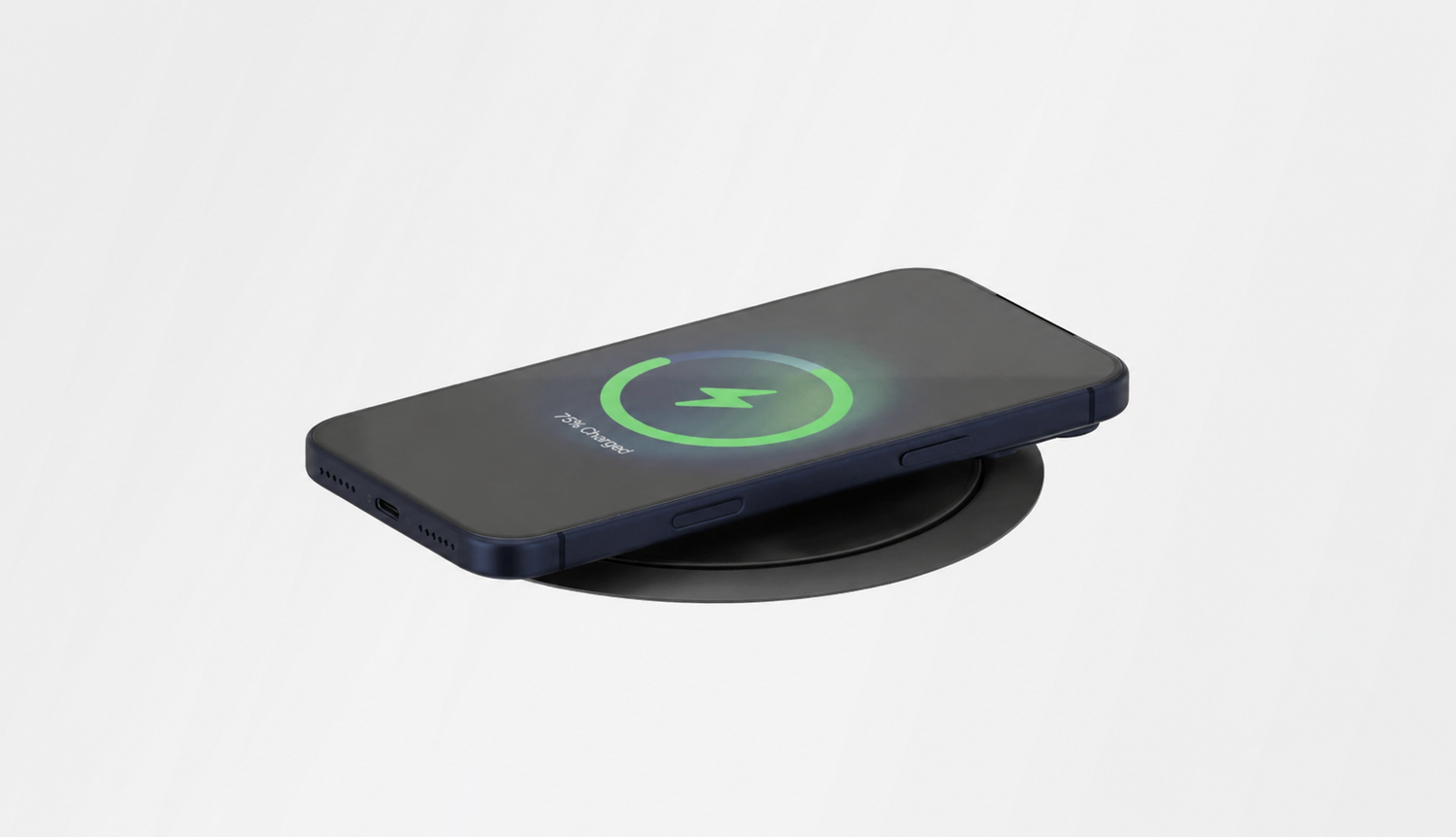

Wireless charging
Charge compatible devices on the top surface at up to 10W.

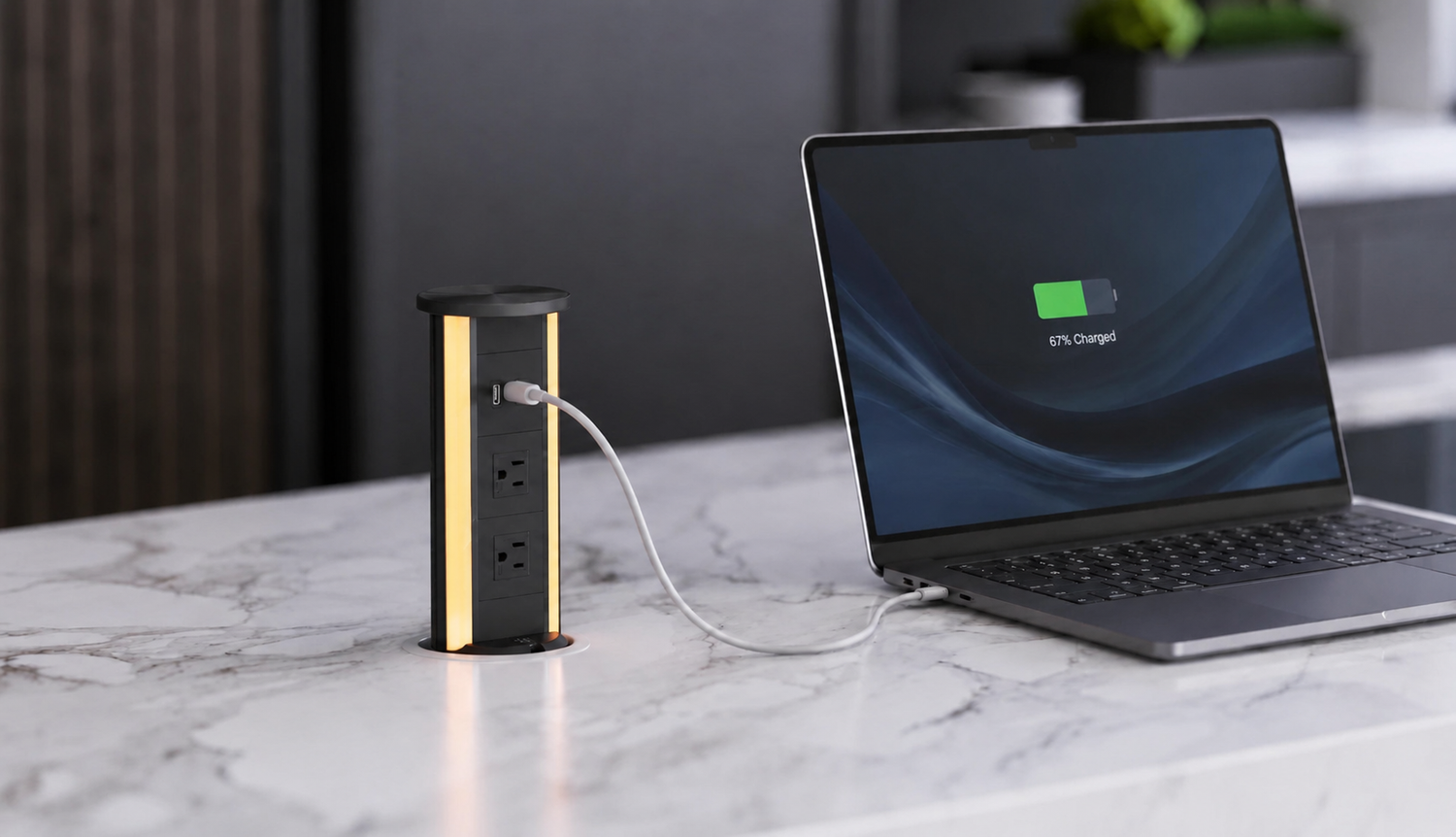

65W USB-C charging
USB-C Power Delivery provides up to 65W when used on its own, suitable for compatible laptops, tablets and phones.

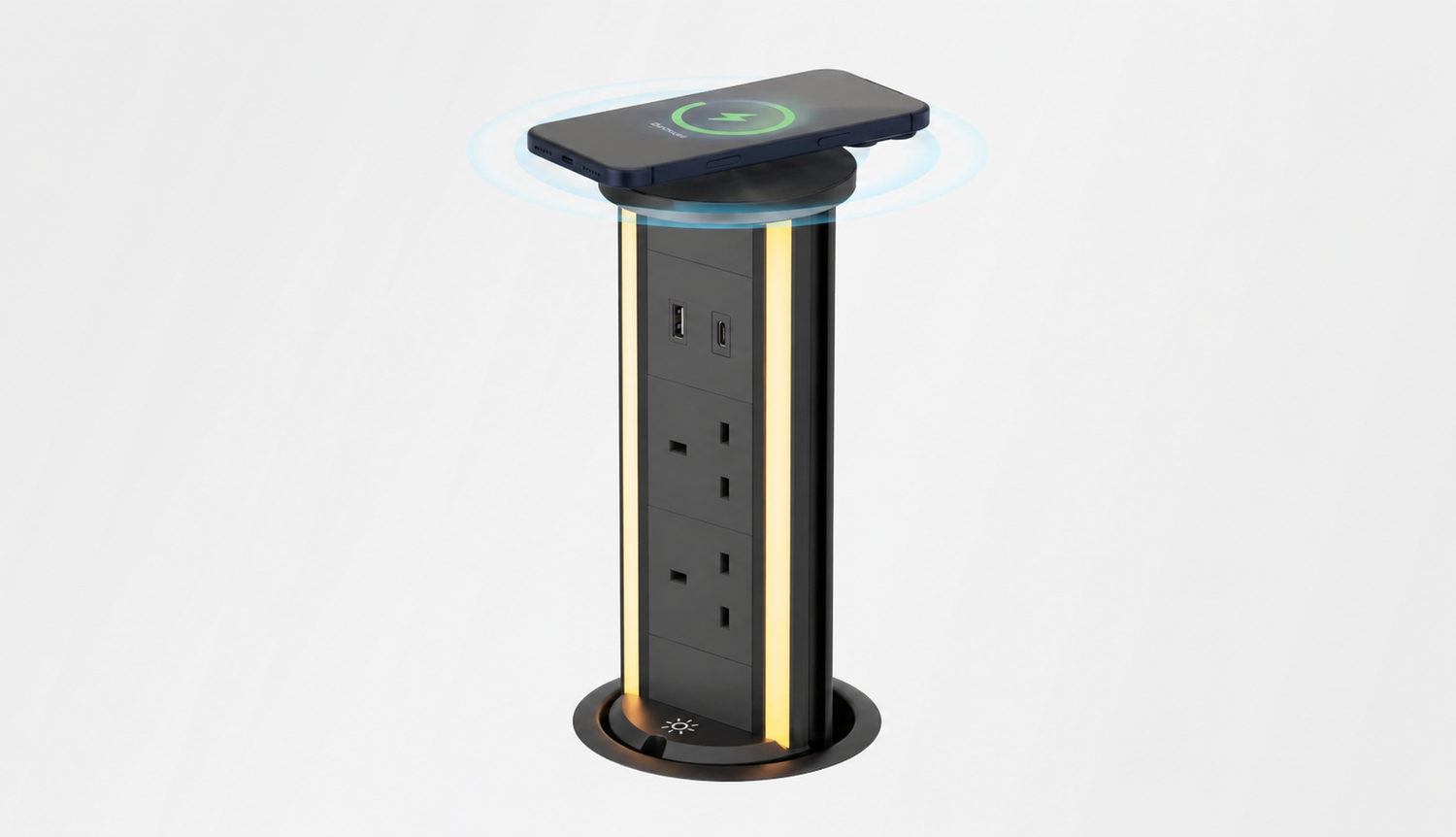

Wireless charging in any position
The wireless charging surface remains available with the unit raised or retracted.

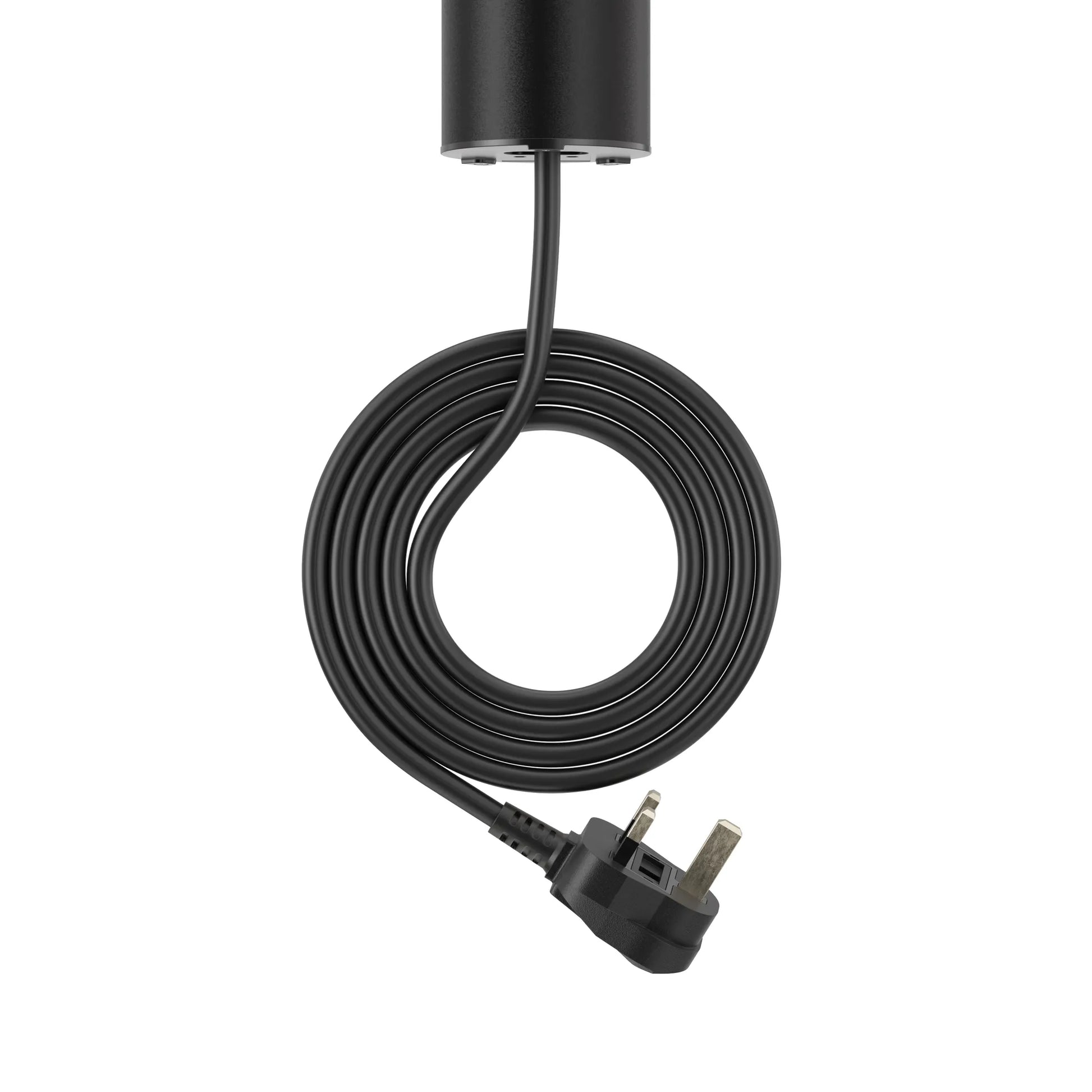

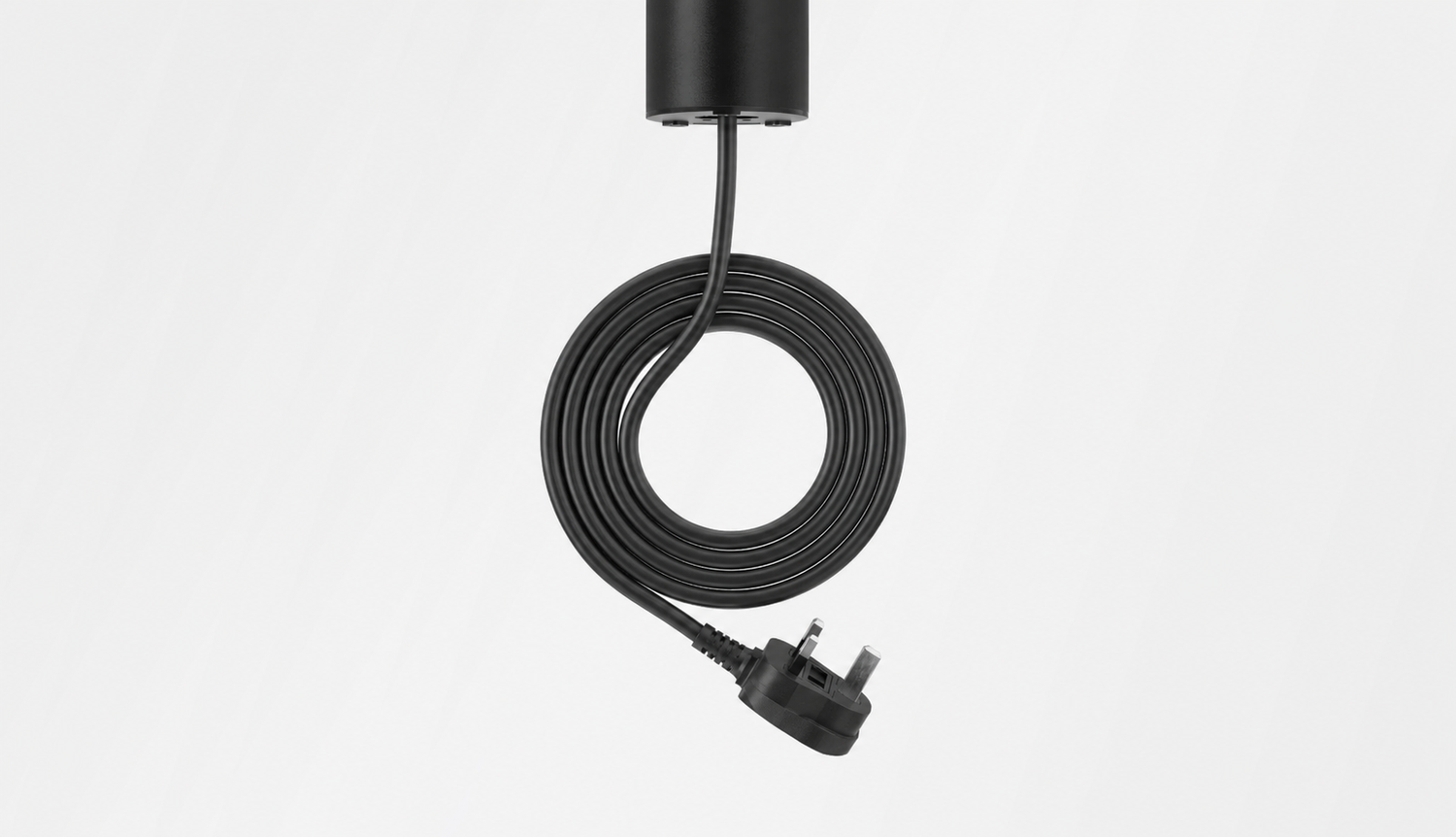

Plug and play
Supplied with an approximately 1.5m lead and fitted UK plug. No hardwiring is required for normal installation.

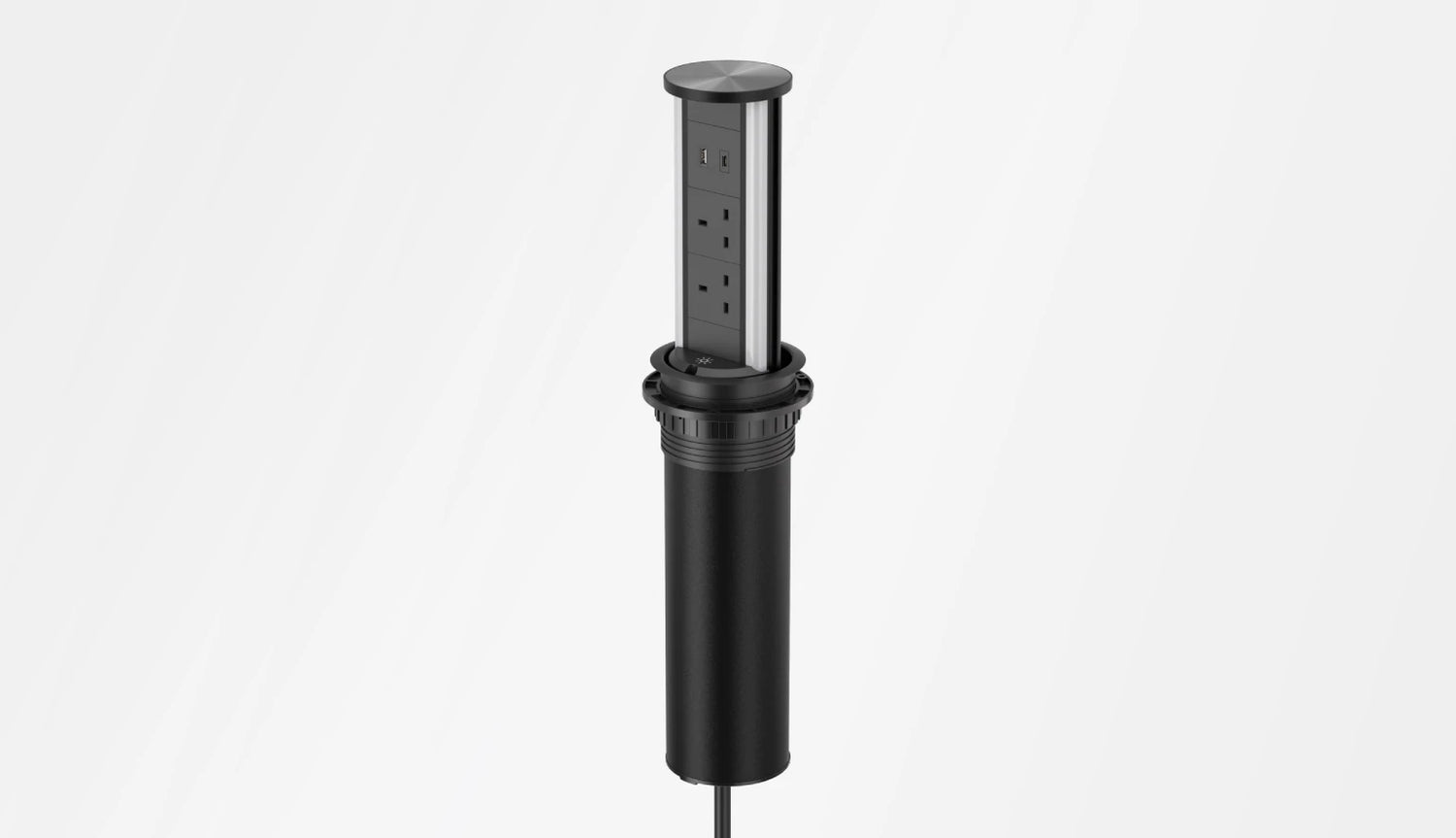

Elegant design, high-quality build
Constructed with an extruded aluminium body and a low-profile top.

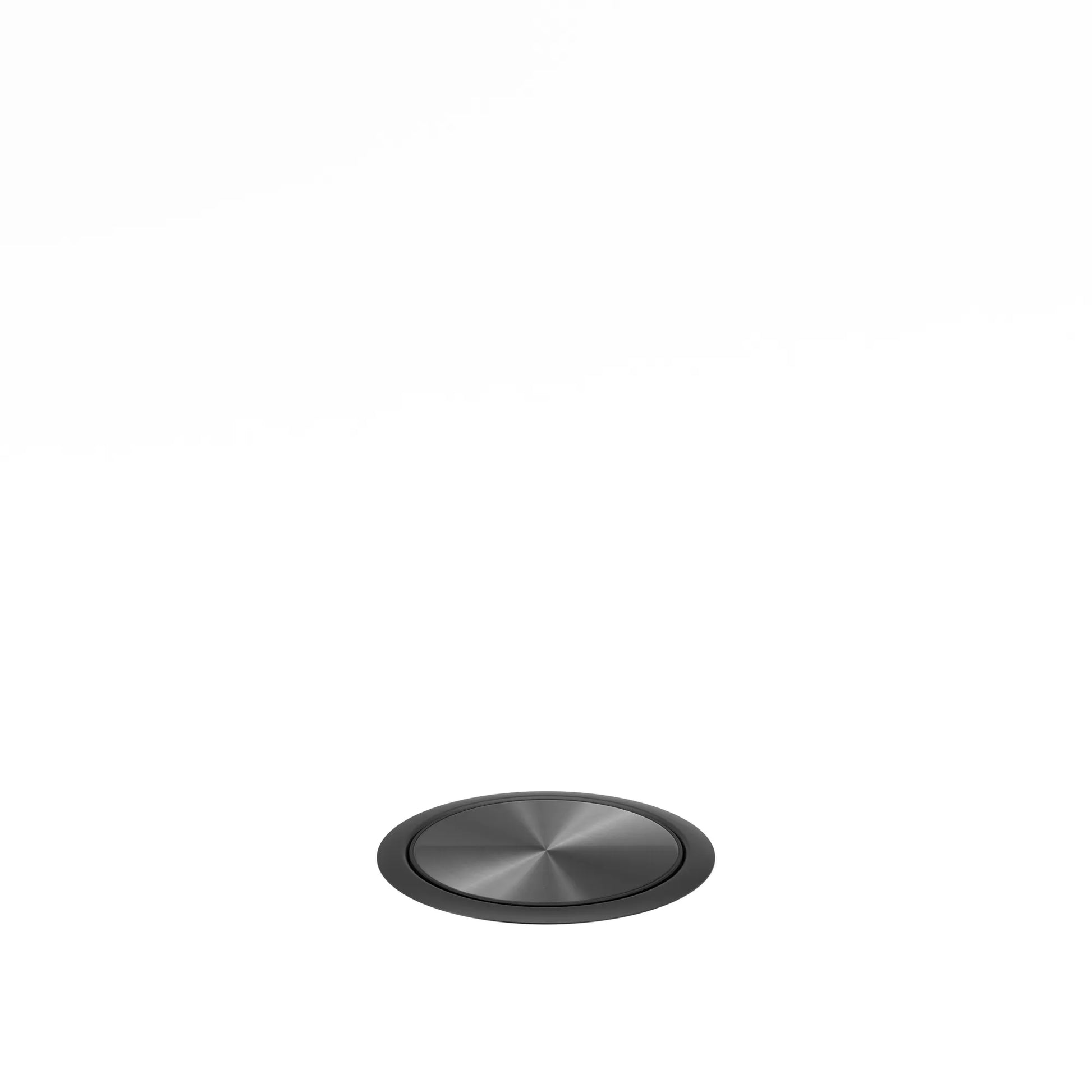

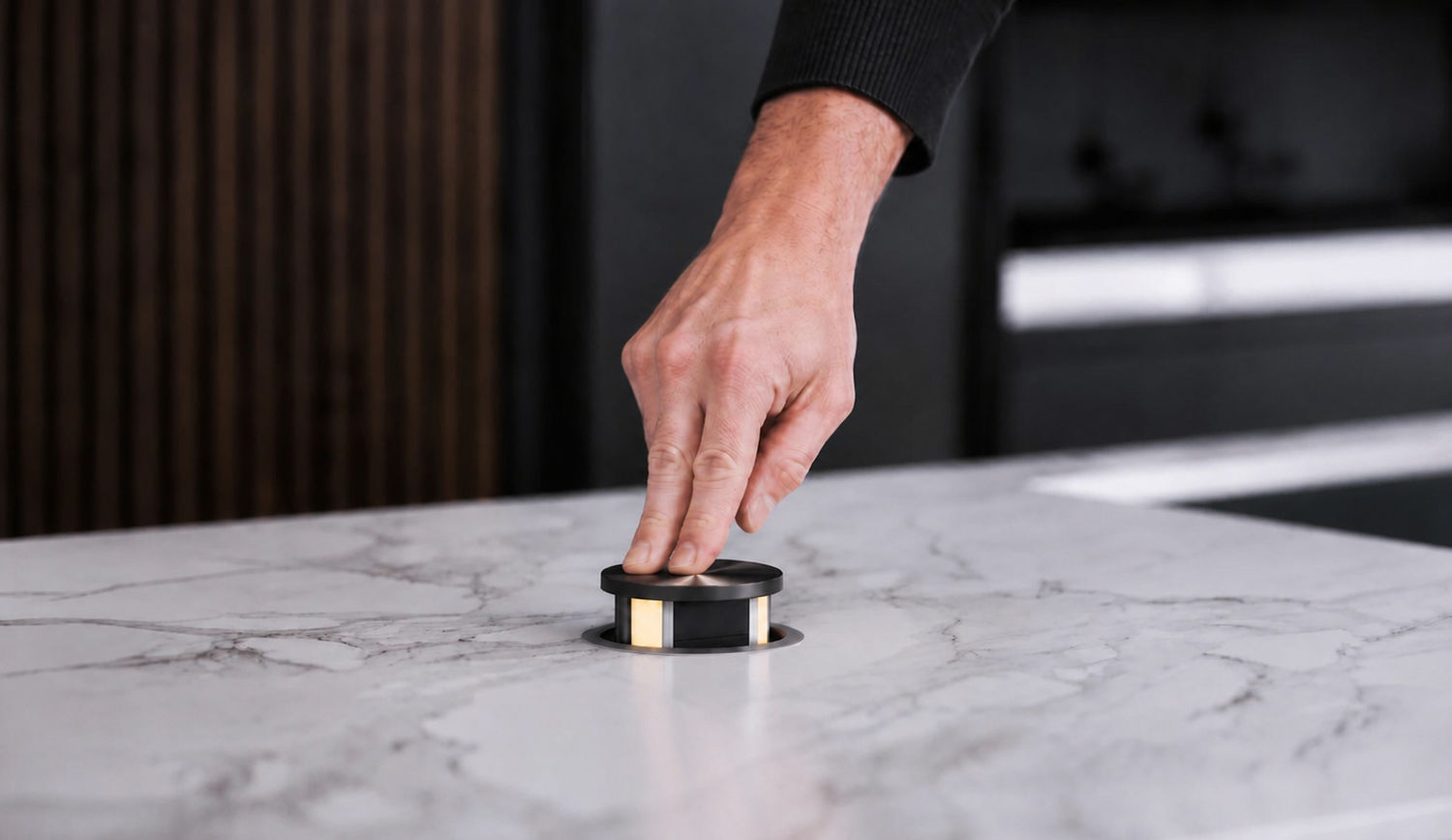

Simple operation
Press and release the top to raise the unit; push it down until it clicks to retract it.
Maximum output
10A total rated load, 65W USB-C, 30W USB-A and up to 10W wireless charging. When both USB ports are used, each provides up to 30W.
Use as specified
Read the supplied instructions and product label before installation and use. Do not exceed the 10A total rating or use the unit in an unsupported configuration.
Technical sheet
Download the current V16B-UK technical sheet and installation information.

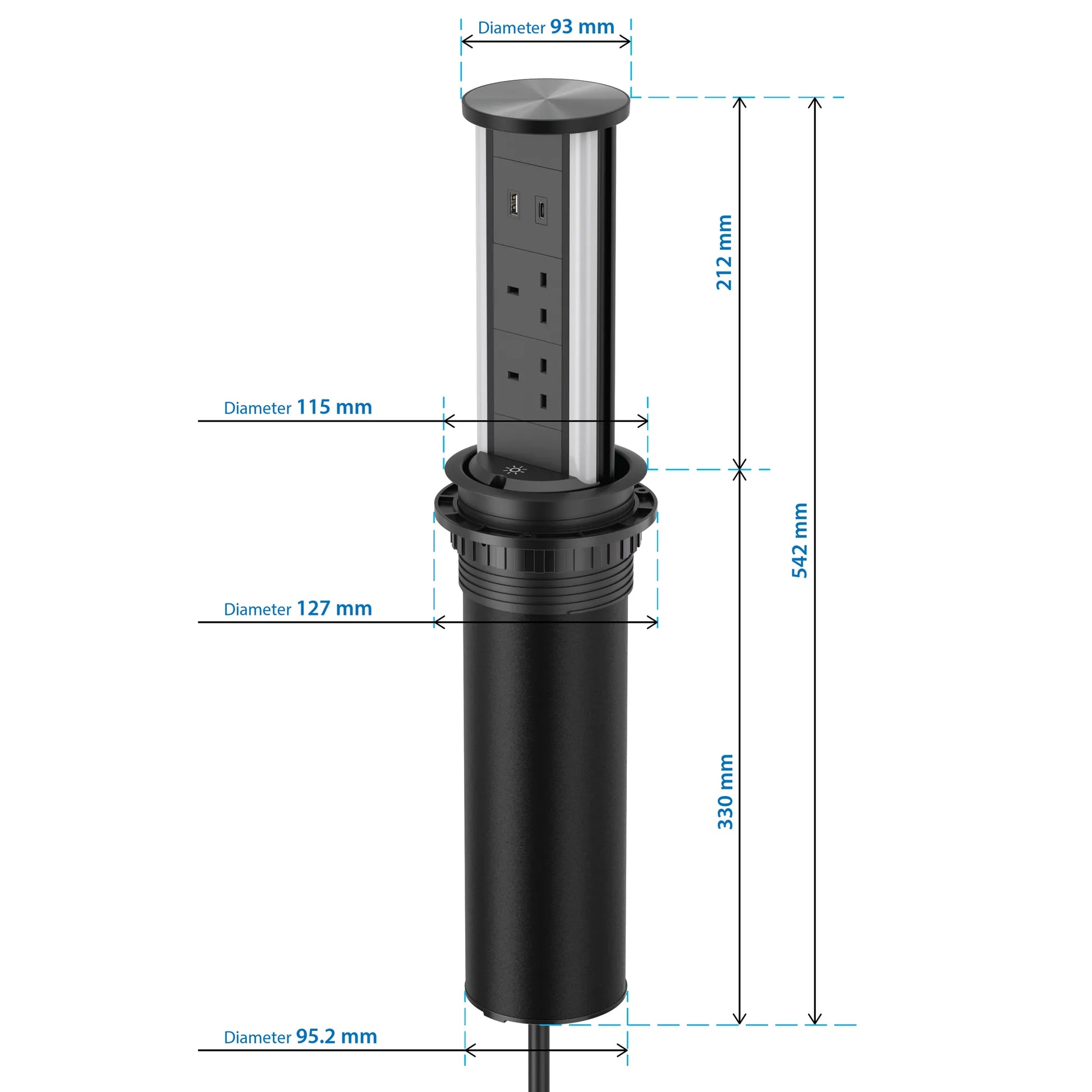

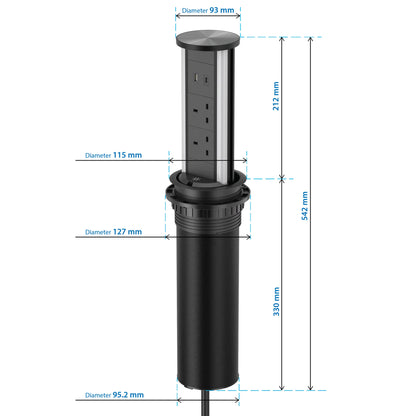

Dimensions and cut-out
Check the hole size, worktop thickness and the space needed below before you install. Select the drawing to open it full size.
(opens full size in a new tab)
Dimensions and details
Specifications, support and common questions.
Electrical, installation, delivery and support information is consolidated here so it is easier to scan.
Specifications
Electrical
250V AC, 50Hz; 10A and 2,500W total maximum. IP20.
USB output
USB-A: up to 30W. USB-C: up to 65W. When both are used, output is up to 30W + 30W.
Connections
2 × UK sockets, 1 × USB-A, 1 × USB-C and wireless charging up to 10W.
Installation dimensions
Opening: 101–105mm; a 102mm opening is recommended. Body: 95.2mm diameter. Top flange: 115mm. Locking ring: 127mm. Body below surface: 330mm. Allow at least 350mm clear space below.
Delivery, warranty and support
Technical sheet
Current dimensions, ratings and installation information for V16B-UK.
Shipping information
View current United Kingdom delivery options and estimated timeframes.
Frequently asked questions
Is the total rating 13A?
No. The source-backed V16B-UK rating is 10A, 2,500W maximum at 250V.
How is the light controlled?
Tap the light control to switch it on or off; press and hold to adjust brightness.
How does it open?
Press and release the lid and the gas strut raises the unit. Push it down until it clicks to retract it.
