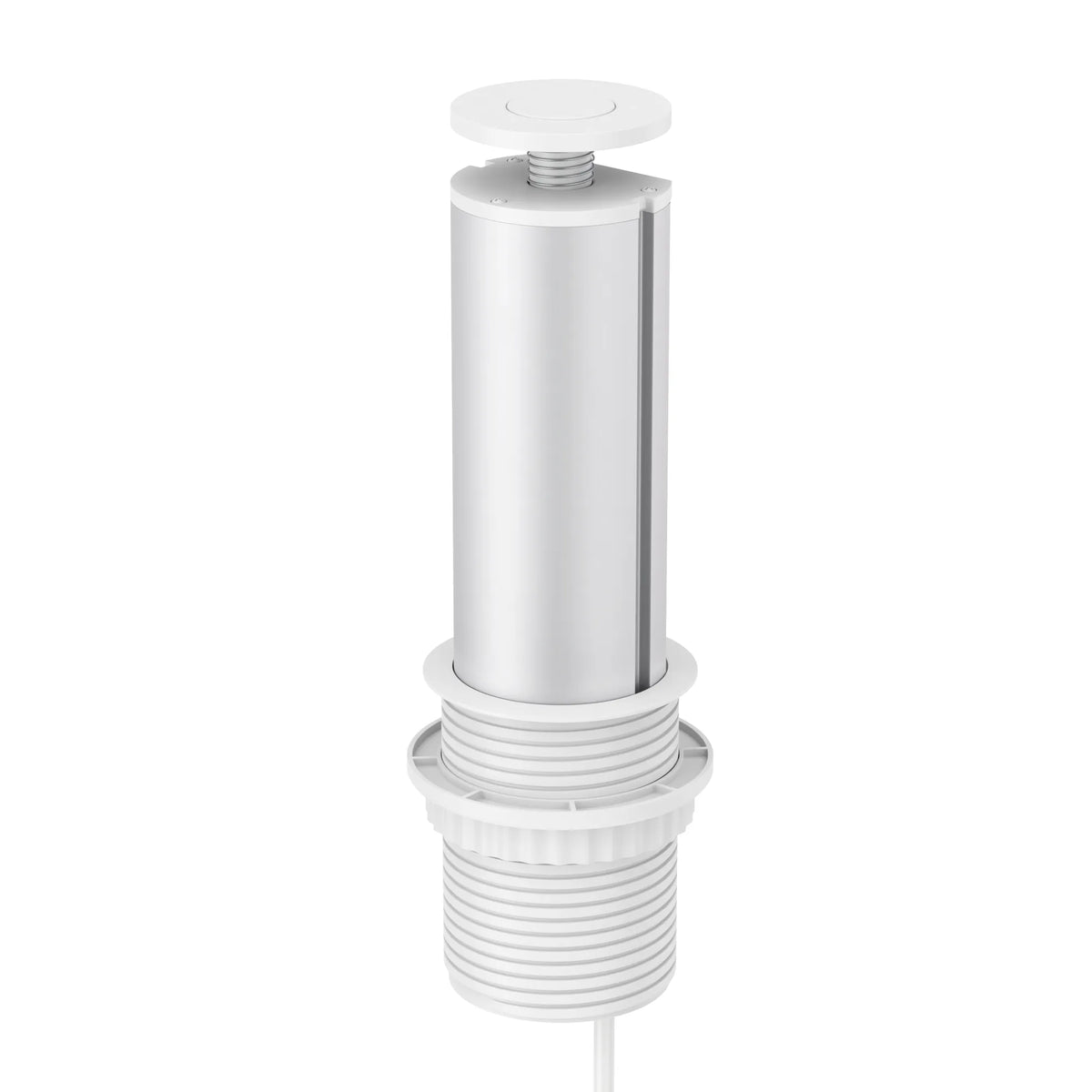

Manual-lift design

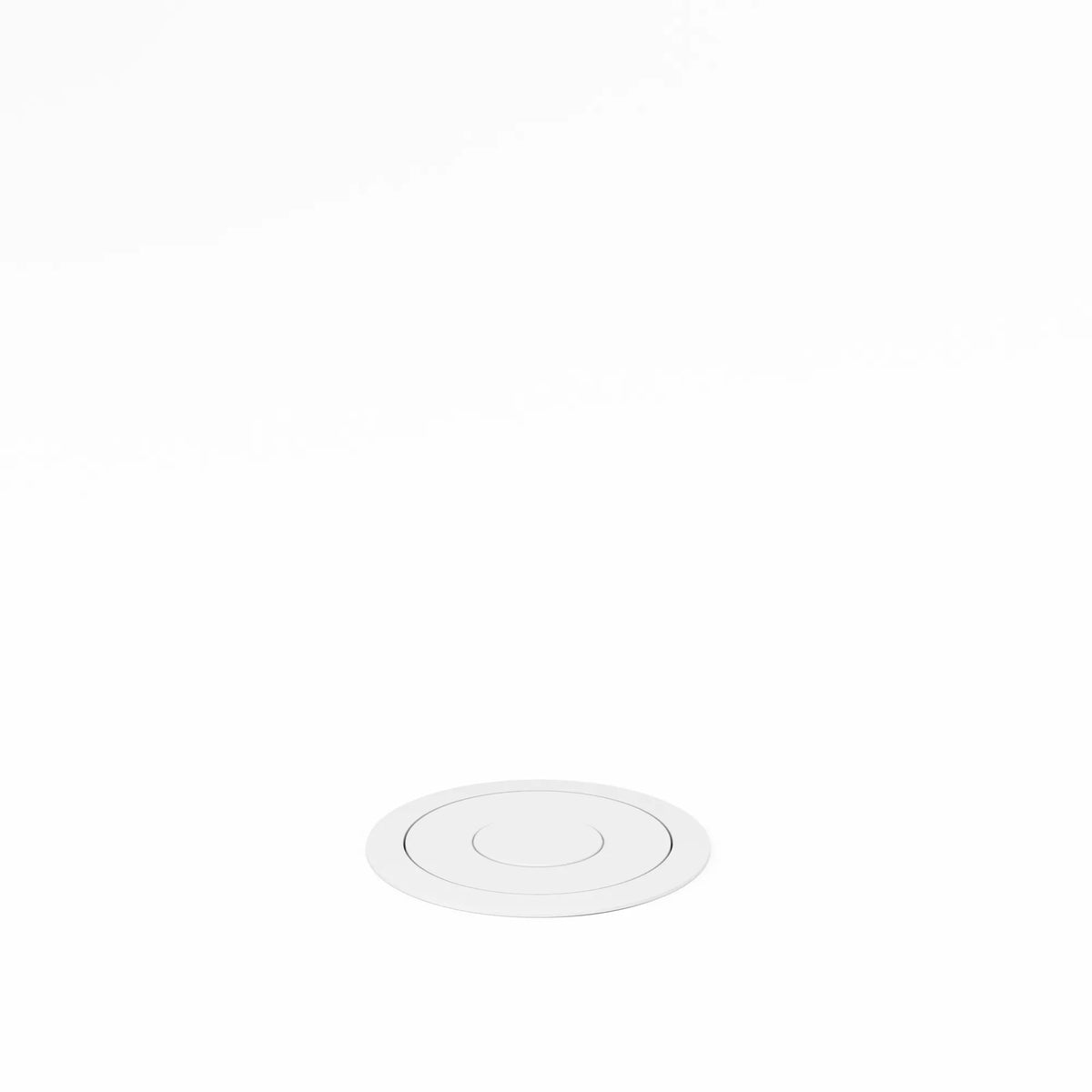

Pull the unit up for access and retract it when the connections are no longer required.
V1WC at a glance
Compact manual-lift power with practical USB charging.

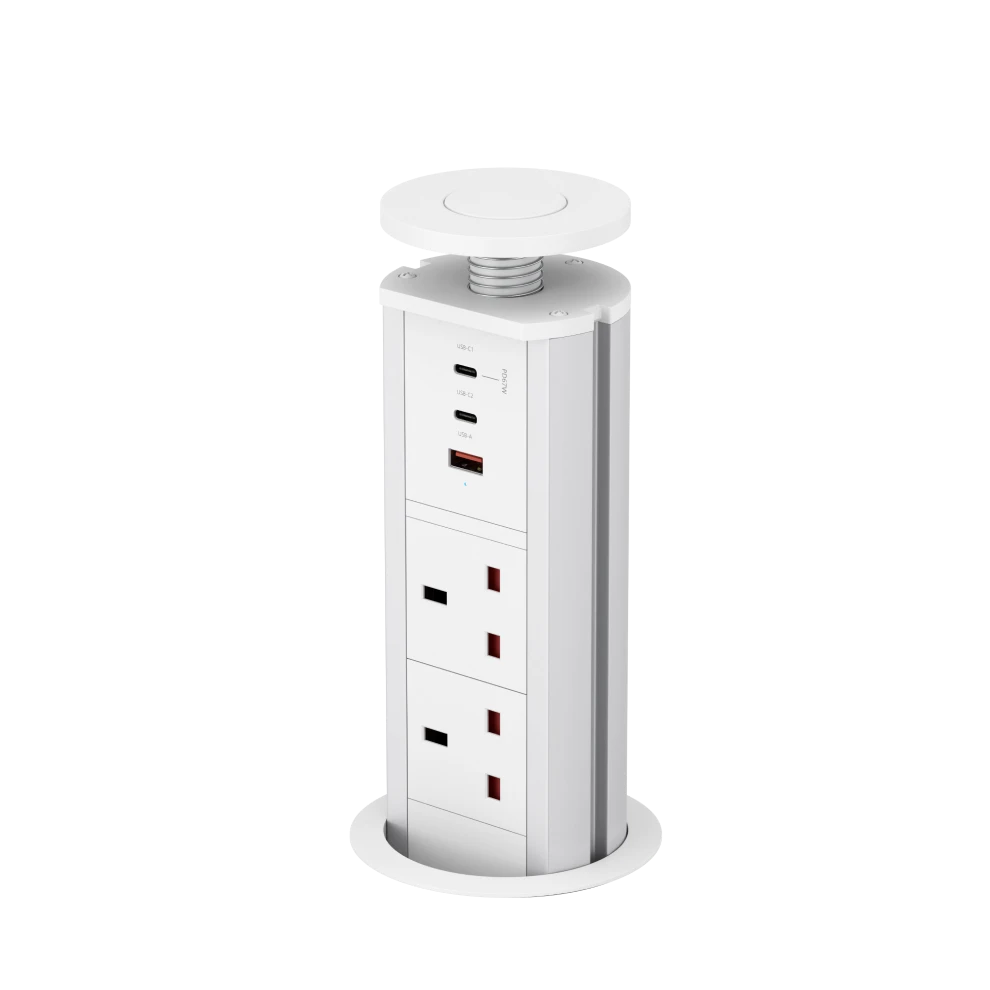

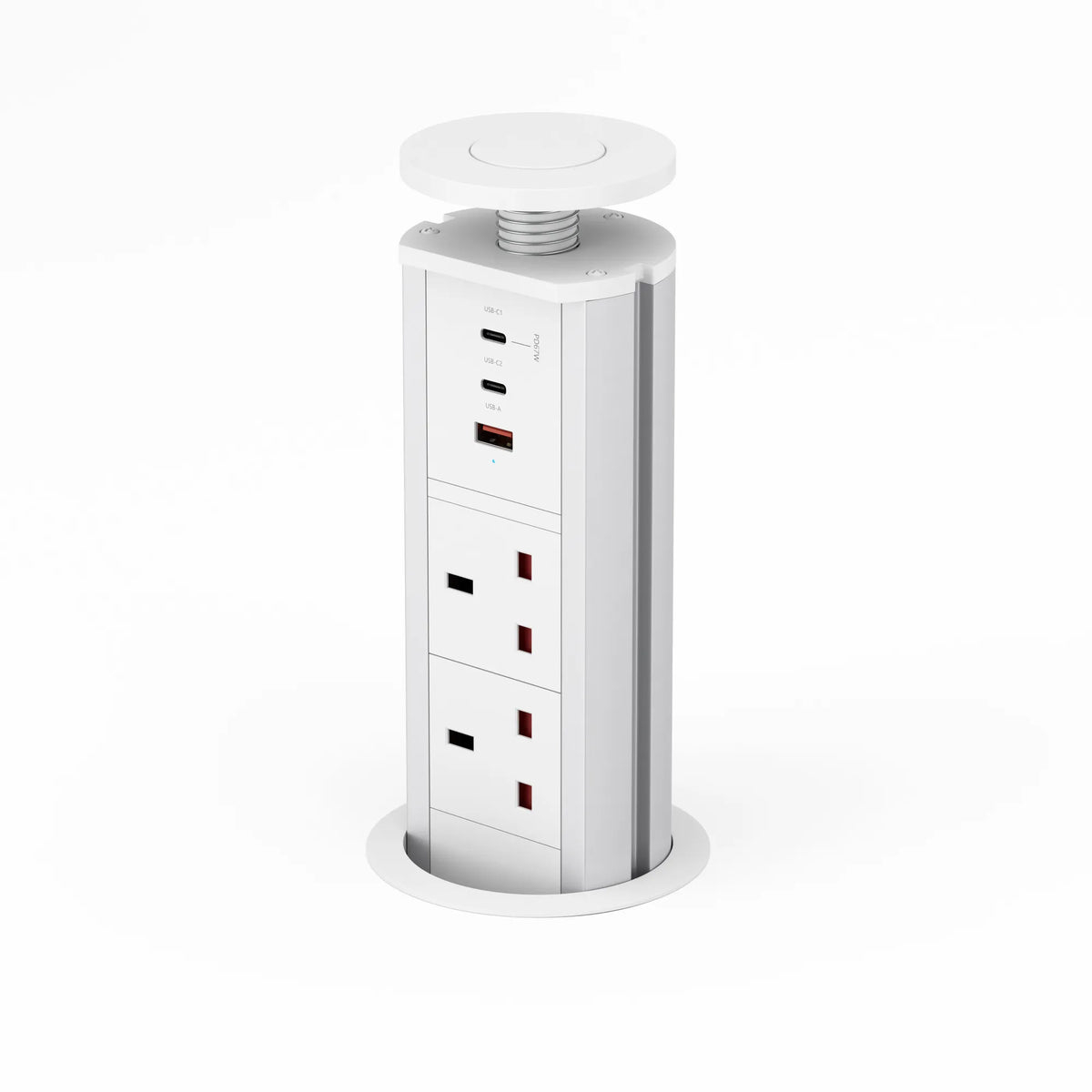

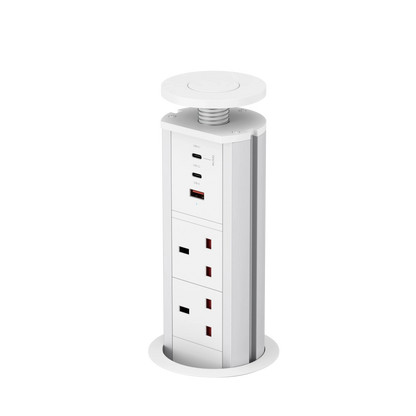

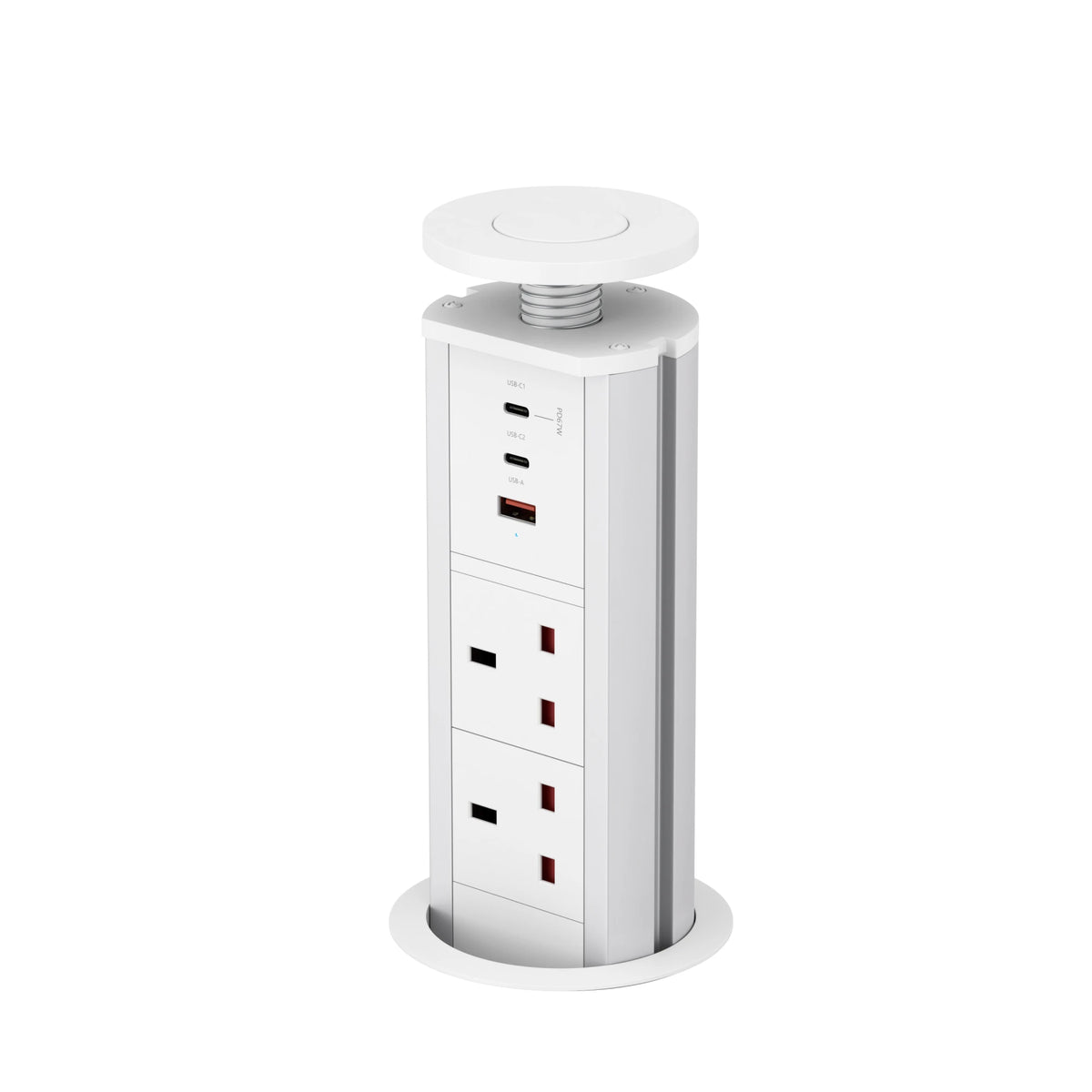

Compact manual-lift pop-up socket with two UK sockets, one USB-A port and two USB-C ports, finished with a white top, silver body and white sockets.
Features
Power and charging
Two UK sockets, one USB-A port and two USB-C ports.
Up to 67W USB-C
USB-C1 supports up to 67W, USB-C2 up to 20W and USB-A up to 18W when used alone.
Installation planning

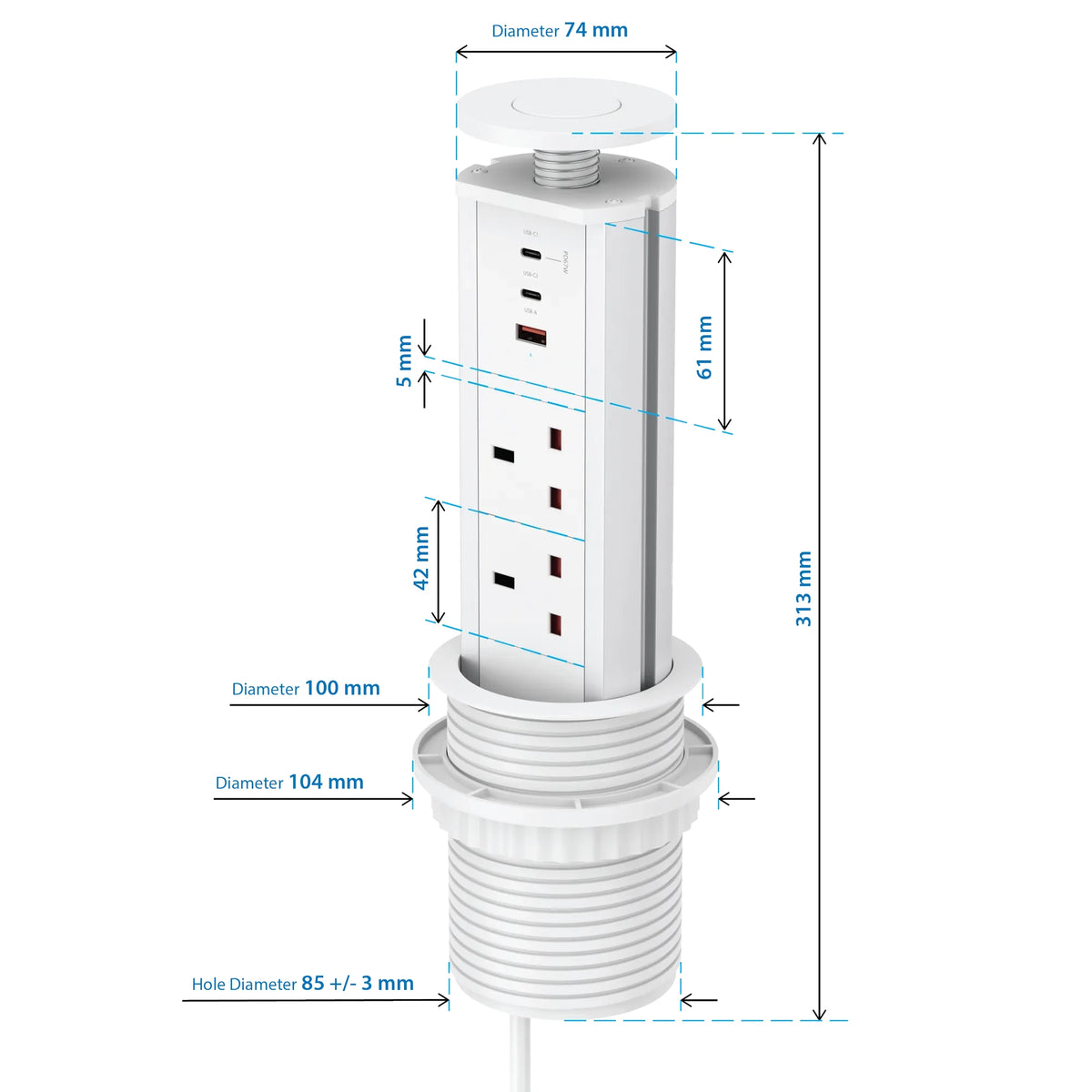

90mm nominal opening
Plan a 90mm nominal opening and trial-fit the actual unit before permanent cutting. No formal cutout tolerance is published.
340mm clearance
Allow 340mm below the top surface, plus room to route the lead and plug without strain.

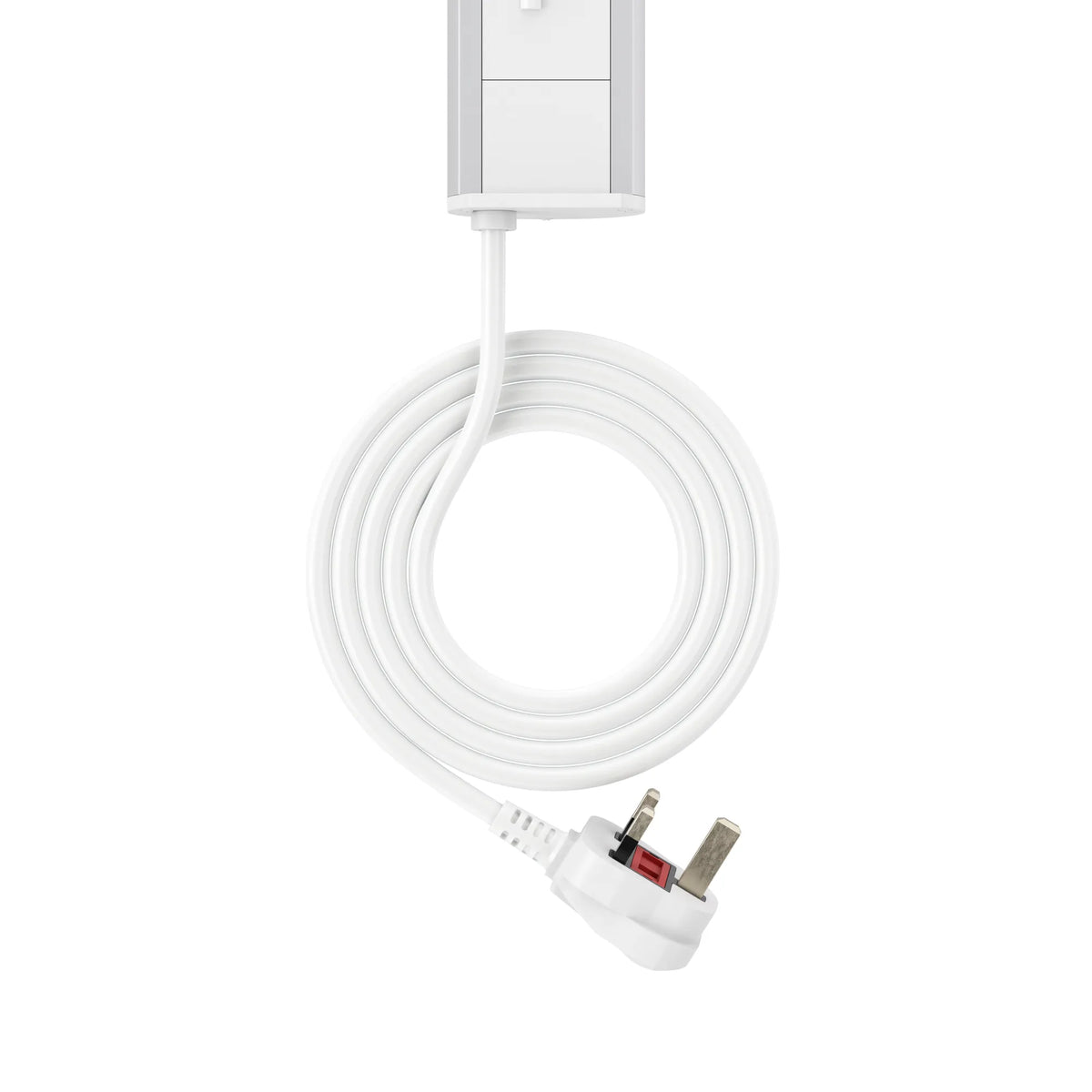

Fitted UK plug
Supplied with a 1.8m lead and fitted UK plug for plug-and-play installation.
Important: Keep the unit, plug and power connection dry. Do not exceed 13A / 3,200W total, and use a qualified electrician for any electrical alteration.

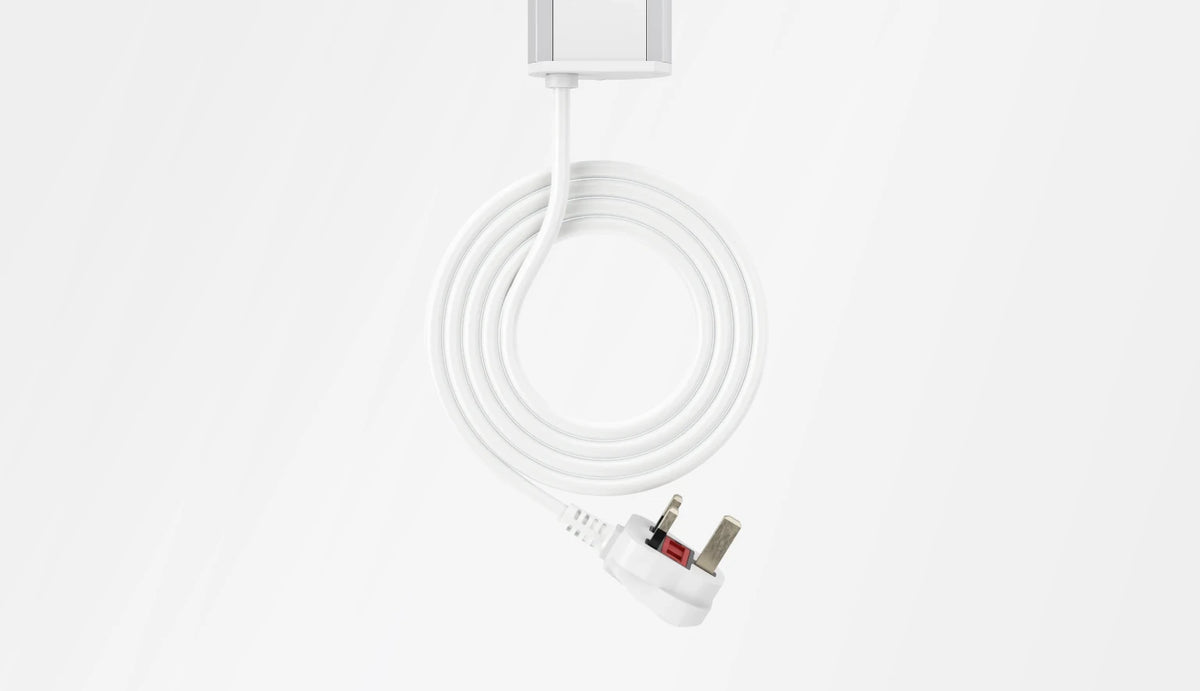

Plug and play
A single 1.8m cable plugs into a UK wall socket.
Designed with safety in mind
Solid construction, plug & play.
90mm nominal opening
Plan a 90mm nominal opening and trial-fit the actual unit before permanent cutting.
Maximum output
240V AC, 50Hz; 13A / 3,200W total maximum. USB-C1 supports up to 67W when used alone; USB-C2 supports up to 20W when used alone.
Quality guaranteed
Pop up power outlets are our bread and butter. We are here to help when needed.
Shipping information
View current United Kingdom delivery options and estimated timeframes.
Pop Up Electrical Sockets UK
Product Description
The V1 range is a compact and sturdy manual-lift retractable power socket device featuring USB charging and a 90mm nominal installation opening; trial-fit the actual unit before permanent cutting.
Features
2x UK Power Sockets, 1x USB-A, 2x USB-C (up to 67W)
1.8m Cable with Fitted UK Plug
Installation
Step 1: Bench-top hole: drill a hole in your bench-top, with the diameter according to the product specifications.

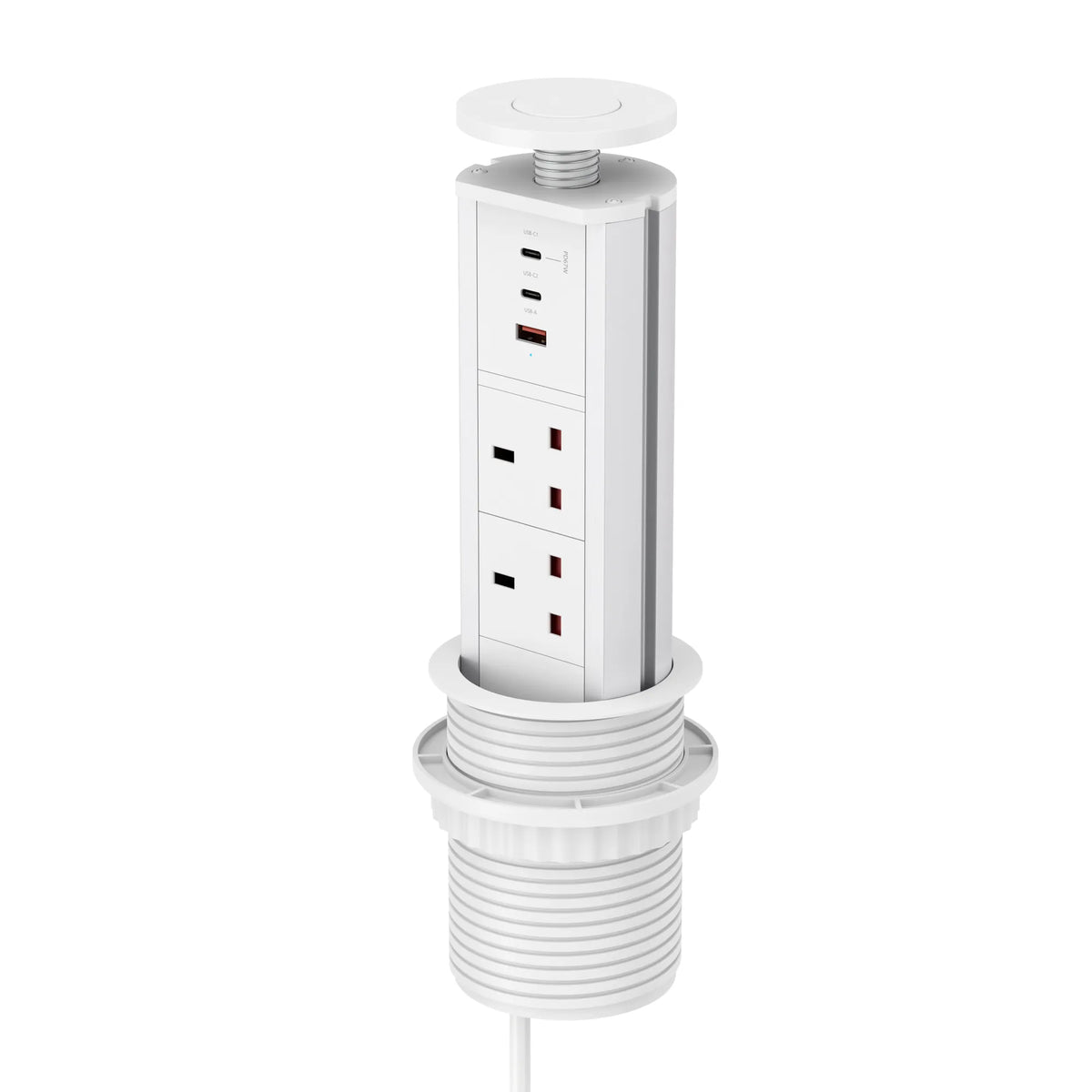

Step 2: Unscrew the locking ring around the body of the unit, and remove it altogether.
Step 3: Place the unit inside the hole in your bench-top.

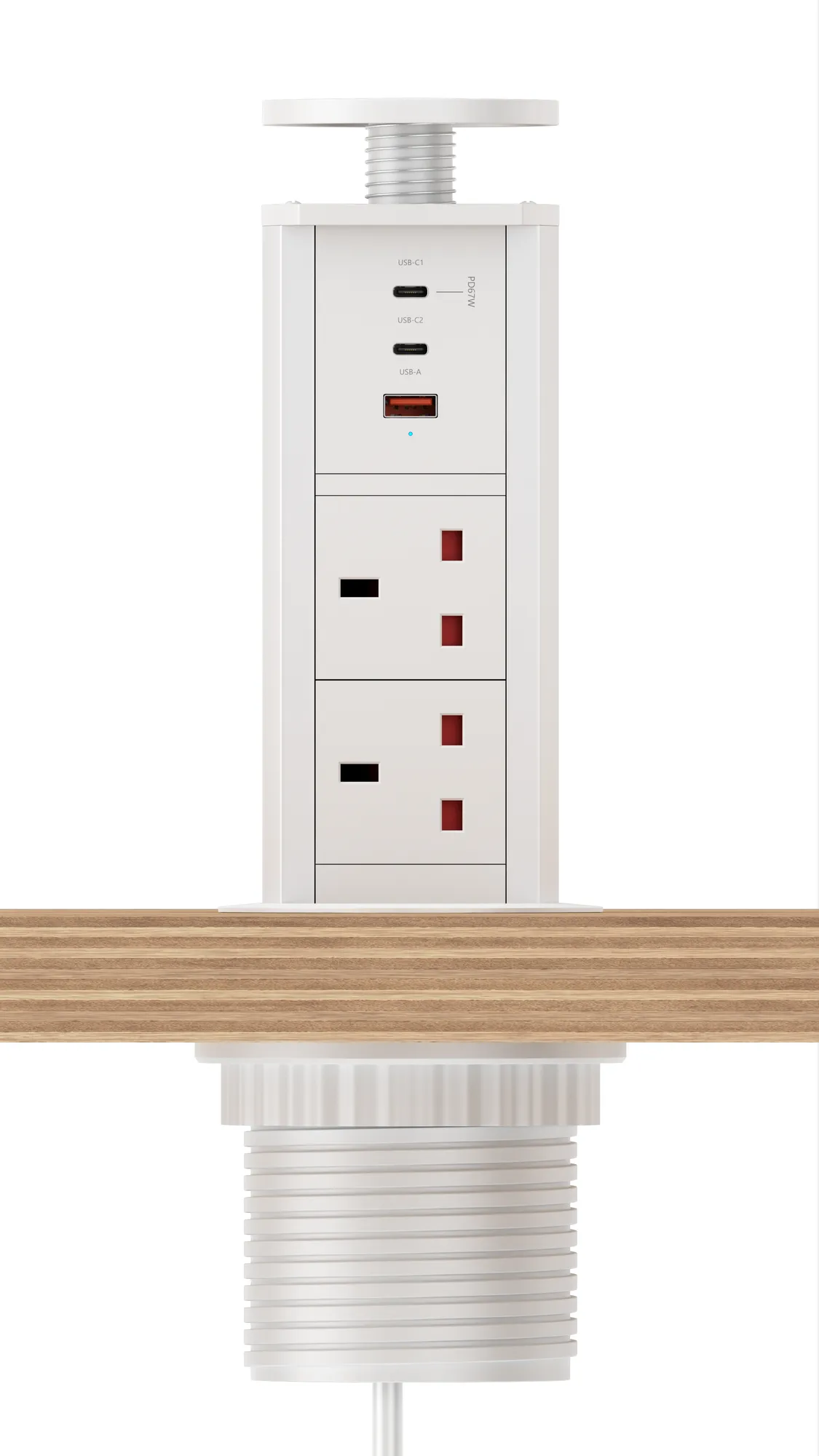

Step 4: Screw back the locking ring around the body of the unit – from the under-side of the bench-top, and tighten it securely.
Step 5: Connect the unit to power by plugging it into a power outlet under the bench-top.
Frequently Asked Questions FAQs
Q. Is this model spring-loaded? Does it automatically come up?
A. No, you are required to pull the unit up manually out of the surface to allow it to ‘pop up’ and be ready for use. Please check other models for automatic raising functionality.
Q. What happens if I have an issue with my product after the warranty period?
A. We’ve designed and tested these units for use over many years withstanding in a normal environment. If your product does develop an issue outside of the warranty period, we do provide an affordable repair or replacement service.
Q. Do you provide an after sales-service, and how do I contact you?
A. Yes, we provide an after-sales service. You can contact us via phone – through our ‘request a call back’ feature, where you give us your name and phone number, and we ring you back as soon as possible.
Q. Do I need a licensed electrician to install this product?
A. Normal installation uses the fitted UK plug and does not require hardwiring. Use a qualified electrician for any electrical alteration.
Q. What is the process in making a warranty claim if I have an issue with my product?
A. If your product malfunctions within the warranty period, we will repair or replace it free of charge. We keep digital records matched with product serial numbers for every order, so you do not need to worry about keeping your receipt.
About Modern Power Solutions
Modern Power Solutions is the leading manufacturer for retractable, pop up power sockets designed for the home and office. Founded in 2006, Modern Power Solutions aims to improve the convenience of power access through product innovation, customer research and a focus on practical product improvement.
Disclaimer
Modern Power Solutions has made every attempt to ensure the accuracy and reliability of the information provided in this document are correct. All information contained in this document is to be used for general guidance only. Modern Power Solutions reserves the right to change, delete or modify the information without notice.
© Modern Power Solutions (Last Updated 11th Dec 2023)

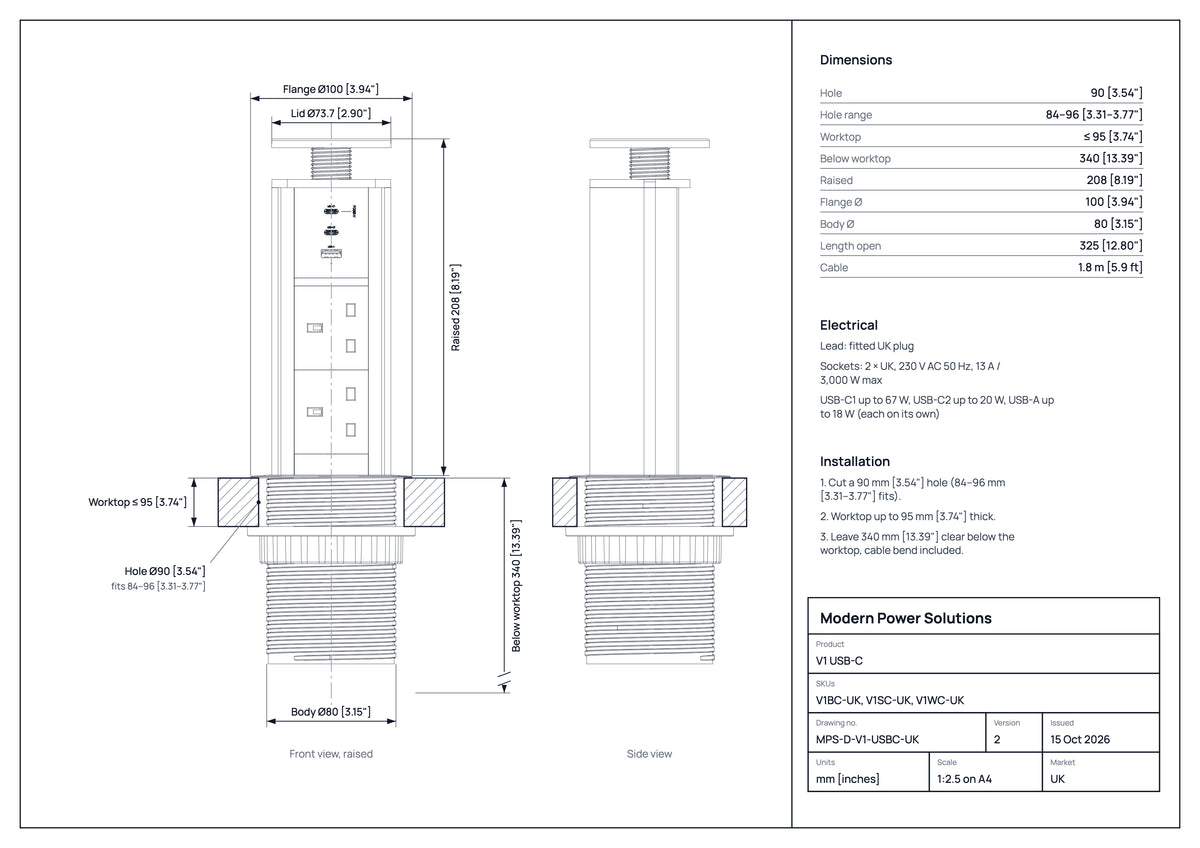

Dimensions and details
Specifications, support and common questions.
Electrical, installation, delivery and support information is consolidated here so it is easier to scan.
Specifications
Electrical
240V AC, 50Hz; 13A / 3,200W total maximum.
Charging
USB-C1: up to 67W. USB-C2: up to 20W. USB-A: up to 18W. Combined output: C1 + C2 45W + 20W; C1 + USB-A 45W + 18W; C2 + USB-A 15W shared; all ports 45W + 15W shared.
Model and finish
V1WC-UK; white top, silver body and white sockets; PVC, ABS and aluminium. 24-month warranty.
Delivery, warranty and support
Technical sheet
Current dimensions, electrical ratings and installation information for the V1WC-UK.
Warranty and after-sales service
Includes a 24-month warranty. Repair or replacement support remains available after the warranty period.
Shipping information
View current United Kingdom delivery options and estimated timeframes.
Frequently asked questions
What opening is required?
90mm nominal opening. Trial-fit before permanent cutting.
How many USB ports are included?
The current version has one USB-A port and two USB-C ports. USB-C1 supports up to 67W when used alone; USB-C2 supports up to 20W when used alone.
Does it need hardwiring?
No hardwiring is required for normal installation because the unit has a fitted UK plug. Use a qualified electrician for any electrical alteration.
